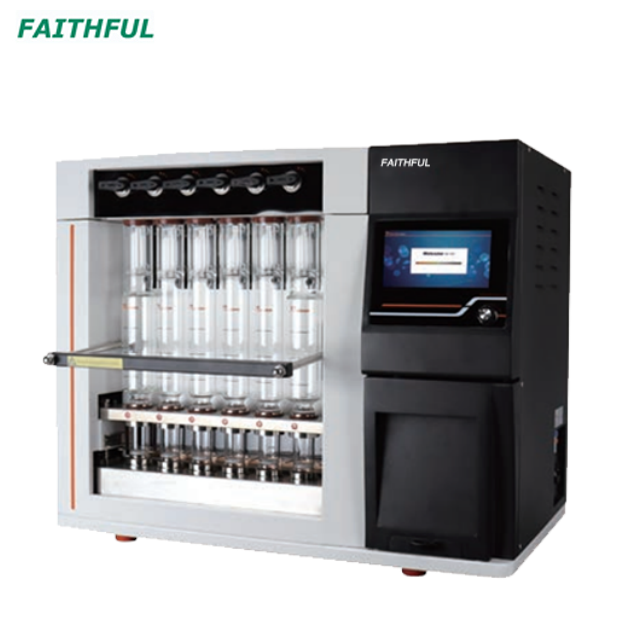

Fiber Analyzer F800

Availability:
Quantity:
  • F800

  • FAITHFUL

F800 Fiber Analyzer is with advanced design, easy operation and flexible application. It can be used in conventional Weende method to analyze crude fiber and Van Soest analysis to wash the fiber. Applies to plant.feed, food and other agricultural products as well as the determination crude fiber,neutral detergent fiber (NDF), acid detergent fiber (ADF), hemicellulose and acid detergent lignin (ADL).


Features and Advantages:

1.Hidden solution barrel pull structure designed to facilitate dosing operation, provides the safest fiber analysis.

2.The corrosive liquid is not in contact with any pump body, to avoid waste discharge pump susceptible to corrosion phenomena.

3.The crucible recoil function is designed to prevent sample in the crucible can not caking filtration.

4.With dosing overflow protection function, to prevent dosing corrosive liquid overflow due to operator error, protect the safety of the operator.

5. Adjust the crucible heating power in time, enabling customers to control the heating rale easily and low down the energy consumption, ECO-friendly.

6.Having a built-in pre-heating function, greatly reduces the whole experi-ment time.

7.Provide five various specifications crucible specifications to meet the needs of different samples for standard configuration.

8.Can delect crude fiber, neutral detergent fiber (NDF).acid detergent fiber(ADF), hemicellulose and acid detergent lignin (ADL).


F800 Fiber Analyzer
Measurement range0.1% ~ 100%
Sample weight0.5g ~ 3g
Repeatability erroCrude Fiber Content below 10%, ≤0.4%
Crude Fiber Content above 10%, ≤1%
Capacity6 pcs/batch
Pre-heating time10-12min
Heating to boiling13-15min
Display7 inches touch color screen
Rated power2.2KW
Power supply220 VAC ±10% 50Hz
Dimension776mm×476mm×644mm
F800-B Cold Extractor
Working Temperature10-40℃
Sample Weight0.5g-3g
Storage Temperature10-50℃
Batch Capacity6 pcs per batch
Relative Humidity0-90%
Power Supply220 VAC 士 10% 50Hz
