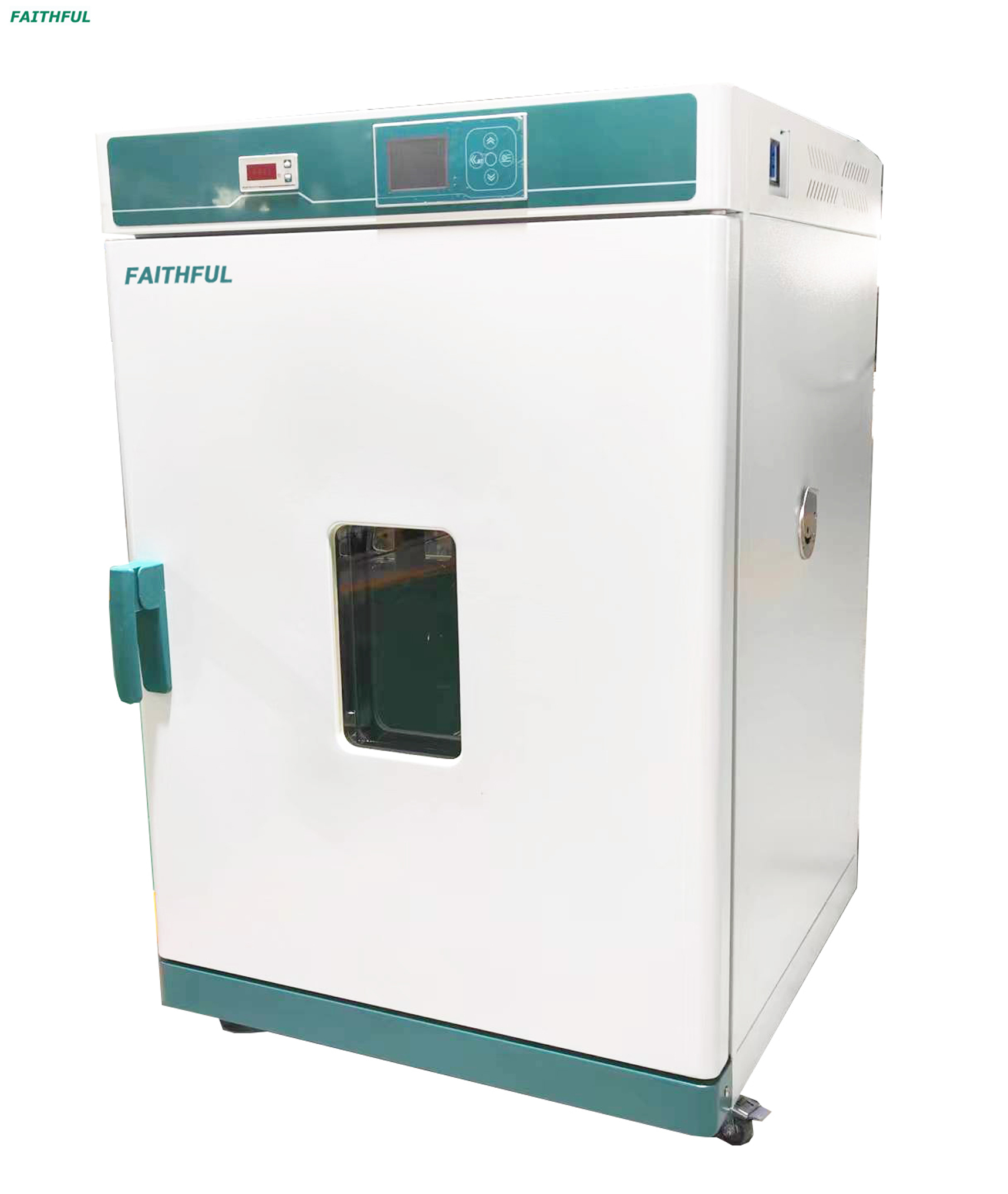

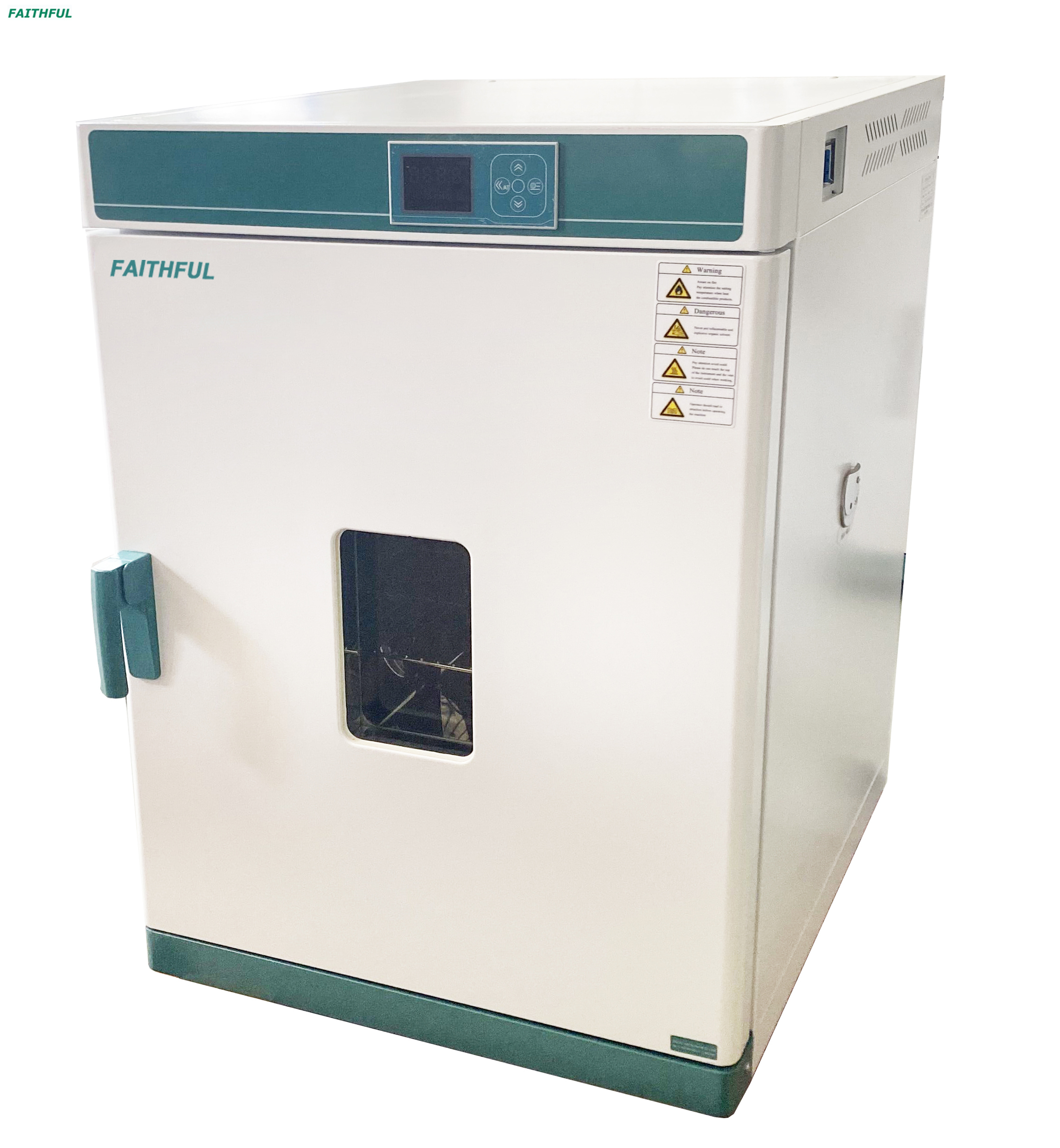

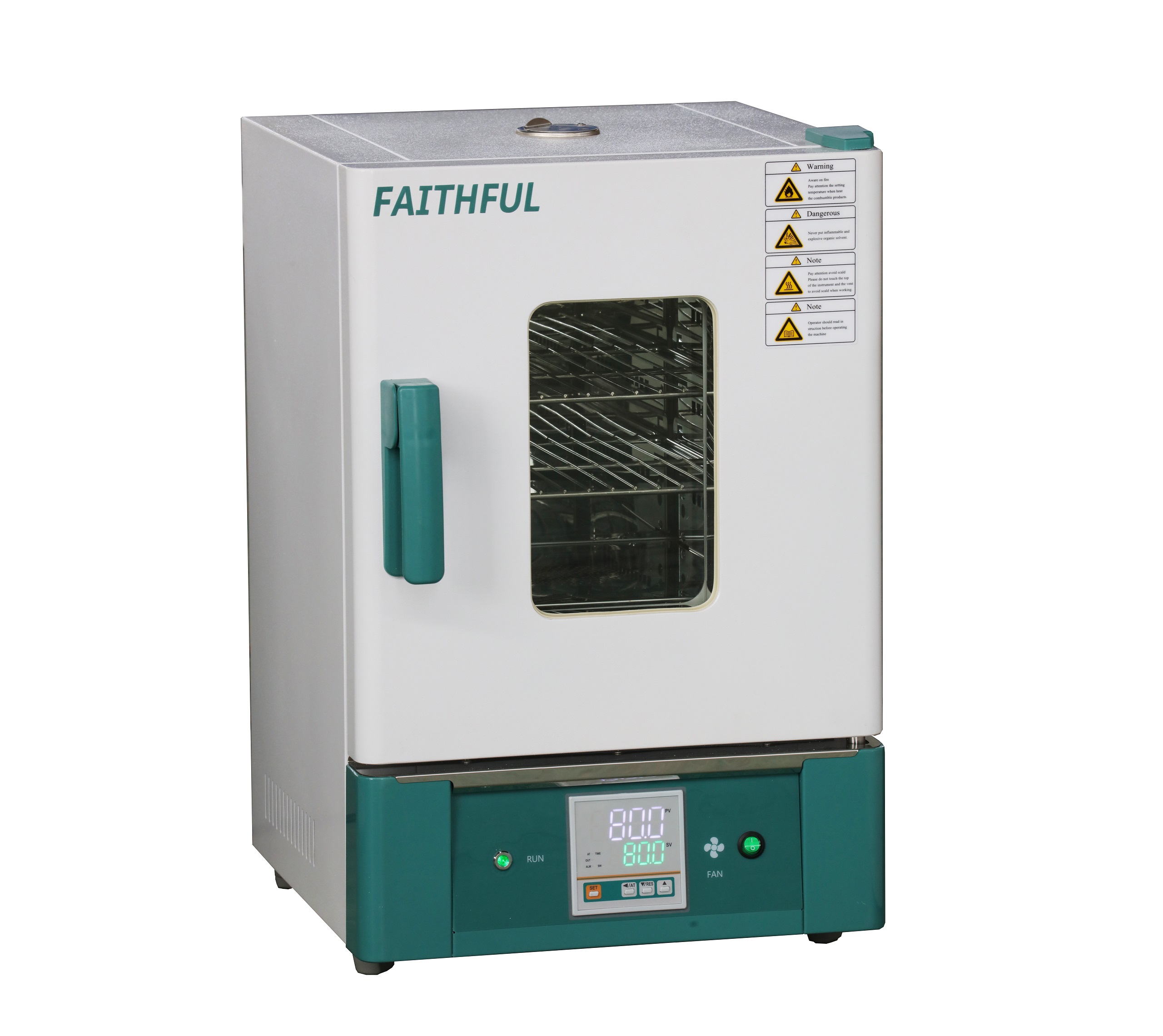

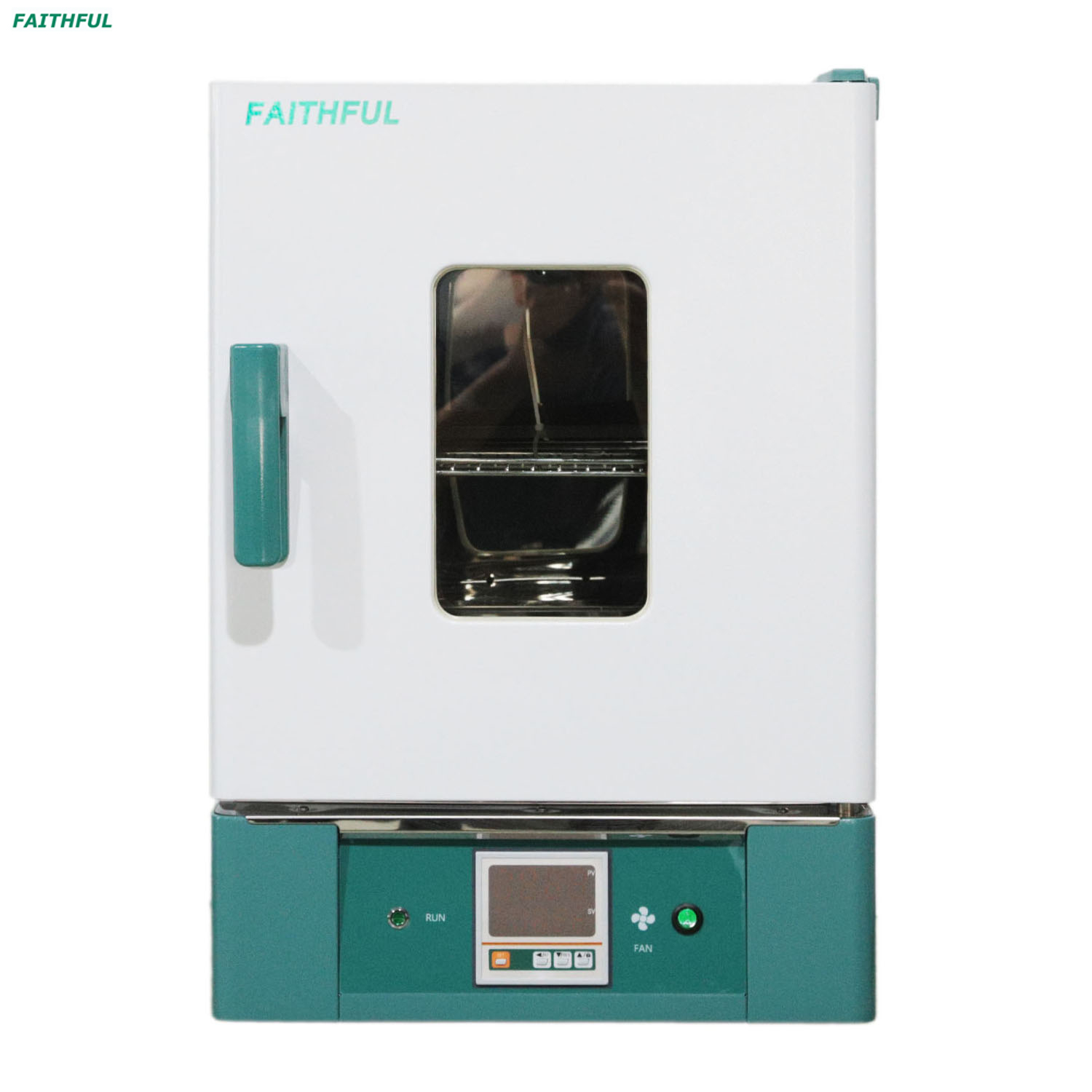

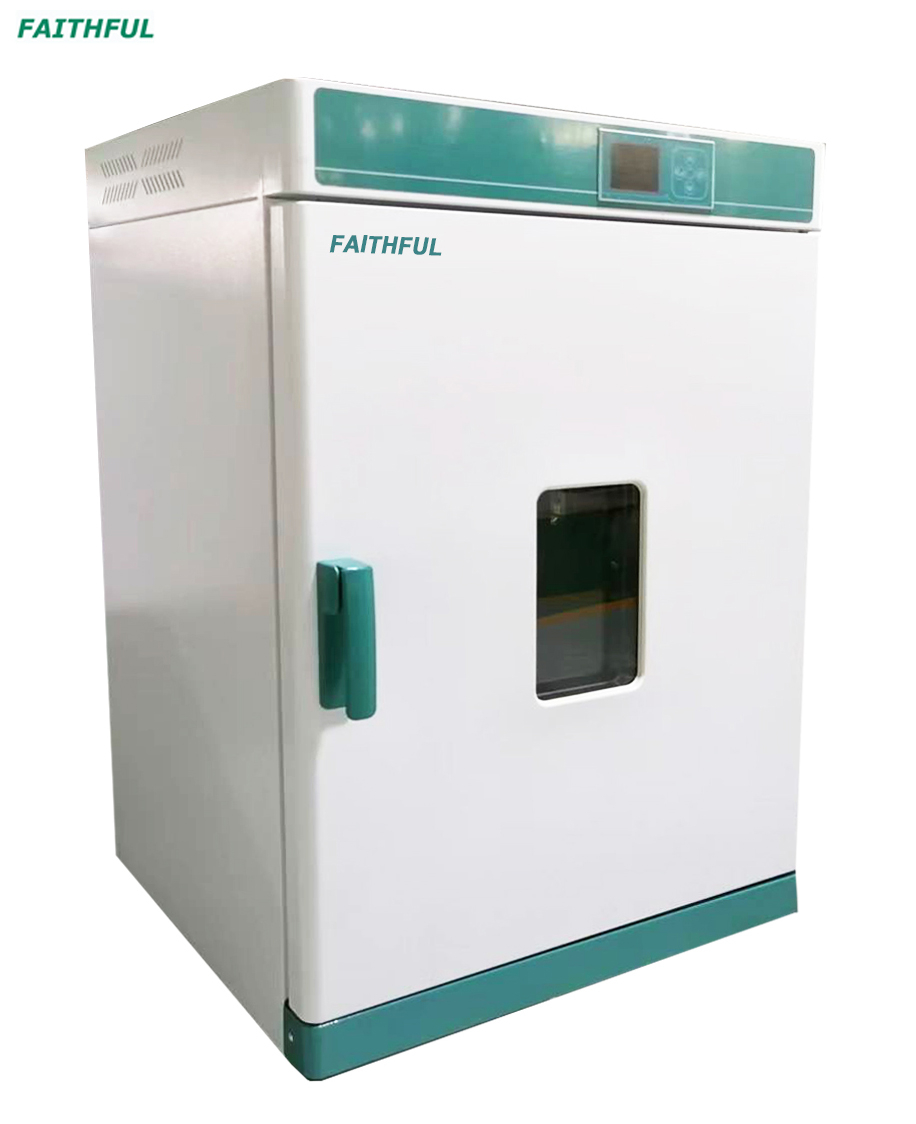

WGL-30B,WGL-45B,WGL-65B,WGL-85B,WGL-125B,WGL-230B,WGL-625B,WGLL-30BE,WGLL-45BE,WGLL-65BE,WGLL-85BE,WGLL-125BE,WGLL-230BE,WGLL-625BE
FAITHFUL
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
WGLL-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
WGLL-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
| Model | WGL- 30B | WGL- 45B | WGL- 65B | WGL- 85B | WGL- 125B | WGL- 230B | WGL- 625B | ||
| WGLL- 30BE | WGLL- 45BE | WGLL- 65BE | WGLL- 85BE | WGLL- 125BE | WGLL- 230BE | WGLL- 625BE | |||
| WGLL- 30BE(304) | WGLL- 45BE(304) | WGLL- 65BE(304) | WGLL- 85BE(304) | WGLL- 125BE(304) | WGLL- 230BE(304) | ||||
| Cycle Mode | Forced convection | ||||||||
| Function | Temp. Range | RT+10-300℃ | |||||||
| Temp. Resolution Ratio | 0.1℃ | ||||||||
| Temp. Motion | ±1℃ | ||||||||
| Temp. Uniformity | ±2.5% | ||||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||||

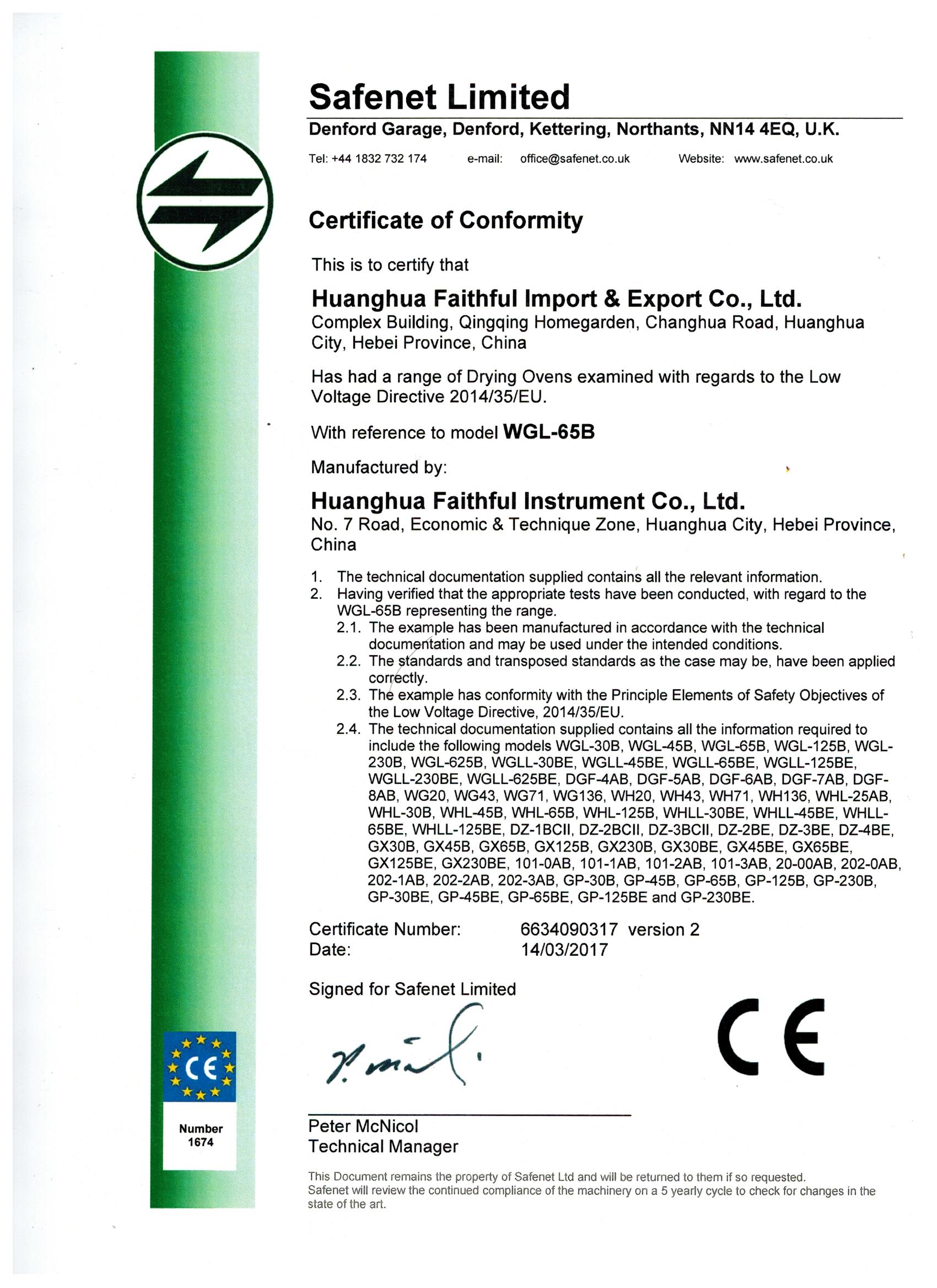

| Insulation layer | High quality rock wool board(with CE) | ||||||||
| Heater | Stainless steel heater | ||||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | 5.0kW | ||
| Exhaust hole | φ35mmtop(with function of test hole) | Rear exhaust | Top double exhaust | ||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||||||
| Temp. setting mode | Touch button setting | ||||||||
| Temp. display mode | B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row | ||||||||
| BE model: Measuring temperature display on upper LCD screen， setting temperature display on the lower row | |||||||||
| Timer | 0-9999min(with timing wait function) | ||||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | ||||||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory | ||||||||
| BE model: High precision digital independent temperature limiter, 4 grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory | |||||||||
| Sensor | pt100 | ||||||||
| Specification | Inner Chamber size (W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 | 660*760 *1250 | |
| Exterior size (W*L*H)(mm) | 450*500 *690 | 490*540 *730 | 540*550 *830 | 590*610 *830 | 640*640 *930 | 735*835*1115 | 974*895*1677 | ||
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885*1287 | 1061*1000*1885 | ||
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | ||
| Max Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | 11 | ||
| Load per rack | 15kg | ||||||||
| Shelf space | 40mm | 100mm | |||||||
| Power rating (50/60HZ) | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 9.0A | AC220V/ 10.5A | AC220V/ 13.6A | AC380V/ 13.2A | ||
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | 150/190 | ||
| Accessory | Shelf | 2 | |||||||
| Shelf frame | 4 | ||||||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller | ||||||||
| Model | WGL- 30B | WGL- 45B | WGL- 65B | WGL- 85B | WGL- 125B | WGL- 230B | WGL- 625B | ||
| WGLL- 30BE | WGLL- 45BE | WGLL- 65BE | WGLL- 85BE | WGLL- 125BE | WGLL- 230BE | WGLL- 625BE | |||
| WGLL- 30BE(304) | WGLL- 45BE(304) | WGLL- 65BE(304) | WGLL- 85BE(304) | WGLL- 125BE(304) | WGLL- 230BE(304) | ||||
| Cycle Mode | Forced convection | ||||||||
| Function | Temp. Range | RT+10-300℃ | |||||||
| Temp. Resolution Ratio | 0.1℃ | ||||||||
| Temp. Motion | ±1℃ | ||||||||
| Temp. Uniformity | ±2.5% | ||||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||||
| Insulation layer | High quality rock wool board(with CE) | ||||||||
| Heater | Stainless steel heater | ||||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | 5.0kW | ||
| Exhaust hole | φ35mmtop(with function of test hole) | Rear exhaust | Top double exhaust | ||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||||||
| Temp. setting mode | Touch button setting | ||||||||
| Temp. display mode | B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row | ||||||||
| BE model: Measuring temperature display on upper LCD screen， setting temperature display on the lower row | |||||||||
| Timer | 0-9999min(with timing wait function) | ||||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | ||||||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory | ||||||||
| BE model: High precision digital independent temperature limiter, 4 grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory | |||||||||
| Sensor | pt100 | ||||||||
| Specification | Inner Chamber size (W*L*H)(mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 | 660*760 *1250 | |
| Exterior size (W*L*H)(mm) | 450*500 *690 | 490*540 *730 | 540*550 *830 | 590*610 *830 | 640*640 *930 | 735*835*1115 | 974*895*1677 | ||
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885*1287 | 1061*1000*1885 | ||
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | ||
| Max Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | 11 | ||
| Load per rack | 15kg | ||||||||
| Shelf space | 40mm | 100mm | |||||||
| Power rating (50/60HZ) | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 9.0A | AC220V/ 10.5A | AC220V/ 13.6A | AC380V/ 13.2A | ||
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | 150/190 | ||
| Accessory | Shelf | 2 | |||||||
| Shelf frame | 4 | ||||||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller | ||||||||

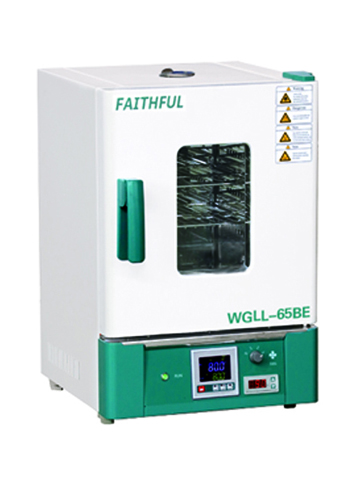

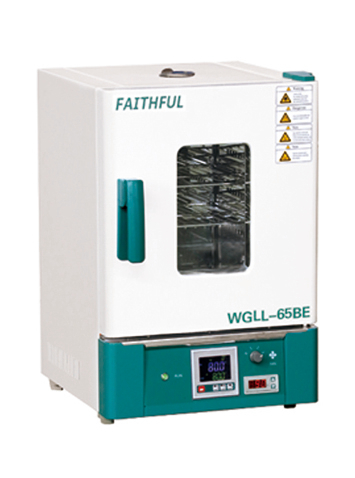

Forced Air Drying Oven WGLL-BE
Operation Video
https://youtube.com/shorts/5lBMm-ky27g?feature=share (WGL Series)
https://youtube.com/shorts/mF_2MAxR0LE?feature=share (WGLL-BE Series)
Forced Air Drying Oven WGLL-BE
Operation Video
https://youtube.com/shorts/5lBMm-ky27g?feature=share (WGL Series)
https://youtube.com/shorts/mF_2MAxR0LE?feature=share (WGLL-BE Series)
