Availability: | |
---|---|
Quantity: | |

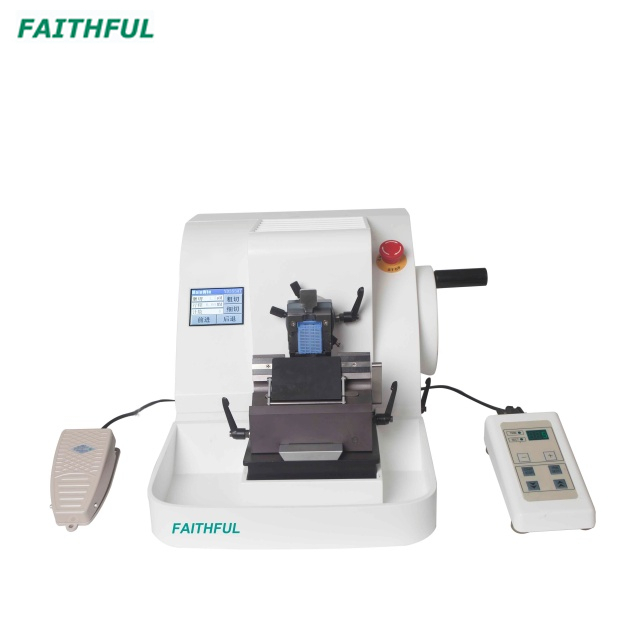

YD-355AT
FAITHFUL
Fully automatic or manual model,allows motorized and manual sectioning.
Adopted Germany stepper Motor and motor drive.
Touch screen.
System of balance of hand wheel force.
Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife.
Blade Carrier for both of High and Low Profile Disposable Blades.
Safety alarm system , overload protection function, sleep mode protection.
Optional Blade carrier which can use Steel Knife or Blade Holder.
Easy operation with Separated Control Panel, Remote control panel set trimming or section thickness , stroke ,cutting speed.
Fully automatic or manual model,allows motorized and manual sectioning.
Adopted Germany stepper Motor and motor drive.
Touch screen.
System of balance of hand wheel force.
Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife.
Blade Carrier for both of High and Low Profile Disposable Blades.
Safety alarm system , overload protection function, sleep mode protection.
Optional Blade carrier which can use Steel Knife or Blade Holder.
Easy operation with Separated Control Panel, Remote control panel set trimming or section thickness , stroke ,cutting speed.
Section thickness range | 0.5- 100μm |
Setting values | From 0.5-2μm in 0.5μm –increments |
Form 2-10μm in 1μm -increments | |
Form 10-20μm in 2μm -increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm increments | |
Trimming section thickness range | 5-500μm |
Cutting speed | 0-300mm/s |
Horizontal specimen stroke | 20 mm |
Vertical specimen stroke | 60mm |
Sample orientation | 8°along the X-Y-axis,rotate 360° |
Precision error | ± 5% |
Maximum section size | 50*45mm |
Voltage and power | 220v/50Hz or 110 v/60Hz |
Net weight | 32kg |
Dimensions incl. tray (L/W/H) | 500mmX320mmX500mm |
Specimen retraction from 0-220um/turn on or off is optional customization | |
Specimen feed speed 1250/s (click) ,2000μm/s(keep pressing) |
Section thickness range | 0.5- 100μm |
Setting values | From 0.5-2μm in 0.5μm –increments |
Form 2-10μm in 1μm -increments | |
Form 10-20μm in 2μm -increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm increments | |
Trimming section thickness range | 5-500μm |
Cutting speed | 0-300mm/s |
Horizontal specimen stroke | 20 mm |
Vertical specimen stroke | 60mm |
Sample orientation | 8°along the X-Y-axis,rotate 360° |
Precision error | ± 5% |
Maximum section size | 50*45mm |
Voltage and power | 220v/50Hz or 110 v/60Hz |
Net weight | 32kg |
Dimensions incl. tray (L/W/H) | 500mmX320mmX500mm |
Specimen retraction from 0-220um/turn on or off is optional customization | |
Specimen feed speed 1250/s (click) ,2000μm/s(keep pressing) |
