HMI T,HMI T-C,HMI T-100,HMI T-100H
FAITHFUL
1. LCD display. It is easy to set and use
2. Small footprint: MiniT sereis are a personal sized that fits in the palm on your hand
3. Simultaneous display actual time, temperature
4. Temperature deflection adjusting meet with different demands
5. Beep-signal/Stop after program completed
6. With DC12V or DC24V power for total portability, beep-signal/stop after program completed
7. Interchangeable aluminum alloy sample blocks provide versatility and allow easy cleaning and disinfecting
1. LCD display. It is easy to set and use
2. Small footprint: MiniT sereis are a personal sized that fits in the palm on your hand
3. Simultaneous display actual time, temperature
4. Temperature deflection adjusting meet with different demands
5. Beep-signal/Stop after program completed
6. With DC12V or DC24V power for total portability, beep-signal/stop after program completed
7. Interchangeable aluminum alloy sample blocks provide versatility and allow easy cleaning and disinfecting
Specifical
Model | HMI T | HMI T-C | HMI T-100 | HMI T-100H |
Temperature control range | RT. +5° C--80° C | RT. +5° C--70° C | RT. +5° C--100° C | RT. +5° C--100° C |
Timer range | 1-999min or 1-999sec | 1-999min or 1-999sec | 1-999min or 1-999sec | 1-999min or 1-999sec |
Temp control accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
Display accuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ |
Heating Time (25 ° C to Max) | ≤12min | ≤20min | ≤15min | ≤15min |
Cooling time (25°C to 0°C) | － | ≤25min | － | － |
Heating Lid | － | － | － | Heating Lid |
Lid's temperature ange | － | － | － | RT. +5°C-100°C |
Dimensions (mm) | 150 x 110 x 100 mm | 162 x 110 x 140 mm | 152 x 120 x 112 mm | 152 x 120 x 112 mm |
Weight | 0.5kg | 0.1kg | 0.8kg | 0.9kg |
Power supply | DC 12V | DC 12V | DC 24V | DC 24V |
Ordering information
No. | Code | Description |

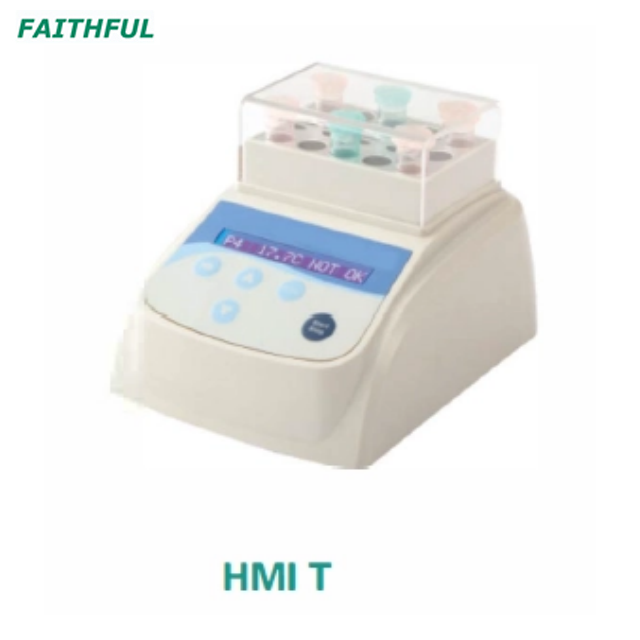

01 | AS-01130-00 | HMI T mini dry bath, DC12V, 40w |

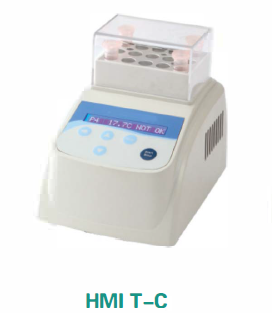

02 | AS-01170-00 | HMI T-C mini dry bath, DC12V, 60w |

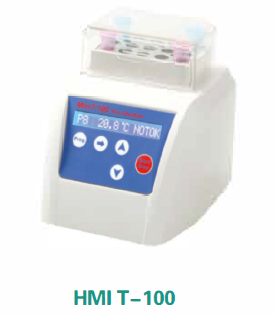

03 | AS-01150-00 | HMI T-100 mini dry bath, DC24V, 40w |

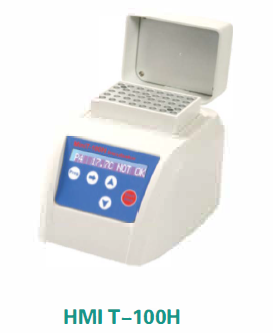

04 | AS-01160-00 | HMI T-100H m皿dry bath, DC24V, 50w |
05 | AS-01220-00 | HMI T-H3 3-in-1 mini dry bath |
06 | AS-01230-00 | HMI T-H2C 3-in-1 m皿dry bath |

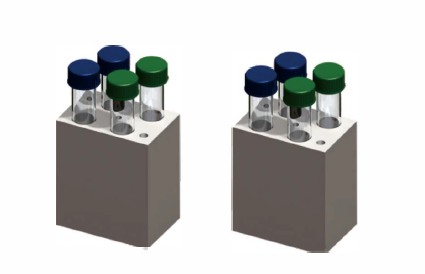

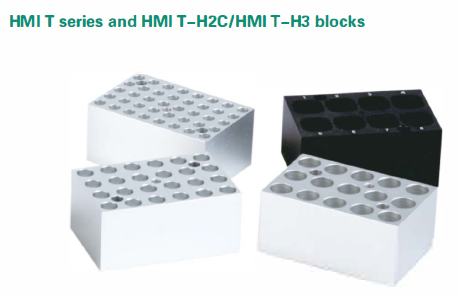

Accessories
No. | Code | Type | Description |
01 | AS-01131-01 | A-HMIT | 40 x 0.2ml tubes |
02 | AS-01131-02 | B-HMIT | 24 x 0.5ml tubes |
03 | AS-01131-03 | C-HMIT | 15 x 1.5ml tubes |
04 | AS-01131-04 | D-HMIT | 15 x 2.0ml tubes |
05 | AS-01131-05 | E-HMIT | 8 x 12.5 x 12 5ml cuvette block |
06 | AS-01131-06 | F-HMIT | 4 x 15ml tubes |
07 | AS-01131-07 | G-HMIT | 2 x 50ml tubes |
08 | AS-01131-99 | Can be customized according to customer demand | |
Specifical
Model | HMI T | HMI T-C | HMI T-100 | HMI T-100H |
Temperature control range | RT. +5° C--80° C | RT. +5° C--70° C | RT. +5° C--100° C | RT. +5° C--100° C |
Timer range | 1-999min or 1-999sec | 1-999min or 1-999sec | 1-999min or 1-999sec | 1-999min or 1-999sec |
Temp control accuracy | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.5℃ |
Display accuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ |
Heating Time (25 ° C to Max) | ≤12min | ≤20min | ≤15min | ≤15min |
Cooling time (25°C to 0°C) | － | ≤25min | － | － |
Heating Lid | － | － | － | Heating Lid |
Lid's temperature ange | － | － | － | RT. +5°C-100°C |
Dimensions (mm) | 150 x 110 x 100 mm | 162 x 110 x 140 mm | 152 x 120 x 112 mm | 152 x 120 x 112 mm |
Weight | 0.5kg | 0.1kg | 0.8kg | 0.9kg |
Power supply | DC 12V | DC 12V | DC 24V | DC 24V |
Ordering information
No. | Code | Description |
01 | AS-01130-00 | HMI T mini dry bath, DC12V, 40w |
02 | AS-01170-00 | HMI T-C mini dry bath, DC12V, 60w |
03 | AS-01150-00 | HMI T-100 mini dry bath, DC24V, 40w |
04 | AS-01160-00 | HMI T-100H m皿dry bath, DC24V, 50w |
05 | AS-01220-00 | HMI T-H3 3-in-1 mini dry bath |
06 | AS-01230-00 | HMI T-H2C 3-in-1 m皿dry bath |
Accessories
No. | Code | Type | Description |
01 | AS-01131-01 | A-HMIT | 40 x 0.2ml tubes |
02 | AS-01131-02 | B-HMIT | 24 x 0.5ml tubes |
03 | AS-01131-03 | C-HMIT | 15 x 1.5ml tubes |
04 | AS-01131-04 | D-HMIT | 15 x 2.0ml tubes |
05 | AS-01131-05 | E-HMIT | 8 x 12.5 x 12 5ml cuvette block |
06 | AS-01131-06 | F-HMIT | 4 x 15ml tubes |
07 | AS-01131-07 | G-HMIT | 2 x 50ml tubes |
08 | AS-01131-99 | Can be customized according to customer demand | |
