HMS Micro-Spectrophotometer

Availability:
Quantity:
  • HMS-100,HMS-300,HMS-400

  • FAITHFUL

1. User-friendly software, easy to use

    It is easy to use, free software updates are available

2.  Micro-volumes measuring

     Only require 0.5-2µ1 sample to accurate determinate of nucleic acids, proteins

3. Fast and easy measurements

    Turn on and instantly measure without lamp warm up time; Easy measurement within 8 sec

4. Long life's Xenon flash lamp

    Xenon flash lamp, 10 flashes, up to 10 years, no cells or cuvettes, no dilutions and expensive consumables

5. No consumables required

    Direct microvolume measurements from 1-2µL of sample. Eliminates the need for expensive accessories

6. No computer required and with touch screen (Nano-300, Nano-400)

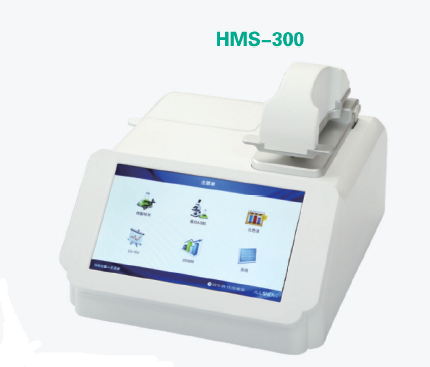

    Nano-300 is equipped with Android system operation

7. The Nano-100 / Nano-300 are full range of wavelength (200-SOOnm) detection ability;

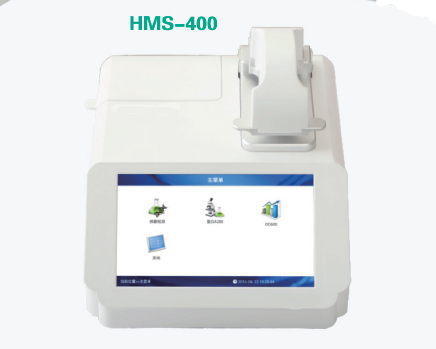

    The Nano-400 is a basic UV spectrophotometer specifically designed (only three types

    of wavelength 230nm,260nm and 280nm) for nucleic acids and proteins


Type

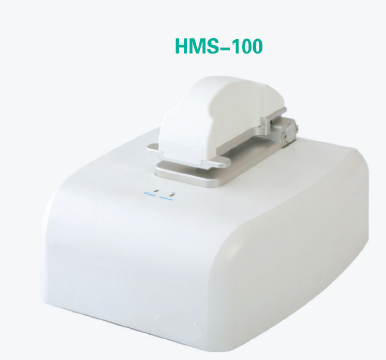

HMS-100

HMS-300

HMS-400

Wavelength Range

200-800nm

 200-800nm

230nm,260nm,280nm

Minimum Sample Size

0.5-2.0I

0.5-2.0μI

0.5-2.0μl

Path Length

0.2mm(High concentration)1.0mm (Ordinary concentration)

0.2mm (High concentration)1.0mm (Ordinary concentration)

0.2mm (High concentration)1.0mm (Ordinary concentration)

Light Source

Xenon flash lamp

Xenon flash lamp

Xenon flash lamp

Detector Type

3864-Element linear CCD array

3864-Element linear CCD array

UV-sillion photocell

Wavelength Accuracy

1nm

1nm

-

Spectral Resolution

3nm (FWHM atHg546nm)

≤3nm (FWHMat Hg546nm)

-

Absorbance Precision

0.003Abs

0.003Abs

0.003Abs

Absorbance Accuracy

1% (7.332Abs at 260nm)

1%(7.332Abs at 260nm)

1%(7.332Abs at 260nm)

Absorbance Range

0.02-90A

0.02-100A

0.02-80A

Detects Nucleic Acid up to

2-4500ng/ul(dsDNA)

10-5000ng/ul(dsDNA)

10-4000ng/ul(dsDNA)

Measurement Time

<8S

<6S

<15S

Data Output

Connect PC

USB

USB

Sample Pedestal Material

Aluminum alloy and Quartz fiber

Aluminum alloy and Quartz fiber

Aluminum alloy and Quartz fiber

Operating Voltage

24V DC

24V DC

24V DC

Operating Power Consumption

20W

40W

25W

Standby Power Consumption

5W

5W

5W

Dimension (W x D x H)mm

200x250x166

210x268x181

210x280x181

Weight

2.6kg

3.6kg

3.6kg

Software Compatibility

WinXP,Win7,Win8

Android System

Android System

OD600nm Measurement

-

-

-

Light Source

-

LED

LED

Wavelength Range

-

600±8nm

600±8nm

Absorbance Range

-

0-4A

0-4A
