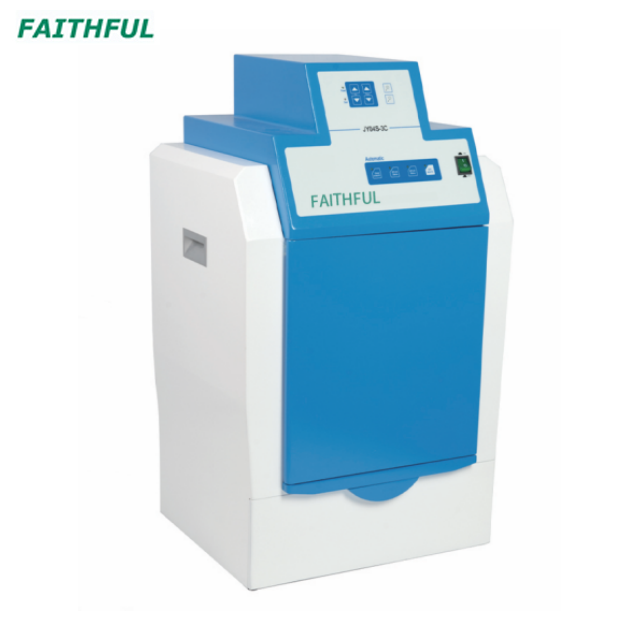

High Resolution Gel Documentation Imaging System

Availability:
Quantity:
  • FSF04S-3C, FSF04S-3E

  • FAITHFUL

● CCD with lower lux and high-resolution,easy to get dim stripes and real-time browse,whole-screen display and simple to operate:

● Six time zoom lens and simple to enlarge and shrink gel photos.

● The center position indicator,which can ensure the gel is placed in the center position.

Intelligent control box:

● You can realize the control of the zoom,focus,aperture,UV light and white light through panel key.

● Safety function for your eyes that automatically shuts down the UV light

when the door is opened and reactivates the UV light when the door is shut.

● Timed shut down:The UV light protection system automatically shuts


Model

FSF04S-3C

FSF04S-3E

Effective pixels

1280×1024

2560×1920

Pixel density

10 bit

10 bit

Pixel size

54×5.4(um)

54×5.4(um)

Resolution

1.4 megapixels

5.0 megapixels

Signal to noise ratio

≥56db

≥56db

Sensitivity

Can detect the double chain DNA of staining below 2

Can detect the double chain DNA of staining below 2

Camera

low illumination and high resolution digital CCD

low illumination and high resolution digital CCD

Zoom lens

F=1:1.2,2/3 inch 6 times zoom lens

F=1:1.2,2/3 inch 6 times zoom lens

Filter

590(nm)

590(nm)

UV light transmission area(W×L)

250×200(mm)

250×200(mm)

Visible light transmittance area(W×L)

250×210(mm)

250×210(mm)

Transmission UV wavelength

302(nm)

302(nm)

Reflectance UV wavelength

254,365(nm)

254,365(nm)

Transmission UV lamppower

302nm(8W)

302nm(8W)

Reflectance UV lamp power

254nm(11W),365nm(11W)

254nm(11W),365nm(11W)

Volume(L×W×H)

470×405×820(mm)

470×405×820(mm)

Weight

29.0kg

29.0kg
