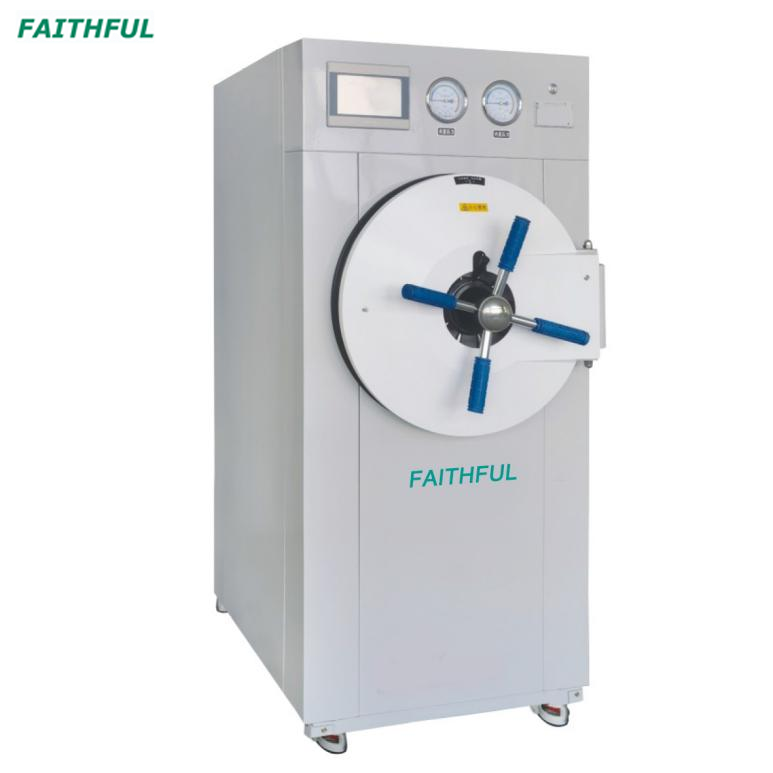

Horizontal Pulse Vacuum Steam Sterilizer FSF-YV

Availability:
Quantity:
  • FSF-150YDA FSF-200YDA FSF-280YDA FSF-400YDA FSF-500YDA

  • FAITHFUL

Product Description

1. Automatically controlled the sterilizing process.

2.  With three or more pulsating vacuums,.

3.  Equipped with a steam generator, with a set of mobile sterilization trays.

4. Which is composed of a sterilization chamber and a jacket, and capable of deep drying.

5. With Bowie&Dick test function for steam penetration test. Automatic fault detection is also enabled.

6.Over-temperature, over-pressure auto-protect,Auto Power-off for Water Depletion.

7.The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn't close well.

8. The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

9. The chamber of the sterilizer is made of stainless steel.


Model

FSF-100YV

FSF-150YV

FSF-200YV

FSF-300YV

Sterilizing Chamber Volume

100L

Φ440 × 670mm

150L

Φ440 × 1000mm

200L

Φ515×1000mm

300L

Φ600 ×1080mm

Design Pressure

0.3MPa

Design Temperature

150℃

Max.Working Pressure

0.25MPa

Max.Working Temperature

138℃

Time for Sterilization

0-99min

Time for Drying

0-99min

Heat Average

≤± 2℃

Vacuum Limit

-0.08MPa

Power

10KW/AC380V.50Hz

10KW/AC380V.50Hz

10KW/AC380V.50Hz

13KW/AC380V.50Hz

Dimension(mm)

1400 × 660 × 1640

1400 × 660 × 1640

1400 × 750 × 1740

1520× 850 × 1850

Transport Dimension(mm)

1560 × 820 × 1820

1560 × 820× 1820

1560 × 910× 1880

1680 ×1080×2100

G.W/N.W

430kg /376kg

458kg /404kg

505kg /440kg

613kg /528kg
