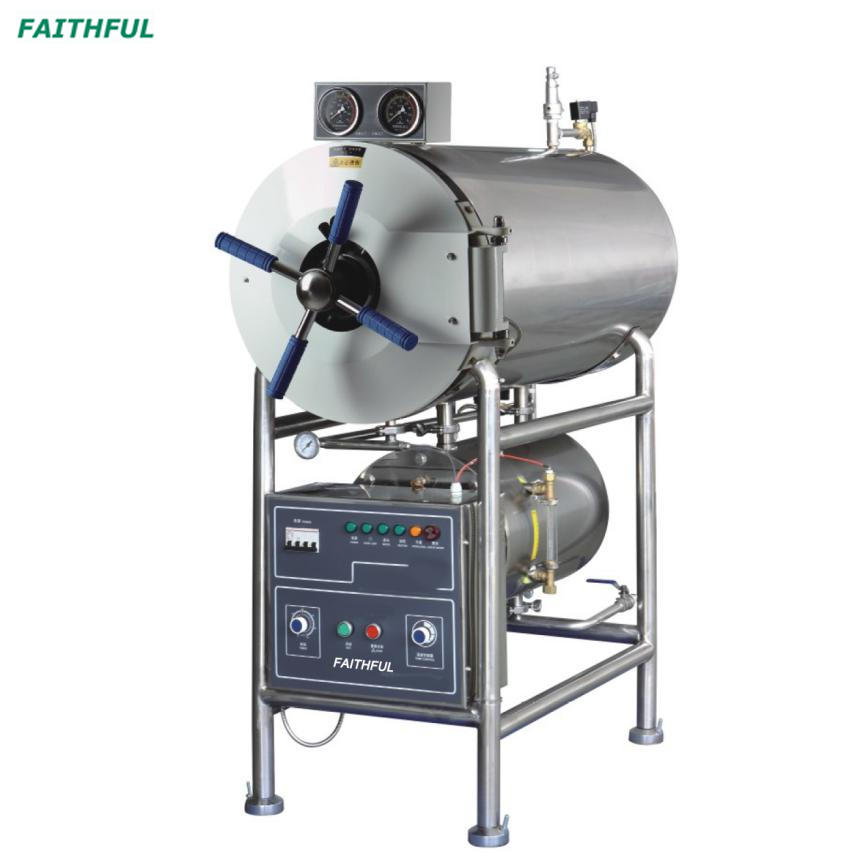

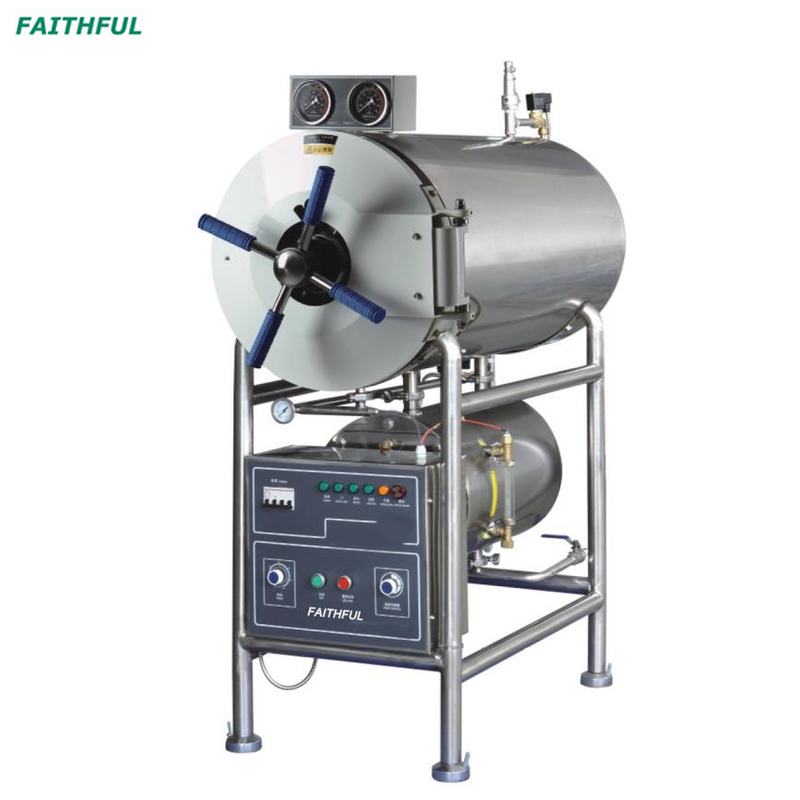

Horizontal cylindrical pressure steam sterilizer FSF-YDC


Product Description

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5. The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. Fully stainless steel structure.

Sterilizing chamber150L200L280L400L
working pressure0.22MPa
working temperature134
Adjustment of40-  134
Time of sterilization0-99  min
Time of drying0-99  min
Heat average≤±2
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz18KW/380V 50Hz
Transport dimension1550×750×18501560×820×18501680×920×21001600×1050×2100
G.W/N.W320/240 KG350/260 KG465/365 KG530/420 KG
