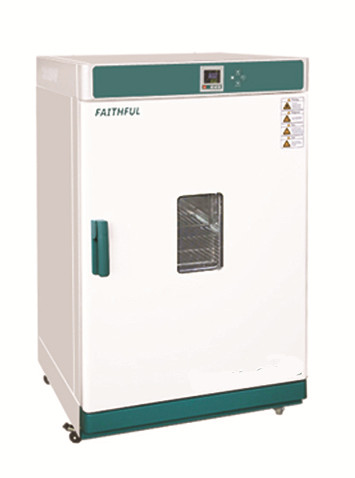

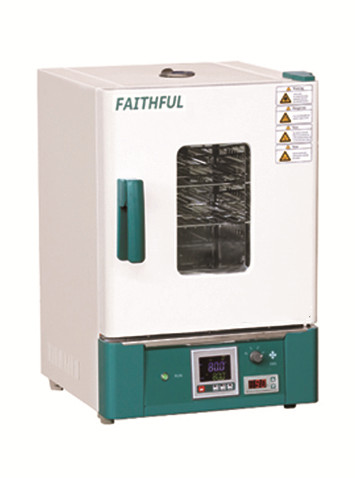

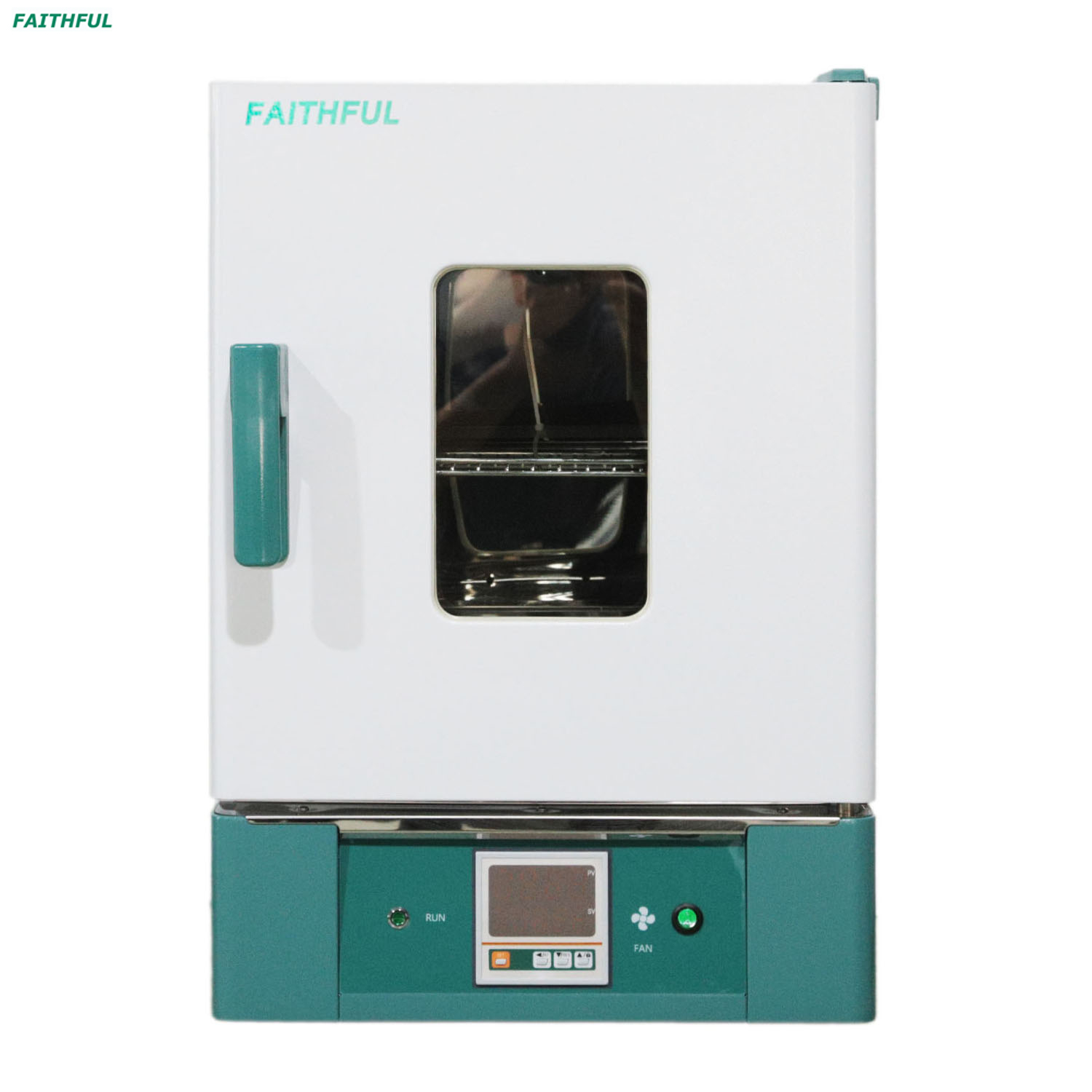

GX-30B,GX-45B,GX-65B,GX-85B,GX-125B,GX-230B,GX-30BE,GX-45BE,GX-65BE,GX-85BE,GX-125BE,GX-230BE
FAITHFUL
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
GXBE series have the following characteristics other than the above functions.
1. LCD temperature controller.
2.4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. high precision digital independent temperature limiter.
5.304: SUS304 Stainless Steel Body.
Product characteristic:
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
GXBE series have the following characteristics other than the above functions.
1. LCD temperature controller.
2.4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. high precision digital independent temperature limiter.
5.304: SUS304 Stainless Steel Body.

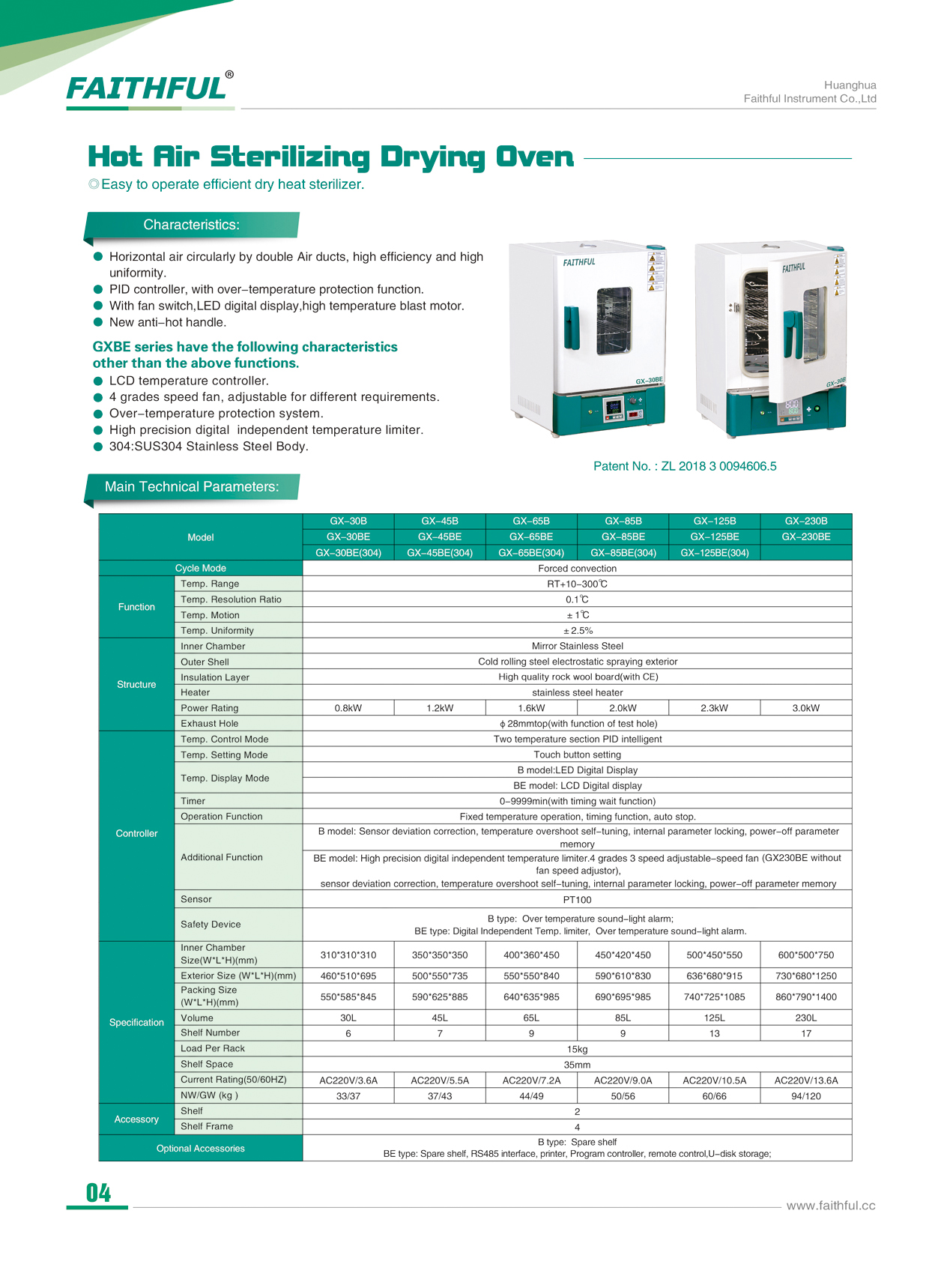

| Model | GX-30B | GX-45B | GX-65B | GX-85B | GX-125B | GX-230B | |
| GX-30BE | GX-45BE | GX-65BE | GX-85BE | GX-125BE | GX-230BE | ||
| GX-30BE(304) | GX-45BE(304) | GX-65BE(304) | GX-85BE(304) | GX-125BE(304) | |||
| Cycle Mode | Forced convection | ||||||
| Function | Temp. range | RT+10-300℃ | |||||
| Temp. Resolution Ratio | 0.1℃ | ||||||
| Temp. Motion | ±1℃ | ||||||
| Temp. Uniformity | ±2.5% | ||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
| Insulation layer | High quaility rock wool board (with CE) | ||||||
| Heater | stainless steel heater | ||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | |
| Exhaust hole | φ35mm top(with function of test hole) | ||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||||
| Temp. setting mode | Touch button setting | ||||||
| Temp. display mode | B model:LED Digital Display | ||||||
| BE model: LCD Digital display | |||||||
| Timer | 0-9999min(with timing wait function) | ||||||
| Operation function | Fixed temperature operation, fixed timing function, auto stop. | ||||||
| Additional Function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| BE model: High precision digital independent temperature limiter, 4 grades 3 speed adjustable-speed fan (GX230BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||
| Sensor | Pt100 | ||||||
| Safety Device | B type: Over temperature sound-light alarm; BE type: Digital Independent Temp. limiter. over temperature sound-light alarm. | ||||||
| Specification | Inner Chamber size(W*L*H) (mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 |
| Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | 735*835 *1115 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885 *1287 | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | |
| Load per rack | 15kg | ||||||
| Shelf space | 40mm | ||||||
| Current rating (50/60HZ) | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 9.0A | AC220V/ 10.5A | AC220V/ 13.6A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
| Accessory | Shelf | 2 | |||||
| Shelf frame | 4 | ||||||
| optional accessories | B model: Spare shelf; BE model: Spare shelf, RS485 interface, printer, program controller, U-disk storage; 3.5-inch color touch screen temperature controller | ||||||
| Model | GX-30B | GX-45B | GX-65B | GX-85B | GX-125B | GX-230B | |
| GX-30BE | GX-45BE | GX-65BE | GX-85BE | GX-125BE | GX-230BE | ||
| GX-30BE(304) | GX-45BE(304) | GX-65BE(304) | GX-85BE(304) | GX-125BE(304) | |||
| Cycle Mode | Forced convection | ||||||
| Function | Temp. range | RT+10-300℃ | |||||
| Temp. Resolution Ratio | 0.1℃ | ||||||
| Temp. Motion | ±1℃ | ||||||
| Temp. Uniformity | ±2.5% | ||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||
| Insulation layer | High quaility rock wool board (with CE) | ||||||
| Heater | stainless steel heater | ||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | |
| Exhaust hole | φ35mm top(with function of test hole) | ||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||||
| Temp. setting mode | Touch button setting | ||||||
| Temp. display mode | B model:LED Digital Display | ||||||
| BE model: LCD Digital display | |||||||
| Timer | 0-9999min(with timing wait function) | ||||||
| Operation function | Fixed temperature operation, fixed timing function, auto stop. | ||||||
| Additional Function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| BE model: High precision digital independent temperature limiter, 4 grades 3 speed adjustable-speed fan (GX230BE without fan speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||
| Sensor | Pt100 | ||||||
| Safety Device | B type: Over temperature sound-light alarm; BE type: Digital Independent Temp. limiter. over temperature sound-light alarm. | ||||||
| Specification | Inner Chamber size(W*L*H) (mm) | 310*310 *310 | 350*350 *350 | 400*360 *450 | 450*420 *450 | 500*450 *550 | 600*500 *750 |
| Exterior size (W*L*H)(mm) | 460*510 *695 | 500*550 *735 | 550*550 *840 | 590*610 *830 | 636*680 *915 | 735*835 *1115 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885 *1287 | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | |
| Load per rack | 15kg | ||||||
| Shelf space | 40mm | ||||||
| Current rating (50/60HZ) | AC220V/ 3.6A | AC220V/ 5.5A | AC220V/ 7.2A | AC220V/ 9.0A | AC220V/ 10.5A | AC220V/ 13.6A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | |
| Accessory | Shelf | 2 | |||||
| Shelf frame | 4 | ||||||
| optional accessories | B model: Spare shelf; BE model: Spare shelf, RS485 interface, printer, program controller, U-disk storage; 3.5-inch color touch screen temperature controller | ||||||
