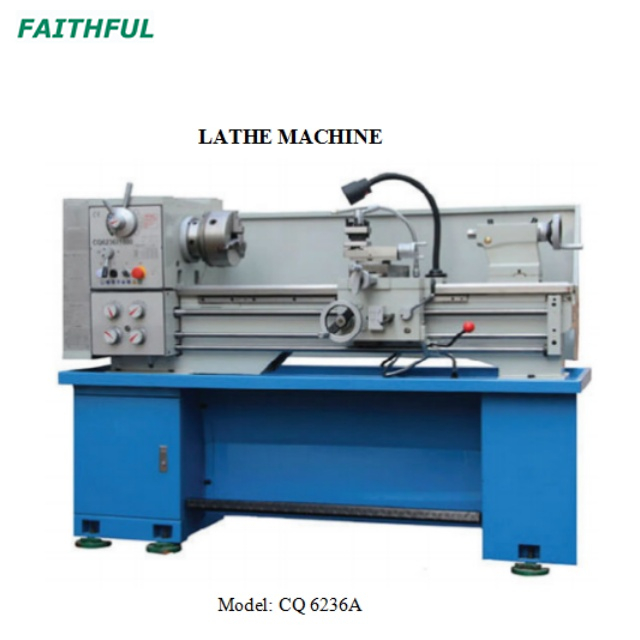

Specification | CQ 6236A |
swing over machine bed | 360mm |
swing over cross slide | 210mm |
Distance between centers | 750mm |
Turning Length | 700-750mm |
Width of bed | 218-260mm |
Work Spindle |
Spindle diameter in front bearing | 60mm |
Spindle bore and nose | 35/38mm |
Taper bore according to DIN 228 (shortened) | MT-5/MT-3/MT-6/MT-4 |
Max. diameter of face plate and clamping disk | 315mm |
Tool Slide |
Guide Length of carriage | 350-365 |
Graduation of Longitudinal scale on apron box hand wheel | 0.2mm |
Cross slide travel | 140mm |
Graduation of scale at cross slide spindle | 0.025mm |
Width of cross-slide | 118-140mm |
Compound slide travel | 68-100mm |
Graduation of scale on compound slide spindle | 0.05mm |
Width of top slide | 110mm |
Tailstock with hand wheel |
Stroke of quill | 100-120mm |
Diameter of center sleeve | 50mm |
Taper socket DIN 228 | MY3 |
Scale graduation on center sleeve | 1mm |
Scale ring at tail stock spindle, scale | 0.05mm |
Graduation |
Cross Travel := | 10MM |
Number of speed range | 2x8 |
Speed range A: | (50-350) rev/min 8 Speeds |
Speed range B | (250-2000) Rev/min 8 speed |
Thread pitches with standard change gear set BS threads | 4-76 T.P.I or 4-56 TPI |
All standardized metric threads selectable except for | 0.45 and 405mm 0.25-16mm |
Lead Screw pitch | 6mm |
Sound power level according to Din | 45635-16max 93 db (a) |
