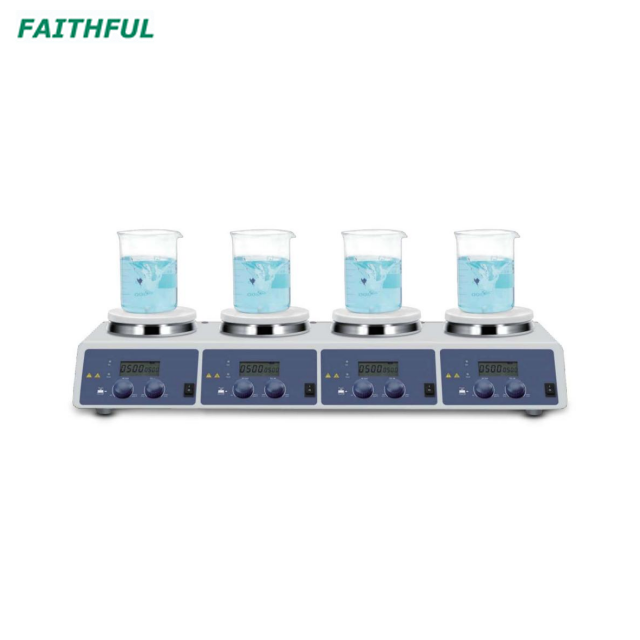

MS-H340-S4
FAITHFUL
Independent heating and stirring control for each position
LCD display shows real-time temperature and speed
PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
External temperature sensor (PT1000) with accuracy 0.2℃Overheating protection temperature at 420℃
Stainless steel work plate with ceramic coating provides good chemical resistance
Wide variety of accessories available to choose from.
Independent heating and stirring control for each position
LCD display shows real-time temperature and speed
PID controller ensures a precise and stable heating process (maximum temperature up to 340℃)
Brushless DC motor is quiet, reliable & maintenance free, and provides more powerful speed control
External temperature sensor (PT1000) with accuracy 0.2℃Overheating protection temperature at 420℃
Stainless steel work plate with ceramic coating provides good chemical resistance
Wide variety of accessories available to choose from.
Model | MS-H340-S4 |
Work plate dimension | Ø135mm(5inch) x4 |
Plate material | Stainless steel with ceramic coating |
Motor type | Brushless DC motor |
Stirring positions | 4 |
Max. stirring quantity of single position (H2O) | 10L x 4 |
Max. magnetic bar | 40mm |
Speed range | 200-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Control accuracy of sensor | ±20rpm |
Temperature range | 25-340℃ |
Over temperature protection | 420℃ |
Temperature display accuracy | ±0.1℃ |
External temperature sensor | PT1000( accuracy±0.2℃ ) |
IP Protection class | IP20 |
Motor input power | 1.8Wx4 |
Power | 515Wx4 |
Heating Power | 500Wx4 |
Voltage,Frequency | 100-120V,60Hz; 200-240V,50 Hz |
Dimensions[WxDxH] | 698x270x128mm |
Weight | 9.5kg |
Permissible ambient temperature | 5~40℃ |
Permissible relative humidity | Permissible relative humidity |
Model | MS-H340-S4 |
Work plate dimension | Ø135mm(5inch) x4 |
Plate material | Stainless steel with ceramic coating |
Motor type | Brushless DC motor |
Stirring positions | 4 |
Max. stirring quantity of single position (H2O) | 10L x 4 |
Max. magnetic bar | 40mm |
Speed range | 200-1500rpm |
Speed display | LCD |
Temperature display | LCD |
Control accuracy of sensor | ±20rpm |
Temperature range | 25-340℃ |
Over temperature protection | 420℃ |
Temperature display accuracy | ±0.1℃ |
External temperature sensor | PT1000( accuracy±0.2℃ ) |
IP Protection class | IP20 |
Motor input power | 1.8Wx4 |
Power | 515Wx4 |
Heating Power | 500Wx4 |
Voltage,Frequency | 100-120V,60Hz; 200-240V,50 Hz |
Dimensions[WxDxH] | 698x270x128mm |
Weight | 9.5kg |
Permissible ambient temperature | 5~40℃ |
Permissible relative humidity | Permissible relative humidity |
