 Laminar Flow Cabinet (Vertical Type)
Home » Product » Lab Equipment » Laminar Flow Cabinet » Laminar Flow Cabinet(Vertical Type) »  Laminar Flow Cabinet (Vertical Type)

Product Classification

Contact Us

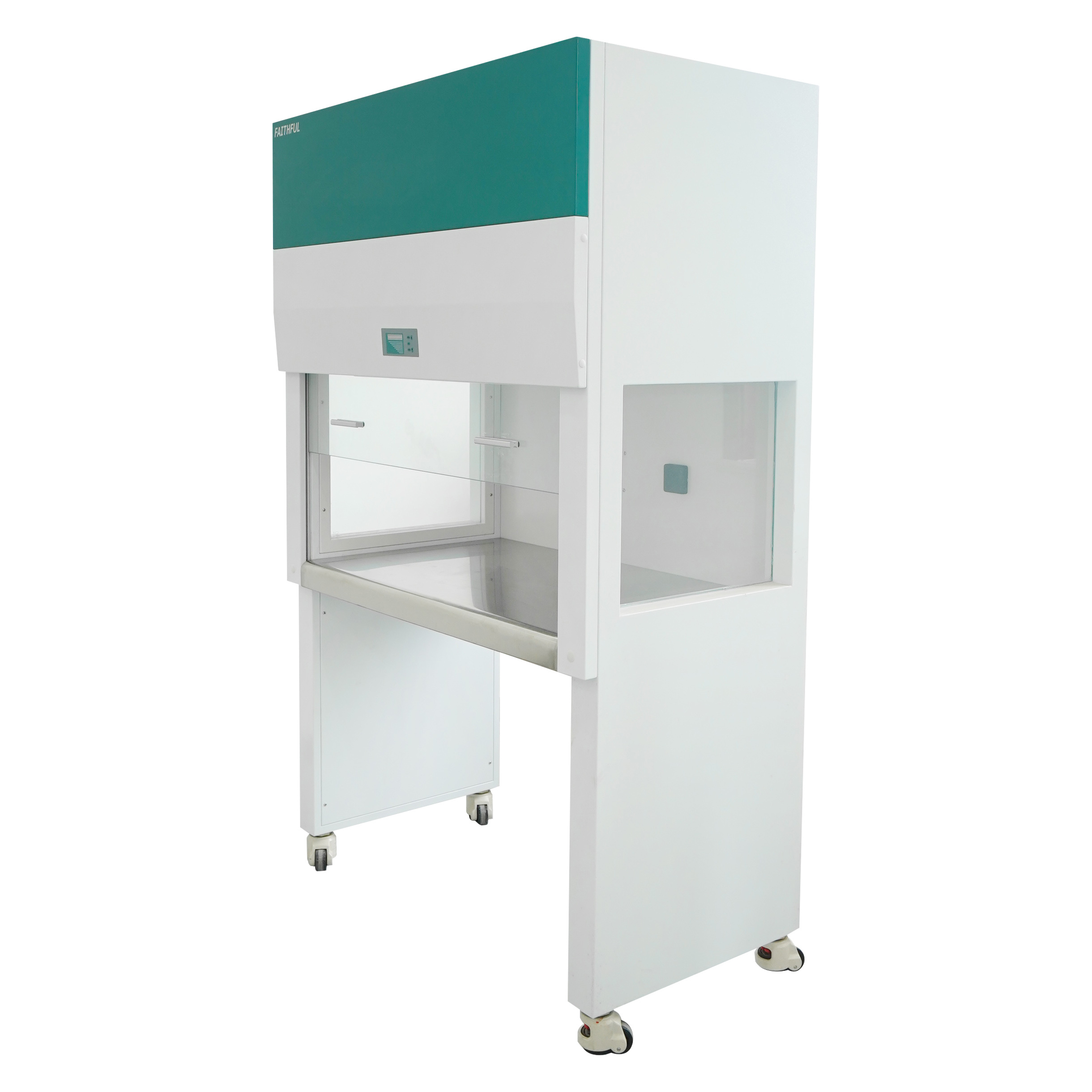

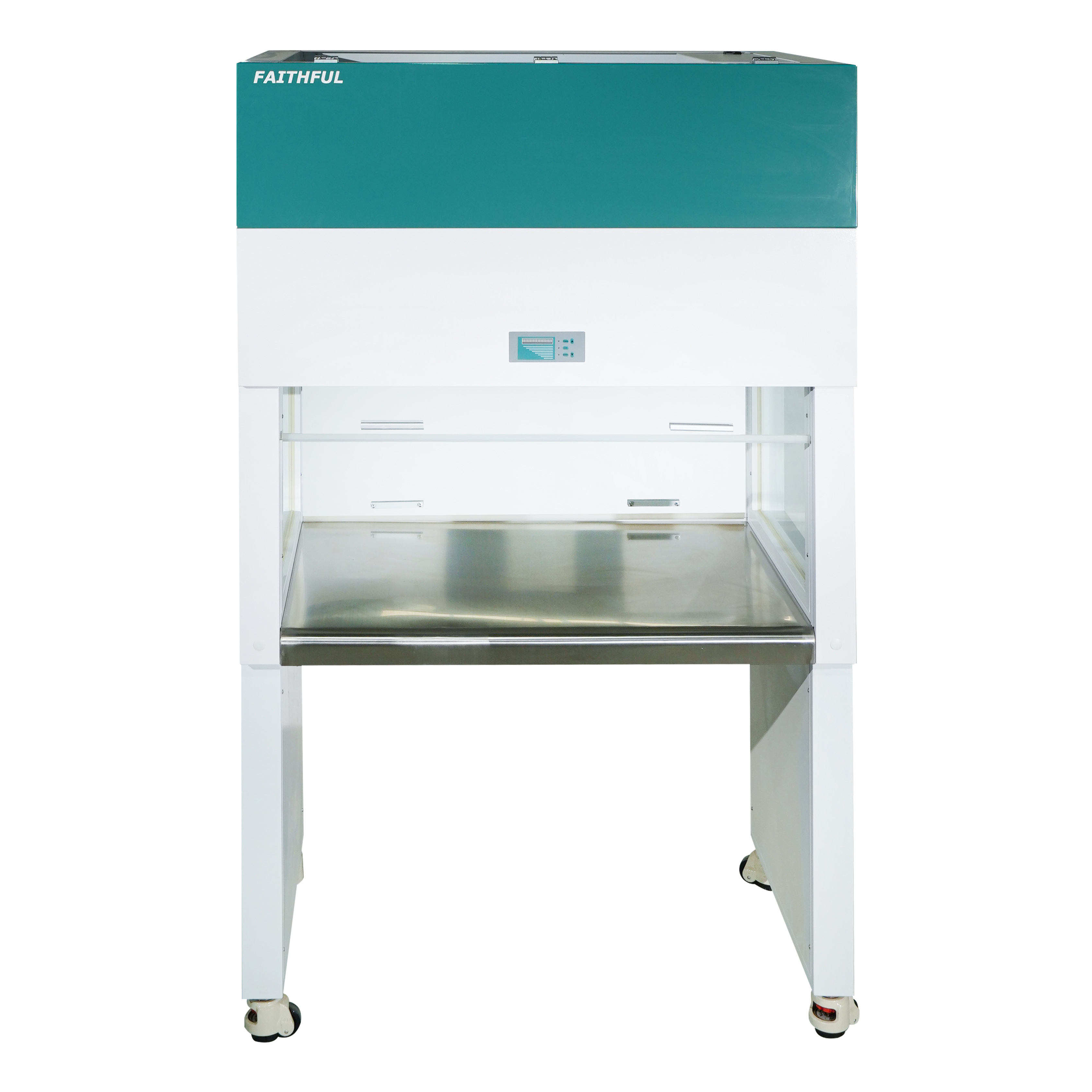

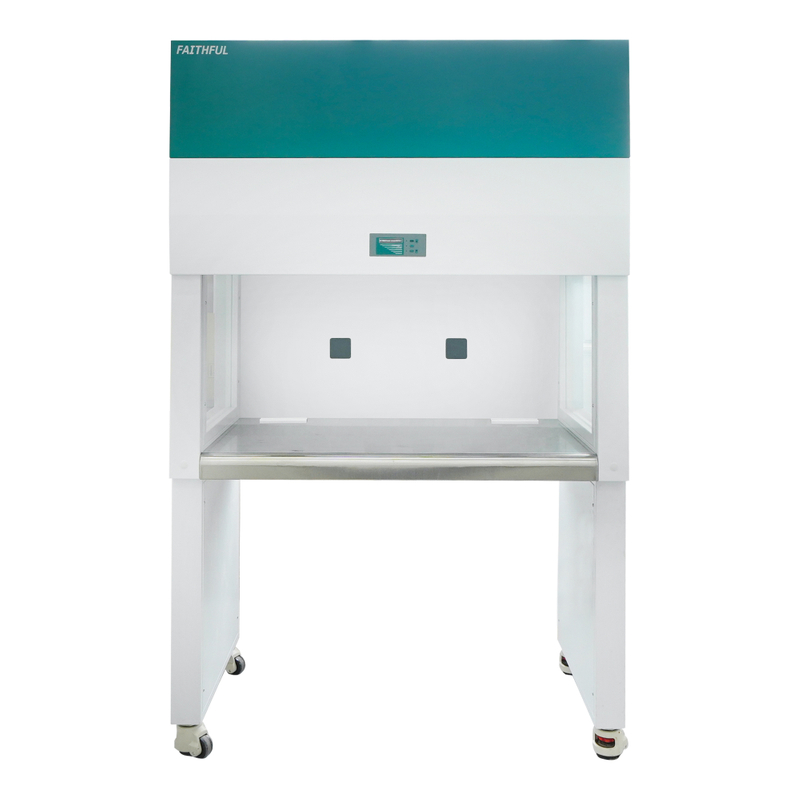

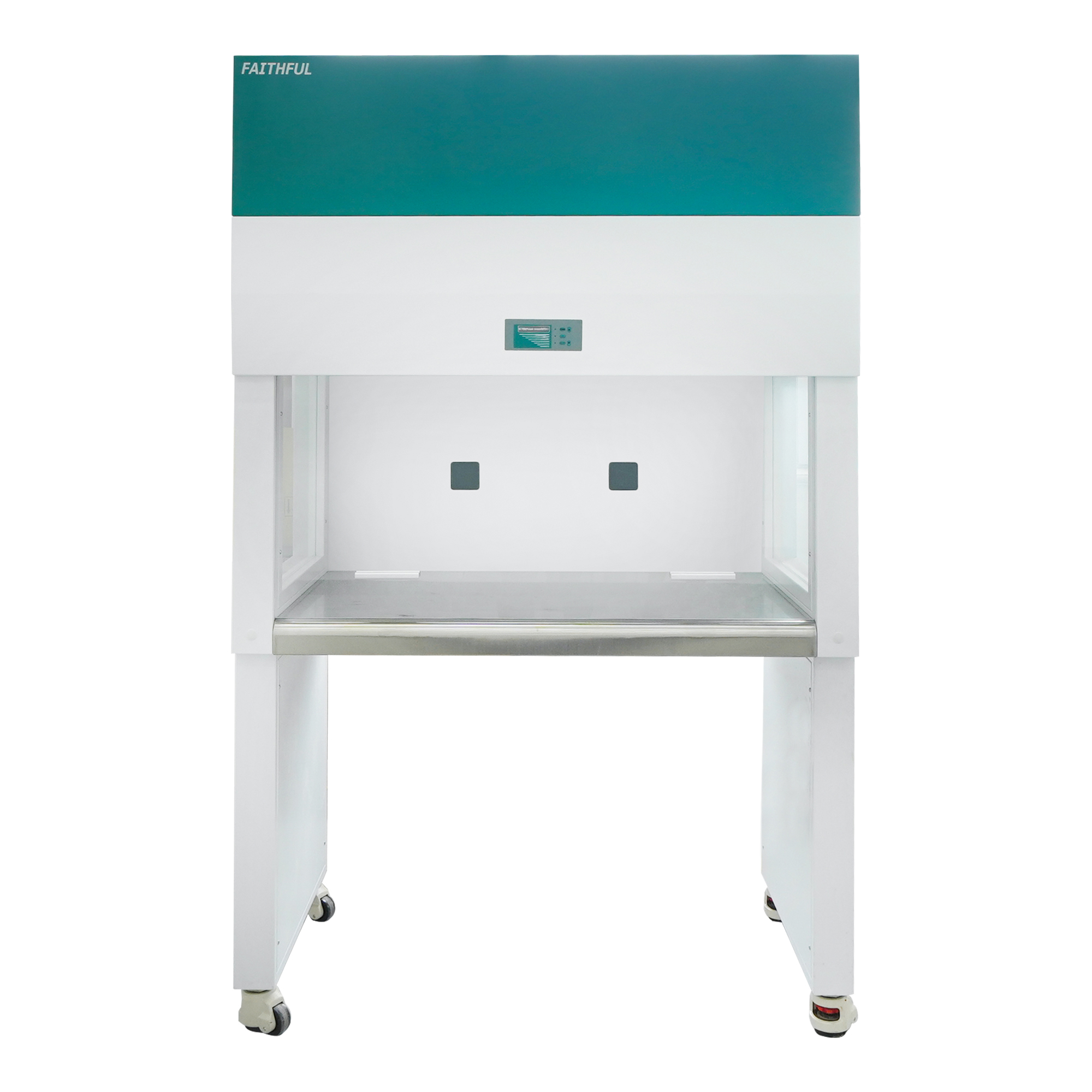

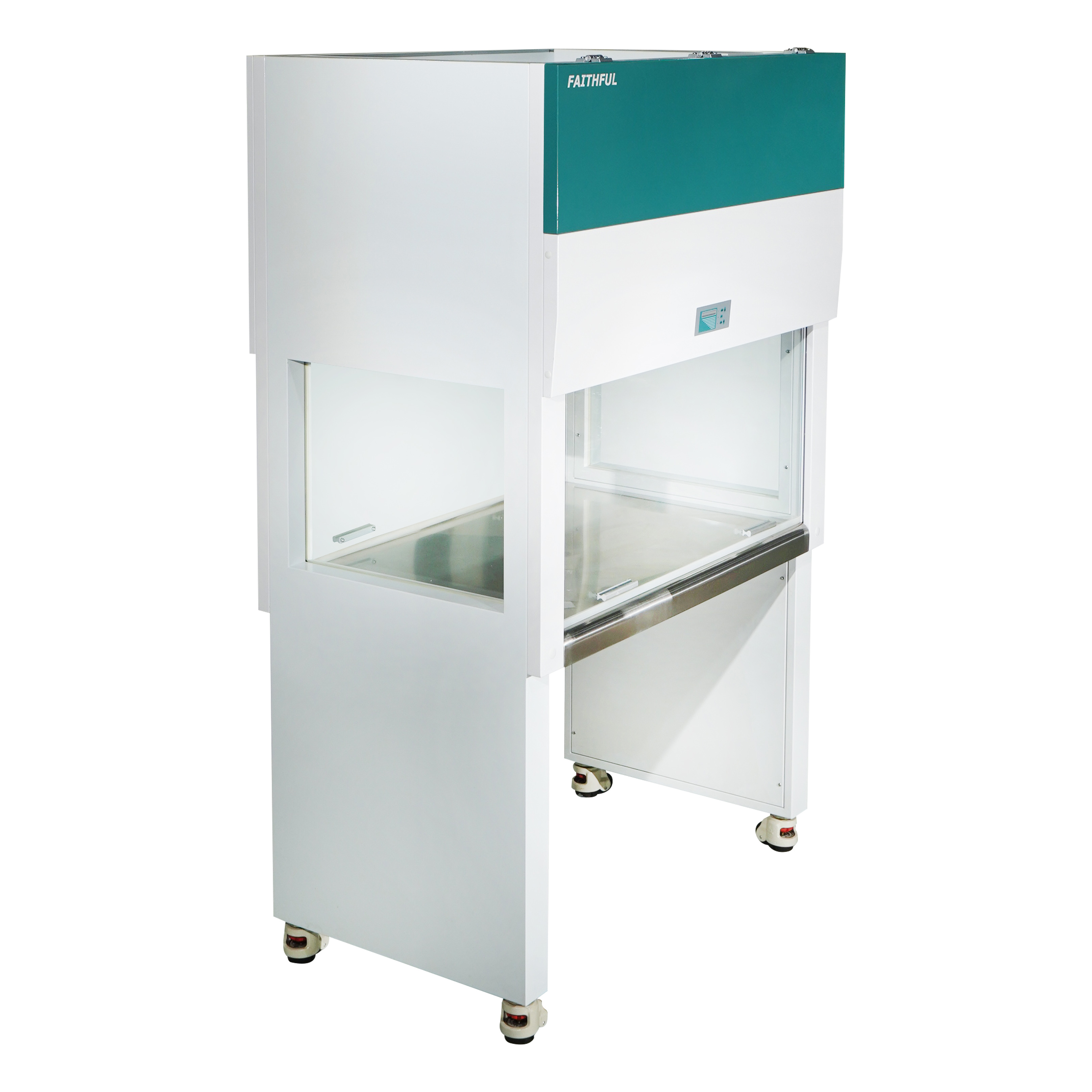

 Laminar Flow Cabinet (Vertical Type)

Vertical flow, airflow direction in the work space down from top to bottom.
Availability:
Quantity:
  • CJ-1D,CJ-1S,CJ-2D,CJ-2S
  • FAITHFUL

Product Description:

1. Vertical laminar flow, with SUS 304 stainless steel bench board, effectively prevents external air into the cleaning work environment.

2. Centrifuge fan, stable speed, low noise, lightly touch air volume control system, five-stage speed control, speed adjustable from 0.2-0.6m/s(initial 0.6m/s,final 0.2m/s)

3. High quality non-separator HEPA filter, good purification effect.


Model

CJ-1D

CJ-1S

CJ-2D

CJ-2S

Applicable Station

one operator one side

one operator two sides

two operators one side

two operators two sides

 Airflow Direction

Vertical

Function

Cleanliness

Class 100

Collection Efficiency

0.3um particle ≥99.995%

Colony Count

≤0.5/vessel (petri dish is φ 90mm )

Wind Speed

initial: 0.6(m/s),final:0.2 (m/s)

Wind Speed Range

0.2-0.6 (m/s)

Noise Level

≤62db

Vibration Semi-Peak Value

≤3um

Illumination Intensity (Lx)

≥500LX(Activity Center)

Work Surface Bearing

50kg

Composition

Inner Chamber

SUS304 Stainless steel plate

Outer Shell

Cold rolling steel electrostatic spraying exterior

Operation door

Tempered Glass

HEPA Filter (mm)

900*640*50 one piece

1300*640*50 one piece

Pre-Filter (mm)

464*360*5 one piece

712*360*5 one piece

Fluorescent Lamp

16W*2

24W*2

UV Lamp

20W*1

30W*1

Top Fan

180W one piece

180W two pieces

Rated power

240W

440W

Controller

Display

LED

Wind Speed Control

Intelligent multi-level adjustable

Additional Function

Built in 2 multi-purpose sockets, high- efficiency filter, sterilization lamp replacement prompt,  foot level adjustment, lighting sterilization one key on/ off

Specification

Inner Size (W*L*H)(mm)

920*690*550

920*690*550

1320*690*550

1320*690*550

Exterior Size (W*L*H)(mm)

1060*763*1734

1060*763*1734

1460*763*1734

1460*763*1734

Packing Size (W*L*H)(mm)

1210*885*1899

1210*885*1899

1610*885*1899

1610*885*1899

Max Power of universal socket

Single socket: 800W

Current Rating (50/60Hz)

AC220V/1.8A

AC220V/3.6A

NW/GW kg

160/200

165/205

200/250

205/255
