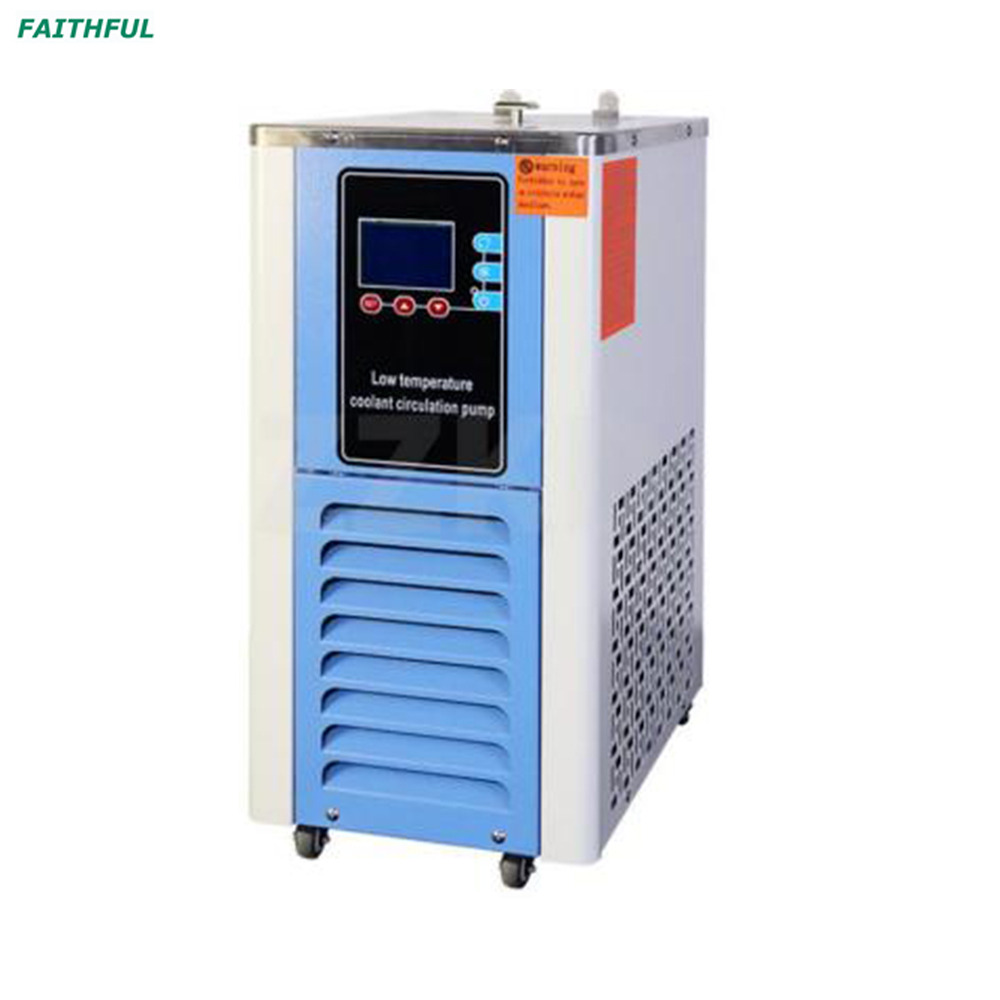

Low Temperature Coolant Circulation Pump

The cryogenic coolant circulation pump can be matched with various instruments (rotary evaporator, fermentation tank, chemical reaction kettle, freeze drying equipment, bio-logical pharmaceutical reaction kettle, etc.) DL.SB series Ultra-low Temperature Stirring Reaction Bath Circulating system material made of high quality 304 stainless steel and polymer anti-corrosion material Anti-rust, anti-corrosion, Prevent cold liquid from pollution
Availability:
Quantity:
Inquire Add to Basket

  • DLSB-5/10,DLSB-5/30,DLSB-10/10,DLSB-10/30,DLSB-20/30

  • FAITHFUL

The cryogenic coolant circulation pump can be matched tank, chemical reaction kettle,

freeze drying equipment, biological pharmaceutical reaction kettle, etc.) with various

instruments (rotary evaporator, fermentation


Model

DLSB-5/10

DLSB-5/30

DLSB-10/10

DLSB-10/30

DLSB-20/30

Volume(L)

5

7.49

13.82

13.82

24.38

Low Temp. Range (℃)

-10℃～RT

-30℃～RT

-10℃～RT

-30℃～RT

-30℃～RT

Power Supply (V/HZ)

220/50

220/50

220/50

220/50

220/50

Temp. Precision（℃）

±2

±2

±2

±2

±2

Cooling Capacity(W)

280～620W

320～1150W

520～1320W

120～1320W

246～1845W

Total Power(W)

420

635

980

980

1350

Total Current(A)

2.1

2.9

4.8

5.2

7.2

Circulating Pump

Power（W）

100

100

100

100

100

Flow(L/min)

20

20

20

20

20

Lift(m)

4～6

4～6

4～6

6

6

Open Size（mm）

160×160

200×200

230×230

220L×220

260×260

Liquid tank（mm）

170×170×170

210×210×170

240×240×240

240×240×240

290×290×290

Total Demension（mm）

400×260×530

515×345×688

550×415×780

550×420×780

565×460×845

Weight(Kg)

28

47

54

54

60


download Low-Temperature-Coolant-Circulation-Pump.pdf
