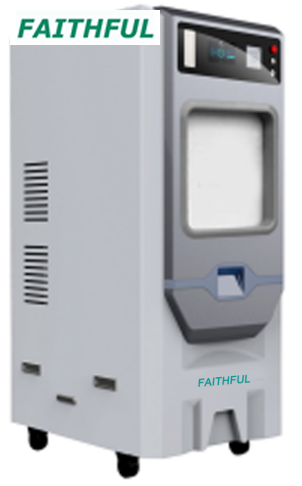

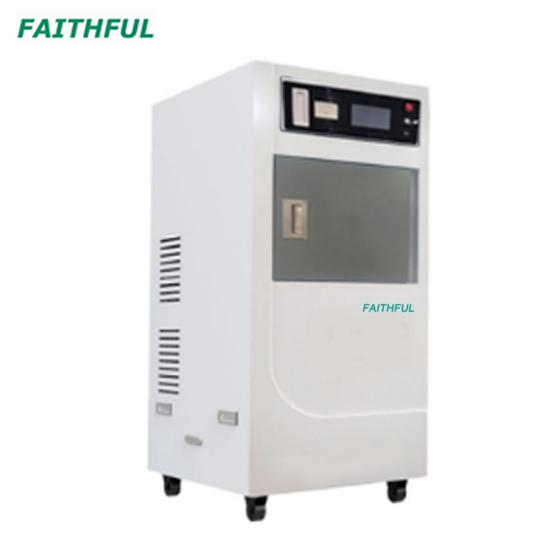

Low Temperature Plasma hydrogen Peroxide Sterilizer

Product Classification

Product Description：

The low-temperature plasma sterilizer generates plasma in the

sterilization chamber under low temperature and vacuum through

the action of high-frequency electric field to chemically react with

proteins and nucleic acids in microorganisms, and then usesH2O2

as the medium to destroy microorganisms and disturb the survival

function of microorganisms, so as to finally achieve the sterilization effect

Model	SQ-DS60	SQ-DZ100	SQ-DZ130	SQ-DZ220
Hydrogen Peroxide Concentration (H2O2)	58%-60%
Working Temperature	40℃～60℃
Sterilization Time	35-60min
Heating Method	Electric heating
Operation Height	≤140cm	≤160cm	≤160cm	≤160cm
Program System	3 programs:Fast sterilization ,Strengthen sterilization , Lumen sterilization
Air Filter Accuracy	≤0.22μm
Display	7-inch color touch screen
Sterilization Chamber Material	5052 high-quality aluminum ( thickness ≥8mm)
Outer Box Material	ABS plastic
Electrode Mesh Material	5052 Aluminum alloy (thickness ≥ 2mm)
Cavity temperature Heating Power	Preheating time ≤30min
Printer	Yes
Storage Function	≥500 cycles
Power Rate	2.6kVA	3.5kVA	4.2kVA	4.8kVA
Voltage	AC220V, 50Hz
Plasma Power Supply	≤ 900W
Exterior Size(L×W×H)(mm)	780×635×1510	1120×790×177	1120×790×1770	1120×790×1770
Inner Tank Size(L×W×H)(mm)	610×350×320	700×420×360	750×440×400	820×510×460
Total Volume	68L	108L	135L	192L
Weight	185kg	265kg	272kg	305kg
