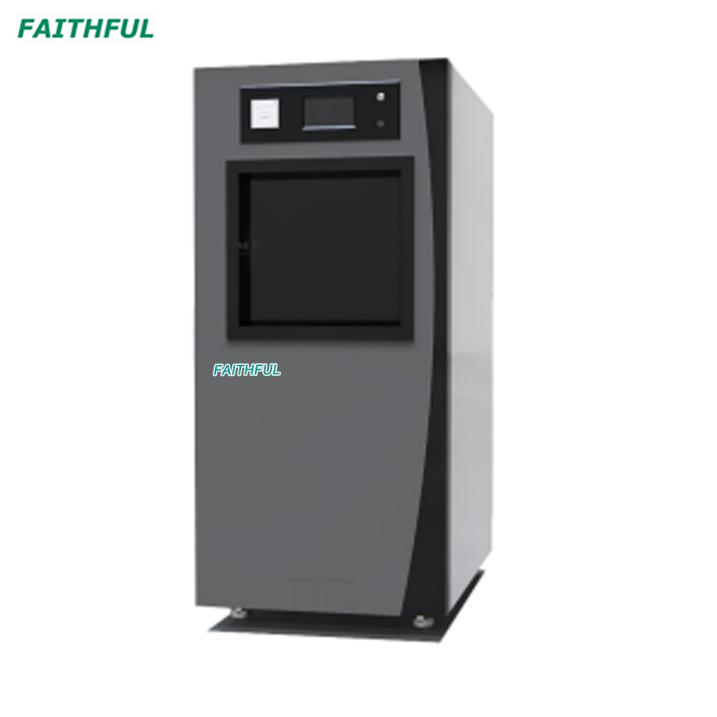

Low Temperature Plasma hydrogen Peroxide Sterilizer

Product Classification

Product Description：

The low-temperature plasma sterilizer generates plasma in the

sterilization chamber under low temperature and vacuum through

the action of high-frequency electric field to chemically react with

proteins and nucleic acids in microorganisms, and then usesH2O2

as the medium to destroy microorganisms and disturb the survival

function of microorganisms, so as to finally achieve the sterilization effect

Model	SQ-WD-100	SQ-WD-135	SQ-WD-190
Hydrogen Peroxide Concentration	58%～60%
Working Temperature	45 ℃~60 ℃
Sterilization Time	Fast sterilization for about 40 minutes; Strengthen sterilization for about 60 minutes; Lumen sterilization ≤ 60min
Energy Consumption	≤ 2.3 kWh/per cycle	≤ 2.5 kWh/per cycle	≤ 3.0 kWh/per cycle
Chamber Material	High-quality 5052 aluminum
Door Panel Material	5052 aluminum alloy (thickness ≥ 10mm)
Pipeline Material	USU304 stainless steel
Thermal Insulation Material	≥ 20mm thermal insulation cotton
Hydrogen Peroxide Injection Method	Quantitative injection of chemicals
Display Function	Temperature, pressure, time, operation mode, process stage, plasma power supply, hydrogen peroxide concentration, and alarm
Printer	Yes
Storage Function	≥500 cycles
Protection Functions	Over voltage, under voltage, over temperature, and door failure
Ultimate Vacuum	0.04Pa
Air Filter Accuracy	≤0.22μm
Plasma Power Supply	≤ 900W
Exterior Size(L×W×H)(mm)	1067×790×1782	1067×790×1782	1067×790×1782
Inner Tank Size(L×W×H)(mm)	700×430×360	750×450×400	820×510×400
Total Volume	108L	135L	192L
Voltage	AC220V, 50Hz
Power Rate	3.4kVA	3.5kVA	4.3kVA
Weight	301kg	308kg	341kg
