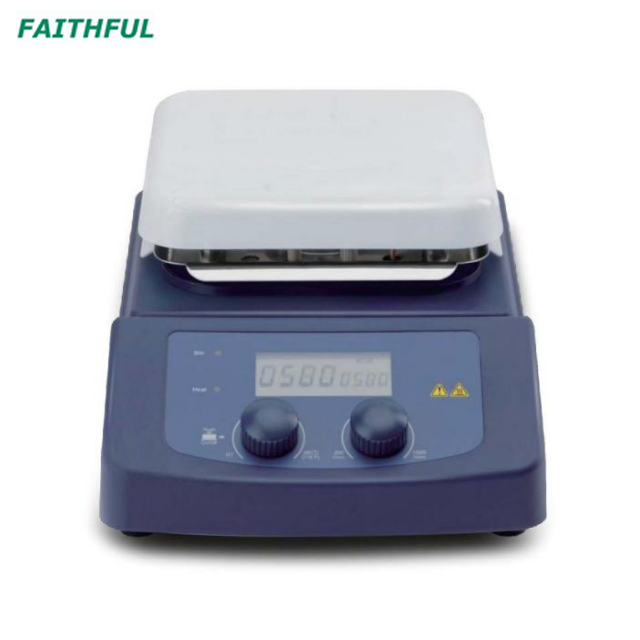

MS-H380-Pro Magnetic Hotplate Stirrer

Product Classification

Maximum heating temperature is 380°C

High resolution LCD displays actual temperature and speed

Brushless DC motor is maintenance free

Aluminum ceramic coating work plate, allowing immediate heat transfer

External temperature control is possible with temperature sensor PT1000

Digital speed control with maximum speed up to 1500rpm

Maximum stirring quantity of H20 at 5L

Model	MS-H380-Pro
Work plate Dimension [W x D]	140x140mm
Work plate material	Aluminum cover with ceramic coating
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity, [H2O]	5L
Max. magnetic bar[length]	50mm
Speed range	200-1500rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp-380℃
Heating liquid temperature control accuracy	±1℃(<100℃) ±1%(>100℃)
Overheating temperature protection	420℃
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000 ( accuracy±0.2℃ )
"Hot" warning	-
Data connector	-
Protection class	IP21
Timer function	-
Motor rating input	2.4W
Motor rating output	1.8W
Power	510W
Heating output	500W
Voltage,Frequency	100-120/200-240V，50/60Hz
Dimension [WxDxH]	320x180x108mm
Weight	2.2kg
Permissible ambient temperature and humidity	5-40℃,80%RH
