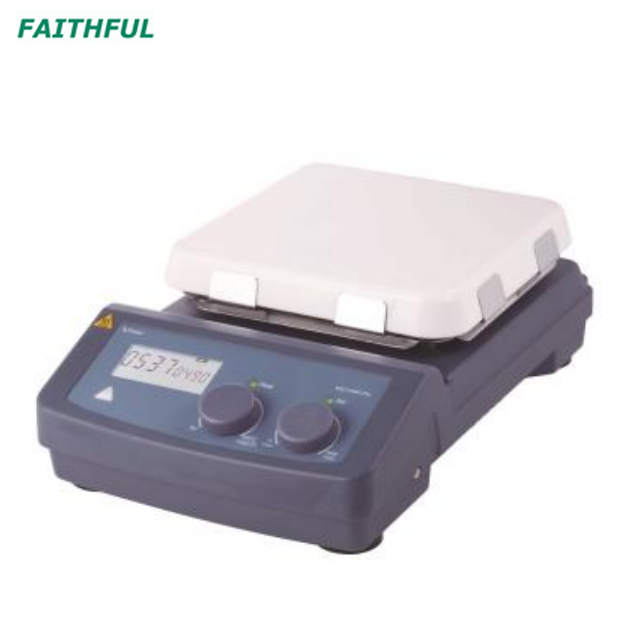

MS7-H550-Pro Hotplate Stirrer

Home » Product » Customized Products » Customer Made Products » Customer Made Products » MS7-H550-Pro Hotplate Stirrer

All
Product Name
Product Keyword
Product Model
Product Summary
Product Description
Multi Field Search

Product Classification

Model:
MS7-H550-Pro
Brand:
FAITHFUL

• LCD display for precise monitoring of speed and temperature
• Built-in PID controller ensures safe heating of the medium with overheating protection
• Max. heating plate temperature 550°C
• Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
• External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
• Digital speed controlling, max. speed at 1500rpm
• Outstanding brushless DC motor enables more stirring power
• Two rotating knobs enable easy adjustment of speed and temperature
• The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
• Remote function provides PC control and data transmission

MS7-H550-Pro Hotplate Stirrer

Specifications	MS7-H550-Pro
Work plate Dimension [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Max. stirring quantity, [H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm, resolution ±1rpm
Speed / Temp. display	LCD
Heating temperature range	Room Temp.-550°C,increment 1°C
Temperature control accuracy	±1 °C (<100°C) ±1%(>100°C)
Overheating protection	580°C
Temperature display accuracy	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Data connector	RS232
Protection class	IP21
Dimension [WxDxH]	215x360x112mm
Weight	5.3kg

Specifications	MS7-H550-Pro
Work plate Dimension [W x D]	184x184mm (7 inch)
Work plate material	Glass ceramic
Motor type	Brushless DC motor
Motor rating input	18W
Motor rating output	10W
Power	1050W
Heating output	1000W
Voltage	100-120/200-240V 50/60Hz
Max. stirring quantity, [H2O]	20L
Max. magnetic bar[length]	80mm
Speed range	0-1500rpm, resolution ±1rpm
Speed / Temp. display	LCD
Heating temperature range	Room Temp.-550°C,increment 1°C
Temperature control accuracy	±1 °C (<100°C) ±1%(>100°C)
Overheating protection	580°C
Temperature display accuracy	±0.1°C
External temperature sensor	PT1000 (accuracy ±0.2)
"Hot" warning	50°C
Data connector	RS232
Protection class	IP21
Dimension [WxDxH]	215x360x112mm
Weight	5.3kg
