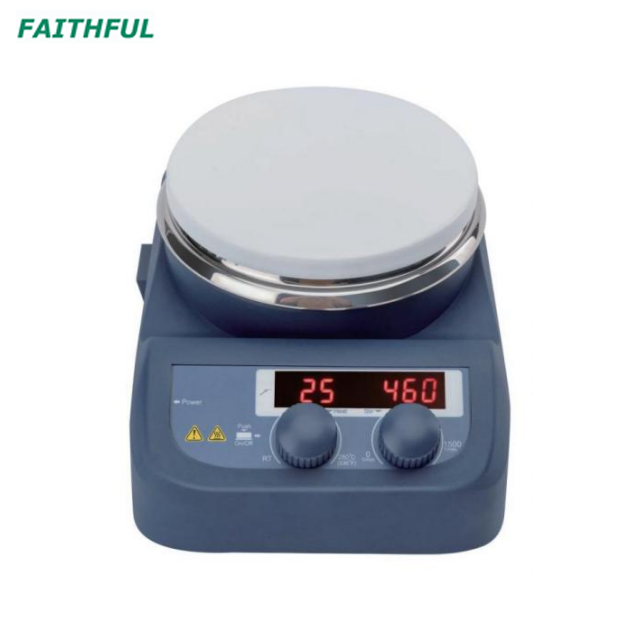

Magnetic Hotplate Stirrer MS-H280-Pro

Product Classification

Digital temperature control with maximum temperature up to 280°C

Digital speed control with maximum speed up to 1500rpm

Stainless steel with ceramic coating work plate provides high chemical resistant performance

External temperature control is possible by connecting temperature sensor(PT1000) with an accuracy at ±0.2° C

LED display shows temperature and stirring speed "HOT" warning flashes if work plate temperature is above 50°C

Model	MS-H280-Pro
Work plate Dimension [W x D]	Ø135mm（5 inch）
Work plate material	stainless steel cover with ceramic coating
Motor type	Brushless DC motor
Stirring positions	1
Max. stirring quantity, [H2O]	3L
Max. magnetic bar[length]	50mm
Speed range	200-1500rpm
Speed display	LED
Temperature display	LED
Heating temperature range	Room Temp-280℃
Heating liquid temperature control accuracy	±1℃ (<100℃) ±1% (>100℃)
Overheating temperature protection	320℃
Temperature display accuracy	±1℃
External temperature sensor	PT1000 ( accuracy±0.2℃ )
"Hot" warning	50℃
Data connector	-
Protection class	IP42
Timer function	-
Motor rating input	5W
Motor rating output	3W
Power	515W
Heating output	500W
Voltage,Frequency	100-120/200-240V，50/60Hz
Dimension [WxDxH]	150x260x100mm
Weight	1.8kg
Permissible ambient temperature and humidity	5-40℃,80%RH
