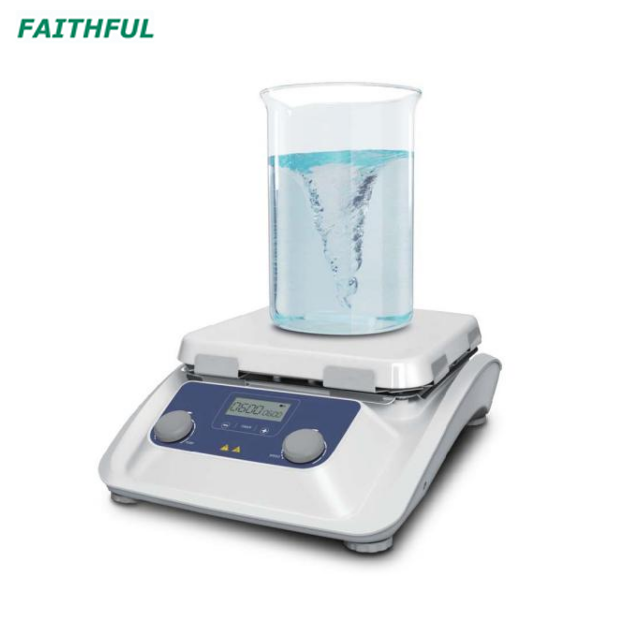

Magnetic Hotplate Stirrer MS10-H500-Pro

Availability:
Quantity:
  • MS10-H500-Pro

  • FAITHFUL

Large volume: Up to 30L of liquid on 10-inch hot plate with powerful

magnetic stirring

Glass ceramic work plate provides excellent chemical resistant performance

and most efficient heat transfer

 LCD display for precise monitoring of speed and temperature. External temperature

control is possible by connecting ,the temperature sensor (PT1000) with an accuracy at±0.2°C

Digital speed control of 100 ~ 1500rpm

Max. heating plate temperature 500℃

The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off

Data connector: The SD card records the instrument's running data in real time.

Timing function: the running time of the instrument can be set.


Specifications

MS10-H500-Pro

Work Plate Dimension [W x D]

254x254mm(10 inch)

Work Plate Material

Glass ceramic

Motor Type

Brushless DC motor

Stirring Positions

1

Max. Stirring Quantity, [H2O]

30L

Max. Magnetic Bar[length]

80mm

Speed Range

100-1500rpm,resolution±1rpm

Speed Display

LCD

Temperature Display

LCD

Heating Temperature Range

Room Temp.-500℃, increment 1℃

Temperature Control Accuracy

±1℃(<100℃)±1%(>100℃)

Overheating Protection

540℃

Temperature Display Accuracy

±0.1℃

External Temperature Sensor

PT1000(accuracy ±0.2℃)

"Hot" Warning

50℃

Data Connector

SD card

Protection Class

IP20

Motor Rating Input

18W

Motor Rating Output

10W

Power

1700W

Heating Output

1500W

Voltage,Frequency

100-120/200-240V,50/60Hz

Dimension [WxDxH]

328x424x138mm

Weight

7.2kg

Timer Function

1min-99h59min

Permissible Ambient Temperature & Humidity

5-40℃,80%RH
