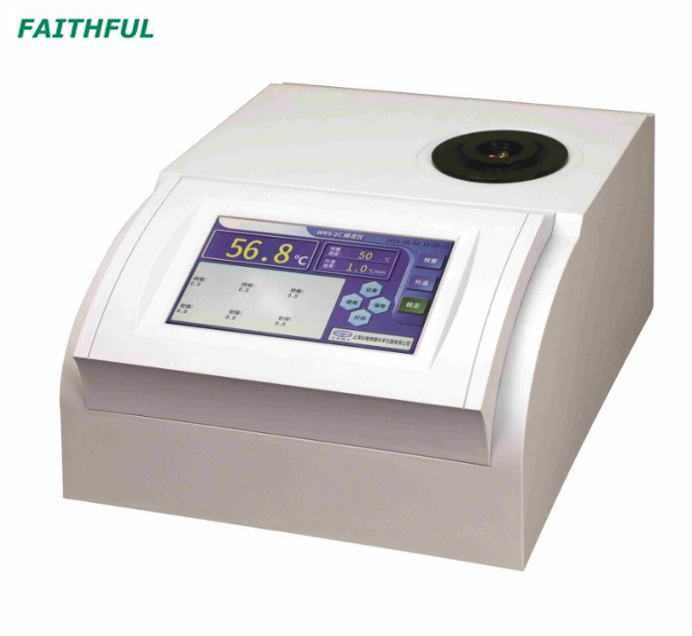

Melting-Point Apparatus

Product Classification

Measurement of melting point is one of the important methods of measurement of purity;

To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances;

Use PID & PWM to control the temperature;

Automatically records the melting curve;

It can calculate average value of initial and final melting points automatically;

Touch Screen;

USB and RS232;

Parameters/Model	WRS-2C		WRS-1C
Measurement range	room temperature ~ 360 ℃		room temperature ~ 400 ℃
Setting rate of the “starting temperature”	50℃~360℃≤ 8 min; 360℃~50℃≤8 min
Minimum digital display	0.1 ℃
Linear heating-up rate	0.1 ℃ ~20 ℃ /min
Accuracy	≤200 ℃: 0.4℃; ＞200 ℃: 0.7℃
Repeatability	0.3 ℃(heating rate: 1.0℃/min)
Size of the capillary	φ1.4mm(outside diameter) φ1.0mm(inside diameter) Length: 90mm
Number of capillary	3		1
Loading height of the sample	3mm-5mm
Data storage	1000 set
Printer(RS-TH32-SC)	Yes	Optional
Display	5.7 inch touch screen
Interface	RS232/USB
Dimension	580mm x 430mm x 310mm		500mm x 430mm x 310mm
Weight(gross)	13kg		11kg
