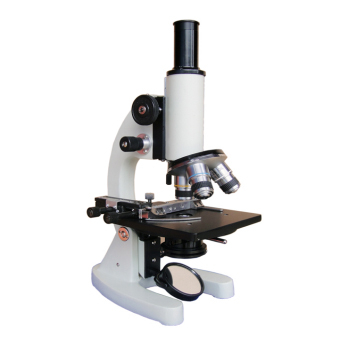

Microscope-FSF-03-1250X

Availability:
Quantity:
Inquire Add to Basket

It is mainly used to amplify tiny objects and become visible instruments to human eyes.

ModelFSF-03-1250X
1、Total Magnification20X-1250X
2、EyepiecesHuygenian Eyepieces：H5X,H10X,H12.5X
3、ObjectivesAchromatic Objectives：10X,40X(S),100X(S/OIL)
4、Lens TubeMonocular Vertical Tube
5、Aperture of The
Rotating Diaphragm		Abbe Type，NA=1.25,With Adjustable Diaphragm
And Filter Holder
6、Coarse Adjustment
Range		50mm
7、Fine Adjustment
Range		1.8-2.2mm
8、Working Stage120mm*120mm，attach one simple moving ruler
9、illuminationConcave-Plan Reflector：Ø50mm
10、OptionsElectric light source
（110V/20W,220V/20W,12V/20W optional)；
0.18WLEDvariable cold light source ; You can choose the
 plug you want.
11、NotesThis type of microscope is mainly made of metal
,including:Eyepiece tube, Objective tube, Platform, Holder,
 Sclice clip , Platform bracket and have a slight focus
component in the bottom
