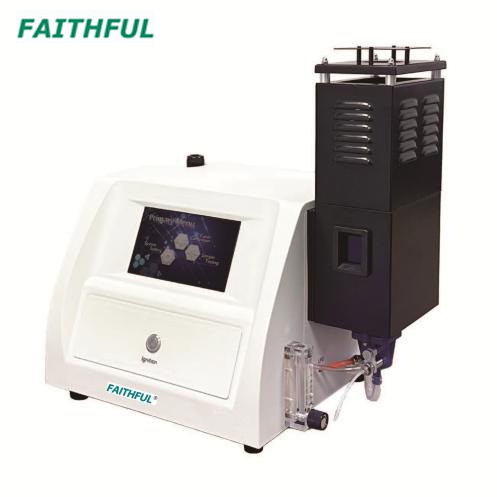

Multi-element Flame Photometer

Product Classification

Feature

1. Push-button ignition, easy to operate. 7 inch color touch LCD capacitive screen,intuitive reading.

2. Elements concentration reading function, automatic correlation coefficient calculation function (not include FP640).

3. 20 sets of standard curves and 20 sets of test data can be stored.Use LPG as gas.

4. Gas flow is adjustable in direct reading. Gas leakage alarm, automatic gas cut-off function.

5. Accidental flameout, automatic shutdown protection. Multiple language support.

6. With USB communication port, can be directly connected to the computer, convenient data analysis.

7. Optional built-in printer and professional data processing software.

Standard Accessories

LPG reducing Valve 1 pc

Stainless steel bellows for LPG 1 pc

Silica gel tubing for waste liquid 1 pc

PU tubing for air 1 рс

Air Compressor 1 рс

Model		FP6450	FP6440	FP6431	FP6430	FP6410	FP640
Test element		K/Na/Li/Ca/Ba	K/Na/Li/Ca	K/Na/Ca	K/Na/Li	K/Na	K/Na
Channel No.		5	4	3		2
LOD (ppm)	K	≤0.156
	Na	≤0.184
	Li	≤0.1035		-	≤0.1035	-	-
	Ca	≤2			-	-	-
	Ba	≤6.028	-	-	-	-	-
Linear error (ppm)	K	≤0.195
	Na	≤0.69
	Li	≤0.1449		-	≤0.1449	-	-
	Ca	≤3			-	-	-
	Ba	≤9.402	-	-	-	-	-
Test range (ppm)	K	0.15-100
	Na	0.18-100
	Li	0.1-30		-	0.1-30	-	-
	Ca	0.1-1000			-	-	-
	Ba	0.1-300	-	-	-	-	-
Response time		8S
Sample uptake		＜3ml/min
Stability		≤3%(15S),≤15%(6min)
Reproducibility		≤2%
Air compressor		External
Printer		Optional built-in thermal printer					-
Com		USB					-
Fuel		LPG
Power		AC220V±10%, 50Hz+1Hz, 30W
Package		570x530x400mm , 18kg
