FWS-30
FAITHFUL
Product Description
1. Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.
2. High-precision temperature control. Resume operation automatically if power off unexpectedly.
3.High–precision speed control: PID feedback control, motor speed stable and accurate. Slow start design, automatically locked after speed out of control, adjustable start speed prevent splashing of shaking bottle liquid.

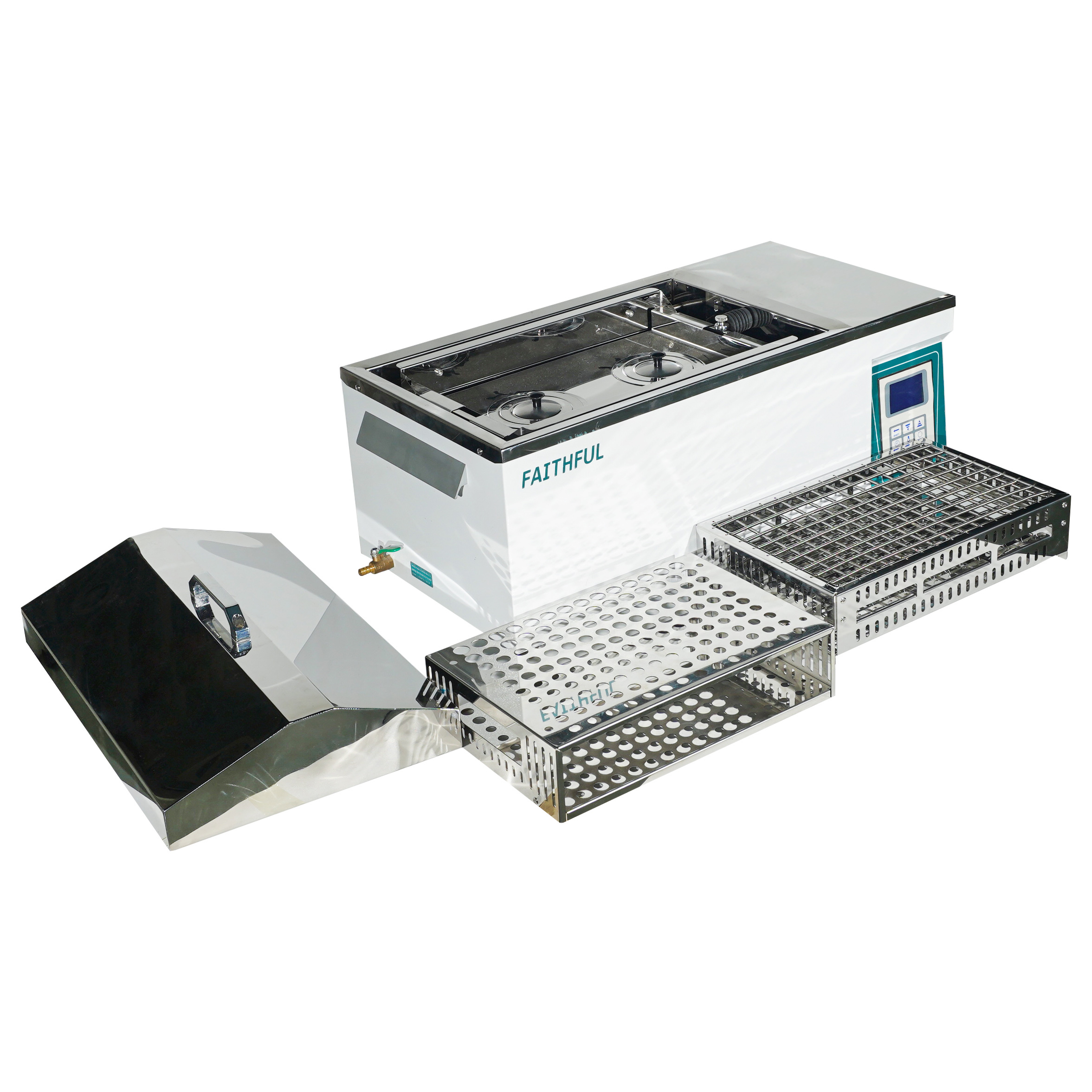

4. Tube rack and water bath flask seat for standard configuration, with function of water bath.
Product Description
1. Large-screen background LCD, shows the measured value, set value and the setting time and the remaining time.
2. High-precision temperature control. Resume operation automatically if power off unexpectedly.
3.High–precision speed control: PID feedback control, motor speed stable and accurate. Slow start design, automatically locked after speed out of control, adjustable start speed prevent splashing of shaking bottle liquid.
4. Tube rack and water bath flask seat for standard configuration, with function of water bath.

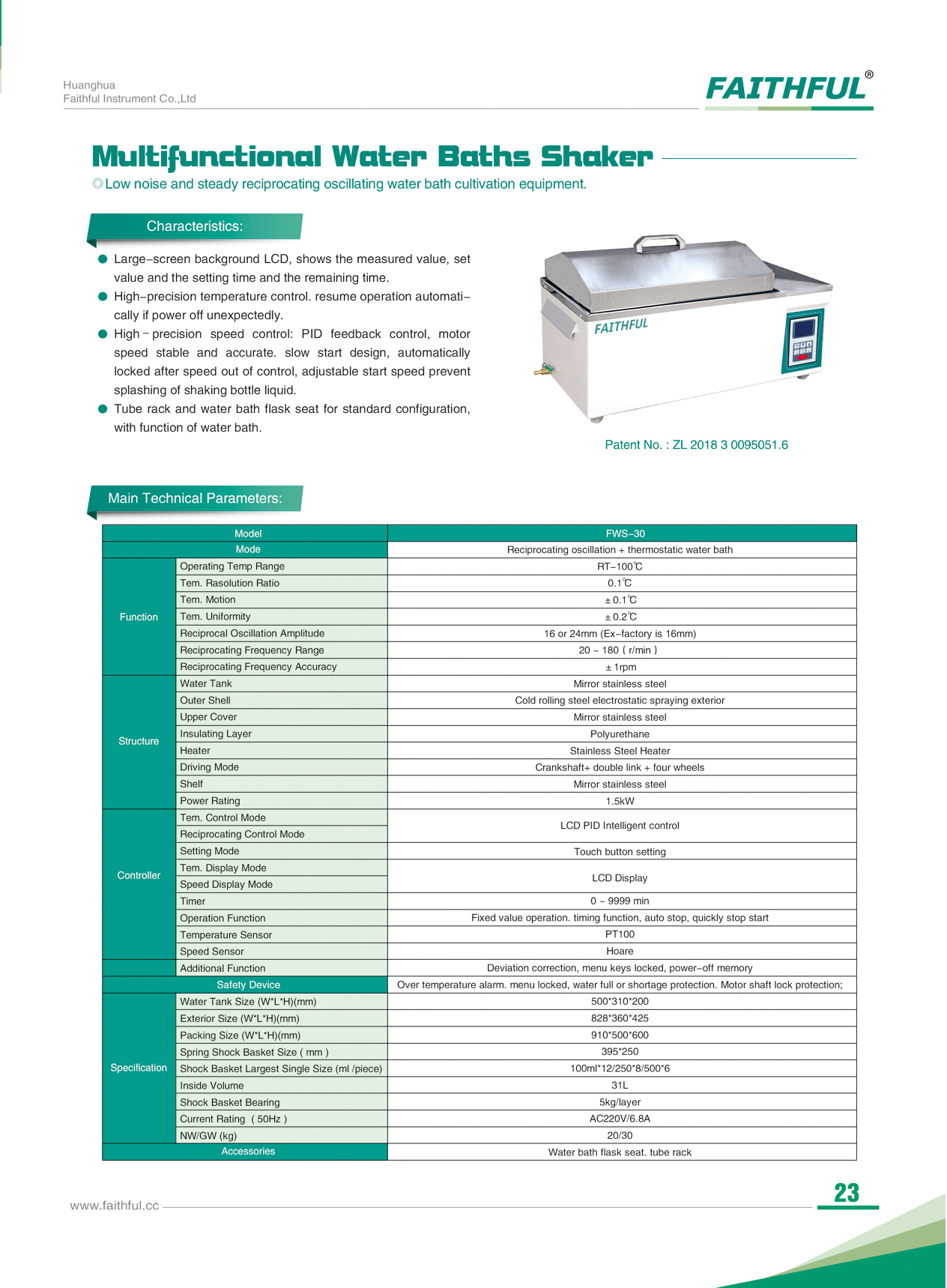

| Model | FWS-30 | |
| Mode | Reciprocating oscillation + thermostatic water bath | |
| Function | Operating Temp Range | RT～100℃ |
Tem. Resolution Ratio | 0.1℃ | |
| Tem. Motion | ±0.1℃ | |
| Tem. Uniformity | ±0.2℃ | |
Reciprocal Oscillation Amplitude | 16 or 24mm (Ex-factory is 16mm) | |
Reciprocating Frequeny Range | 20～180（r/min） | |
Reciprocating Frequeny Accuracy | ±1rpm | |
| Structure | Water Tank | Mirror stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Upper Cover | Mirror stainless steel | |
| Insulating Layer | Polyurethane | |
| Heater | Stainless Steel Heater | |
| Driving Mode | Crankshaft+ double link + four wheels | |
| Shelf | Mirror stainless steel | |
| Power rating | 1.5kW | |
| Controller | Tem. Control Mode | LCD PID Intelligent control |
Reciprocating Control Mode | ||
Setting Mode | Touch button setting | |
Tem. Display Mode | LCD Display | |
Speed Display Mode | ||
| Timer | 0～9999 min | |
| Operation Function | Fixed value operation, timing function, auto stop, quickly stop start | |
| Temperature Sensor | Pt100 | |
| Speed Sensor | Hoare | |
| Additional Function | Deviation correction, menu keys locked, power-off memory | |
| Safety device | over temperature alarm, menu locked, water full or shortage protection, Motor shaft lock protection; | |
| Specification | Water Tank Size (W*L*H)(mm) | 500*310*200 |
Exterior Size (W*L*H)(mm) | 828*360*425 | |
Packing Size (W*L*H)(mm) | 912*480*605 | |
Spring Shock Basket Size（mm） | 395*250 | |
Shock Basket Largest Single Size (ml /piece) | 100ml*12/250*8/500*6 | |
| Inside Volume | 31L | |
| Shock Basket Bearing | 5kg/layer | |
| Current Rating （50Hz） | AC220V/6.8A | |
| NW/GW (kg） | 20/30 | |
| Accessories | Water bath flask seat, tube rack, customized flask clip tray (optional) | |
| Model | FWS-30 | |
| Mode | Reciprocating oscillation + thermostatic water bath | |
| Function | Operating Temp Range | RT～100℃ |
Tem. Resolution Ratio | 0.1℃ | |
| Tem. Motion | ±0.1℃ | |
| Tem. Uniformity | ±0.2℃ | |
Reciprocal Oscillation Amplitude | 16 or 24mm (Ex-factory is 16mm) | |
Reciprocating Frequeny Range | 20～180（r/min） | |
Reciprocating Frequeny Accuracy | ±1rpm | |
| Structure | Water Tank | Mirror stainless steel |
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |
| Upper Cover | Mirror stainless steel | |
| Insulating Layer | Polyurethane | |
| Heater | Stainless Steel Heater | |
| Driving Mode | Crankshaft+ double link + four wheels | |
| Shelf | Mirror stainless steel | |
| Power rating | 1.5kW | |
| Controller | Tem. Control Mode | LCD PID Intelligent control |
Reciprocating Control Mode | ||
Setting Mode | Touch button setting | |
Tem. Display Mode | LCD Display | |
Speed Display Mode | ||
| Timer | 0～9999 min | |
| Operation Function | Fixed value operation, timing function, auto stop, quickly stop start | |
| Temperature Sensor | Pt100 | |
| Speed Sensor | Hoare | |
| Additional Function | Deviation correction, menu keys locked, power-off memory | |
| Safety device | over temperature alarm, menu locked, water full or shortage protection, Motor shaft lock protection; | |
| Specification | Water Tank Size (W*L*H)(mm) | 500*310*200 |
Exterior Size (W*L*H)(mm) | 828*360*425 | |
Packing Size (W*L*H)(mm) | 912*480*605 | |
Spring Shock Basket Size（mm） | 395*250 | |
Shock Basket Largest Single Size (ml /piece) | 100ml*12/250*8/500*6 | |
| Inside Volume | 31L | |
| Shock Basket Bearing | 5kg/layer | |
| Current Rating （50Hz） | AC220V/6.8A | |
| NW/GW (kg） | 20/30 | |
| Accessories | Water bath flask seat, tube rack, customized flask clip tray (optional) | |
