NDJ Viscometer

NDJ-5S/8S liquid viscometer is an upgraded product of rotary viscometer in our factory. This device adopts advanced machine design. manufacturing technology and micro-computer control technology. Blue Ken light and high brightness LCD display are selected for correct data acquisition display,and the data display is clear. NDJ-1S/4S digital display viscometer is an upgraded product of traditional pointer rotary viscometer. This instrument adopts advanced machine horizontal design manufacturing technology and single chip computer control technology. LED digital tube display, accurate measurement of the viscometer using three simple key operation mode,-key matching rotor mumber, - key adjusting speed, a key to read the viscosity value,very convenient to use.
Availability:
Quantity:
  • NDJ-5S,NDJ-1S,NDJ-8S,NDJ-4S

  • FAITHFUL

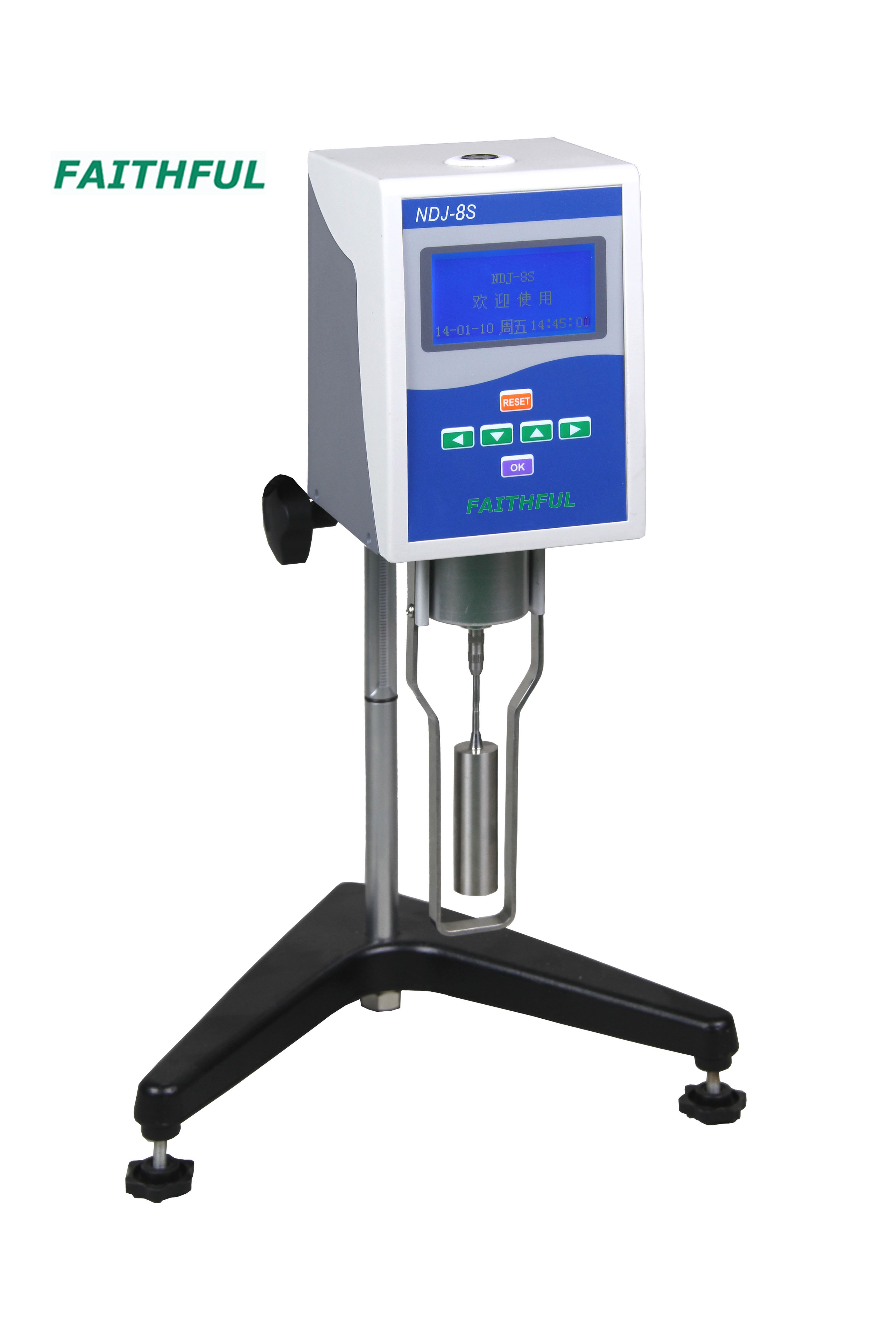

NDJ-5S/8S liquid viscometer is an upgraded product of rotary viscometer in our factory. This device adopts advanced machine design. manufacturing technology and micro-computer control technology. Blue Ken light and high brightness LCD display are selected for correct data acquisition display,and the data display is clear.

The instrument is also equipped with RS-232 temperature sensor, printer and other interface functions. After connecting with PC and installing CD-ROM, the test data can be recorded on demand, the temperature of liquid can be measured by temperature sensor, and the test results can be printed directly by micro printer.

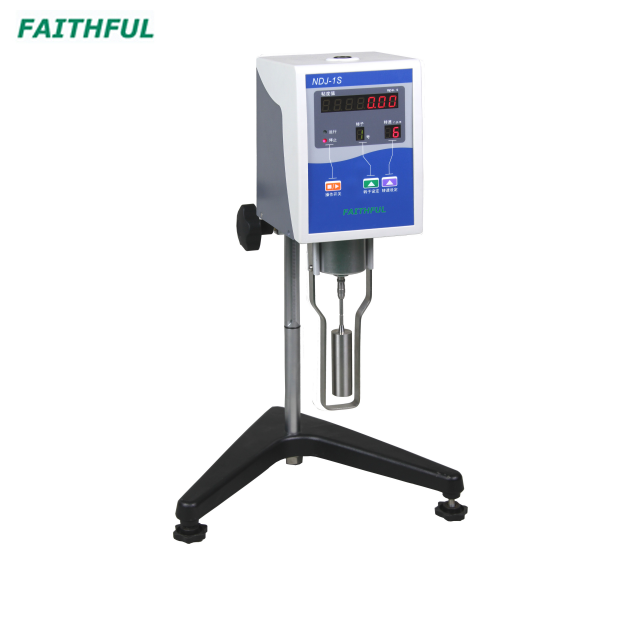

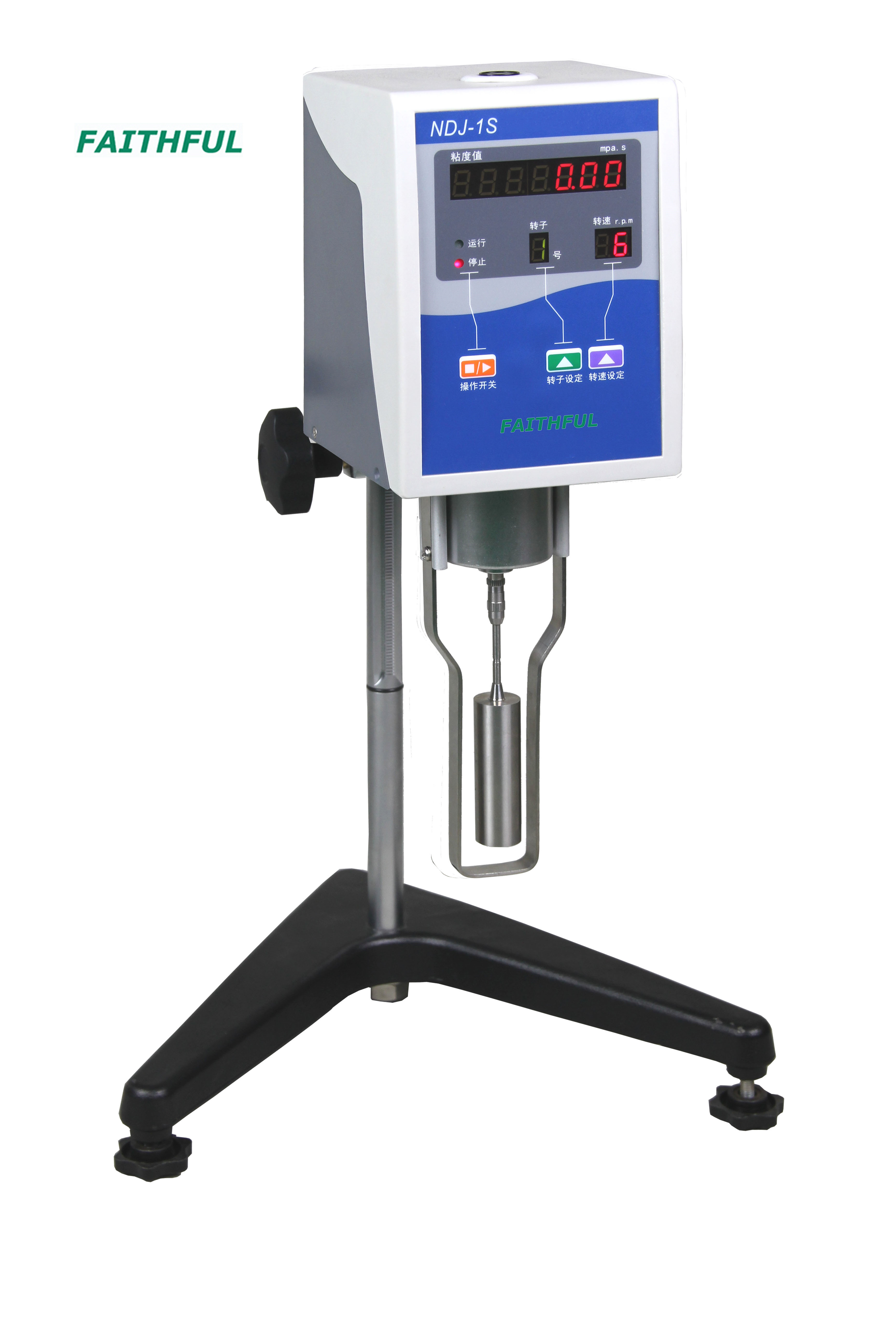

NDJ-1S/4S digital display viscometer is an upgraded product of traditional pointer rotary viscometer. This instrument adopts advanced machine horizontal design manufacturing technology and single chip computer control technology. LED digital tube display, accurate measurement of the viscometer using three simple key operation mode,-key matching rotor mumber, - key adjusting speed, a key to read the viscosity value,very convenient to use.


ModelNDJ-5SNDJ-1SNDJ-8SNDJ-4S
Measuring Range1~1×105mPa.s1~2×106mPa.s
Rotor Specification

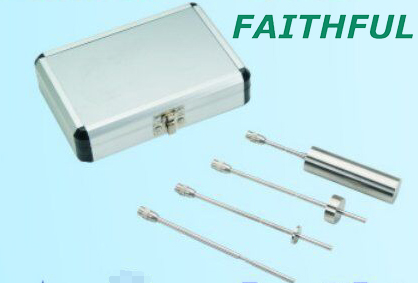

Standard 1-4 rotor(The viscosity can be reduced to 0.1-10m Pa.s)
Rotor Speed6、12、30、60(R/S)0.3、0.6、1.5、3、 6、12、30、60(R/S)
PC Port————
Temp.sensor interface————
Printer Interface————
Measuring Precision  ±2%(Newtonian Liquid)±3%(Newtonian Liquid)±2%(Newtonian Liquid)±3%(Newtonian Liquid)
Voltage220V ±10%    50Hz±10%
Work Environment5℃~35℃,Relative humidity not more than 80%
Exterior Size380*320*390mm
Gross Weight(kg)4.5kg
