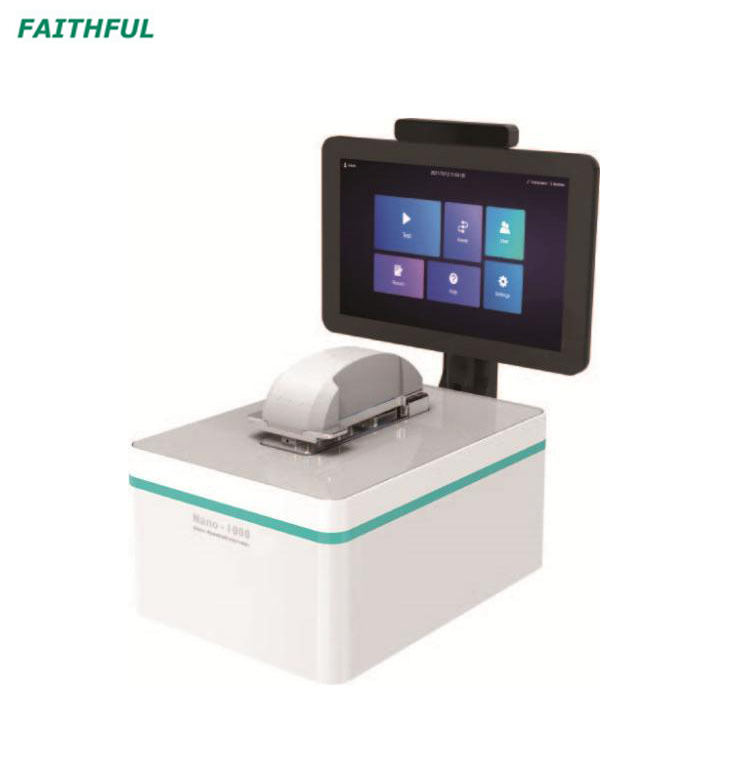

Nano-1000 Micro-Spectrophotometer

Product Classification

Is a full-wavelength micro-spectrophotometer that can provide ultraviolet/visible light absorption detection.

Suitable measure a large number of nucleic acid or protein samples.

Features:

1.10-inch touch screen, Android system, no need to connect to an additional computer.

2.Results can be obtained within 8 seconds.

3.It can detect wavelengths in the range of 190 1100nm, and the maximum detection concentration can reach 15000ng/μL (DNA).

4.Samples can be loaded for detection with either hand.

5.Built-in camera for quickly judging the formation of the liquid column.

6.Log in to the instrument software through theface recognition function.

Model	Nano-1000
Micro Detection	Sample Volume	0.5-2μւ
	Light Source	Xenon flash lamp
	Optical Path	0.075mm、0.2mm、1mm
	Detector	2048-element linear CMOS array
	Wavelength Range	190-1100nm
	Wavelength Accuracy	±1nm
	Wavelength Resolution	≤1.5nm (FWHM@Hg253.652nm)
	Absorbance Repeatability	0.002A (1mm optical path, SD)
	Absorbance Accuracy	3% (0.97 A, 302 nm, 23±2 °℃)
	Absorbance Range	0.04-300A
	Nucleic Acid Detection Range	2-15000ng/μL (dsDNA)
	Test Time	About 8s/sample
OD600 Detection	Absorbance Range	0 to 4.000 Abs
	Absorbance Stability	[0,3) ≤0.5%; [3,4) ≤2%
	Absorbance Repeatability	[0,3) ≤0.5%; [3,4) ≤2%
	Absorbance Accuracy	[0,2)≤0.005A;[2,3)≤1%;[3,4)≤2%
Fluorescence Detection	Linearity	R²≥0.995
	Linear Range	5 orders of magnitude
	Sensitivity (Limit of Detection)	<0.1 pg/μL (dsDNA HS)
Others	Dimensions	262×367×340 mm
Others	Weight	6.6kg

Model	Nano-1000
Micro Detection	Sample Volume	0.5-2μւ
	Light Source	Xenon flash lamp
	Optical Path	0.075mm、0.2mm、1mm
	Detector	2048-element linear CMOS array
	Wavelength Range	190-1100nm
	Wavelength Accuracy	±1nm
	Wavelength Resolution	≤1.5nm (FWHM@Hg253.652nm)
	Absorbance Repeatability	0.002A (1mm optical path, SD)
	Absorbance Accuracy	3% (0.97 A, 302 nm, 23±2 °℃)
	Absorbance Range	0.04-300A
	Nucleic Acid Detection Range	2-15000ng/μL (dsDNA)
	Test Time	About 8s/sample
OD600 Detection	Absorbance Range	0 to 4.000 Abs
	Absorbance Stability	[0,3) ≤0.5%; [3,4) ≤2%
	Absorbance Repeatability	[0,3) ≤0.5%; [3,4) ≤2%
	Absorbance Accuracy	[0,2)≤0.005A;[2,3)≤1%;[3,4)≤2%
Fluorescence Detection	Linearity	R²≥0.995
	Linear Range	5 orders of magnitude
	Sensitivity (Limit of Detection)	<0.1 pg/μL (dsDNA HS)
Others	Dimensions	262×367×340 mm
Others	Weight	6.6kg
