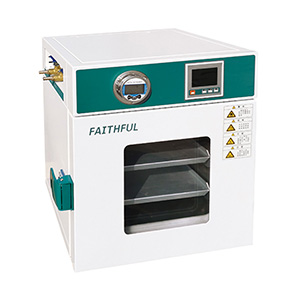

DZ-1BIV, DZ-2BIV, DZ-3BIV,DZ-4BIV
FAITHFUL
Product Description:
1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.
2.With inflatable port, once-forming thermostability silica gel Sealant strip, with good tightness.
3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
5. LCD controller,multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm2 five pressure units optional switch.
Product Description:
1. 4-sides Heating method, Temperature conduction by shelves, more efficiency.
2.With inflatable port, once-forming thermostability silica gel Sealant strip, with good tightness.
3. Double Observation glass window, inner is explosion - proof glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
5. LCD controller,multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm2 five pressure units optional switch.
Model | DZ-1BIV | DZ-2BIV | DZ-3BIV | DZ-4BIV | |
Heating Mode | Four walls heat conduction and decompression | ||||
Function | Temp. Range | RT+10-250℃ | |||
Vacuum Degree Range | <133Pa | ||||
Temp. Resolution Ratio | 0.1℃ | ||||
Temp. Motion | ±1℃ | ||||
Heating-Up Time | 80 min | 100 min | 120 min | 120 min | |
Structure | Inner Chamber | High Quality stainless steel sheet | |||
Outer Shell | cold rolling steel electrostatic spraying exterior | ||||
Insulation Layer | High quality aluminium silicate cotton(with CE certification) | ||||
Heater | stainless steel electric heating tube | ||||
Observation Window | Bullet proof tempered glass | ||||
Vacuum Diameter | LCD display, accuracy class 0.5 | ||||
Nozzle Diameter | 10mm | ||||
Power Rating | 0.8 kw | 1.4 kw | 2.0 kw | 3.0 kw | |
Controller | Temp. Control Mode | Two temperature section PID intelligent | |||
Temp. Setting Mode | Touch button setting | ||||
Temp. Display Mode | LCD Color screen Liquid crystal displays multiple groups of data on one screen | ||||
Timer | 0-9999 minutes (with timing wait function) | ||||
Operation Function | Fixed temperature operation,timing function, auto stop | ||||
Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory | ||||
Temp. Sensor | PT100 | ||||
Safety Device | Over temperature sound-light alarm | ||||
Specification | Inner Chamber(W*D*Hmm) | 300*300*270 | 415*370*340 | 450*450*450 | 550*600*650 |
Exterior Size(W*D*Hmm) | 480*480*606 | 560*540*680 | 640*590*780 | 740*740*1000 | |
Packing Size(W*D*Hmm) | 580*540*760 | 704*620*814 | 730*690*944 | 839*850*1190 | |
Capacity | 24L | 52L | 91L | 214.5L | |
Number of Shelf | 4 | 6 | 7 | 8 | |
Load per Rack | 15kg | ||||
Shelf Space | 40mm | 40mm | 50mm | 70mm | |
Power Supply(50/60HZ) Current Rating | AC220V/3.6A | AC220V/6.3A | AC220V/9.1A | AC220V/13.6A | |
NW/GW(kg) | 42/52 | 67/92 | 82/105 | 170/200 | |
Accessory | Shelf | 2 | |||
Shelf Frame | 4 | ||||
Optional Accessories | silicone connecting pipe, vacuum pump filter, vacuum pump |
Model | DZ-1BIV | DZ-2BIV | DZ-3BIV | DZ-4BIV | |
Heating Mode | Four walls heat conduction and decompression | ||||
Function | Temp. Range | RT+10-250℃ | |||
Vacuum Degree Range | <133Pa | ||||
Temp. Resolution Ratio | 0.1℃ | ||||
Temp. Motion | ±1℃ | ||||
Heating-Up Time | 80 min | 100 min | 120 min | 120 min | |
Structure | Inner Chamber | High Quality stainless steel sheet | |||
Outer Shell | cold rolling steel electrostatic spraying exterior | ||||
Insulation Layer | High quality aluminium silicate cotton(with CE certification) | ||||
Heater | stainless steel electric heating tube | ||||
Observation Window | Bullet proof tempered glass | ||||
Vacuum Diameter | LCD display, accuracy class 0.5 | ||||
Nozzle Diameter | 10mm | ||||
Power Rating | 0.8 kw | 1.4 kw | 2.0 kw | 3.0 kw | |
Controller | Temp. Control Mode | Two temperature section PID intelligent | |||
Temp. Setting Mode | Touch button setting | ||||
Temp. Display Mode | LCD Color screen Liquid crystal displays multiple groups of data on one screen | ||||
Timer | 0-9999 minutes (with timing wait function) | ||||
Operation Function | Fixed temperature operation,timing function, auto stop | ||||
Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory | ||||
Temp. Sensor | PT100 | ||||
Safety Device | Over temperature sound-light alarm | ||||
Specification | Inner Chamber(W*D*Hmm) | 300*300*270 | 415*370*340 | 450*450*450 | 550*600*650 |
Exterior Size(W*D*Hmm) | 480*480*606 | 560*540*680 | 640*590*780 | 740*740*1000 | |
Packing Size(W*D*Hmm) | 580*540*760 | 704*620*814 | 730*690*944 | 839*850*1190 | |
Capacity | 24L | 52L | 91L | 214.5L | |
Number of Shelf | 4 | 6 | 7 | 8 | |
Load per Rack | 15kg | ||||
Shelf Space | 40mm | 40mm | 50mm | 70mm | |
Power Supply(50/60HZ) Current Rating | AC220V/3.6A | AC220V/6.3A | AC220V/9.1A | AC220V/13.6A | |
NW/GW(kg) | 42/52 | 67/92 | 82/105 | 170/200 | |
Accessory | Shelf | 2 | |||
Shelf Frame | 4 | ||||
Optional Accessories | silicone connecting pipe, vacuum pump filter, vacuum pump |
