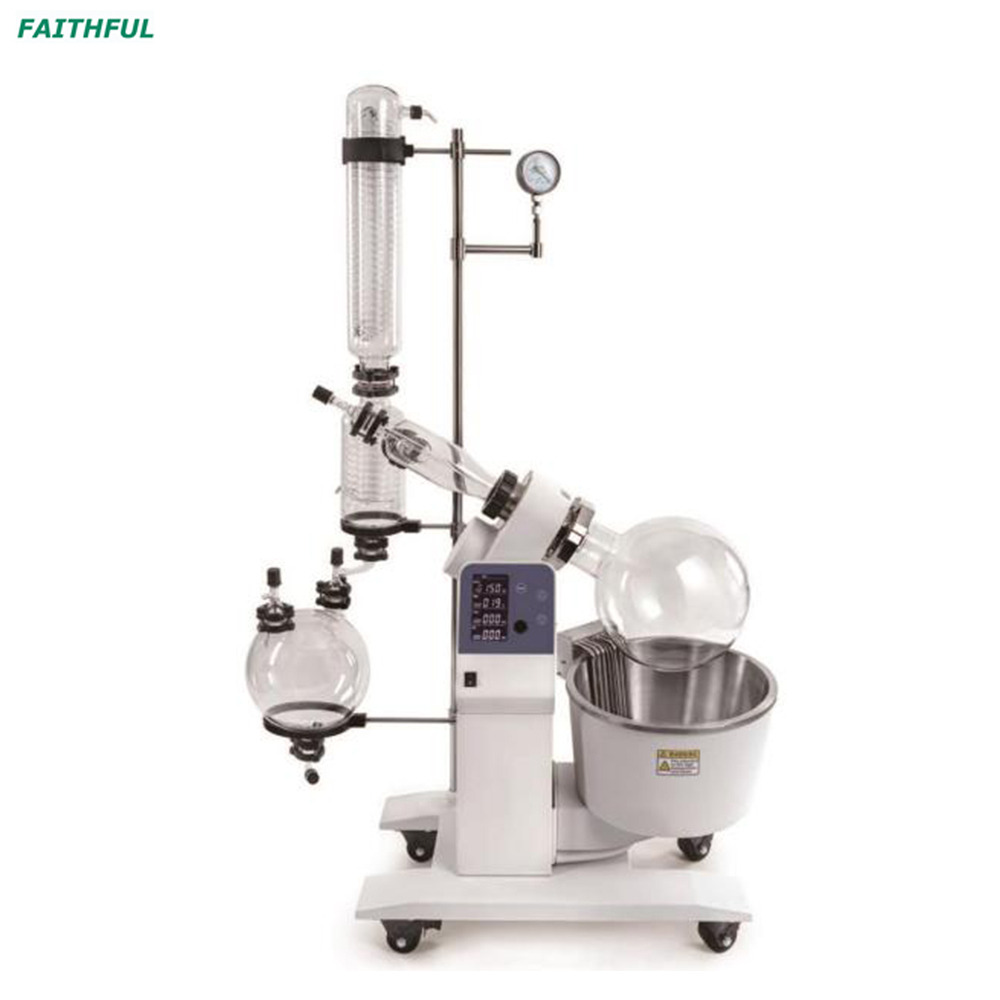

RE200-Pro
Faithful
1. Large LCD digital display with heating temperature, rotation speed, clockwise&anticlockwise and time information.l One-click automatic motor lifting (stroke 180mm), smooth and silent.
2. Water/ oil heating bath with wide temperature range from RT to 180 °C.
3. Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process.
4. Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery.
5. The connector device allows for easy and quick installation of the evaporating flask.
6. PTFE double sealing ring with excellent sealing performance.
7. Switch valve for continuous collection without compromising the system vacuum and solvent distillation.
1. Large LCD digital display with heating temperature, rotation speed, clockwise&anticlockwise and time information.l One-click automatic motor lifting (stroke 180mm), smooth and silent.
2. Water/ oil heating bath with wide temperature range from RT to 180 °C.
3. Speed range from 10 to 150rpm, and interval operation in clockwise and anticlockwise directions for drying process.
4. Two-section vertical triple coil condensing tube with large area and strong evaporation capacity ensuring high-efficiency sample recovery.
5. The connector device allows for easy and quick installation of the evaporating flask.
6. PTFE double sealing ring with excellent sealing performance.
7. Switch valve for continuous collection without compromising the system vacuum and solvent distillation.
Model | RE200-Pro |
Temperature range | Room temp. ~180℃ (water and oil bath) |
Temperature control accuracy | Water: ±1℃ Oil: ±3℃ |
Rotation Speed | 10-150rpm |
Ultimate vacuum | Less 2.6mbar |
Evaporation capacity | Max.4.5L/h(75% Alcohol) |
Temperature control | Micro processer PID control |
Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) |
Time Setting Range | 0-999min |
Lift stroke | Motorized 180mm |
Safety features | Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection |
Evaporation flask | Round flask 20L |
Receiving flask | Round flask 10L with drain valve |
Condenser | Two-section vertical triple coil condenser, cooling surface 1.2m² |
Heating bath size | Ø 450×240mm |
Hose connection | Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm |
Dimension[D×W×H] | 1160×600× 1860mm |
Voltage/Frequency | 220V/50HZ/60HZ |
Power | 4600W |
Heating Power | 4400W |
Model | RE200-Pro |
Temperature range | Room temp. ~180℃ (water and oil bath) |
Temperature control accuracy | Water: ±1℃ Oil: ±3℃ |
Rotation Speed | 10-150rpm |
Ultimate vacuum | Less 2.6mbar |
Evaporation capacity | Max.4.5L/h(75% Alcohol) |
Temperature control | Micro processer PID control |
Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) |
Time Setting Range | 0-999min |
Lift stroke | Motorized 180mm |
Safety features | Motor over-current protection, earth-leakage protection lifting overload protection, Boil-dry protection, Overheating protection |
Evaporation flask | Round flask 20L |
Receiving flask | Round flask 10L with drain valve |
Condenser | Two-section vertical triple coil condenser, cooling surface 1.2m² |
Heating bath size | Ø 450×240mm |
Hose connection | Cooling/suction nozzle outer diameter 16mm, vacuum pump nozzle outer diameter 16mm |
Dimension[D×W×H] | 1160×600× 1860mm |
Voltage/Frequency | 220V/50HZ/60HZ |
Power | 4600W |
Heating Power | 4400W |
