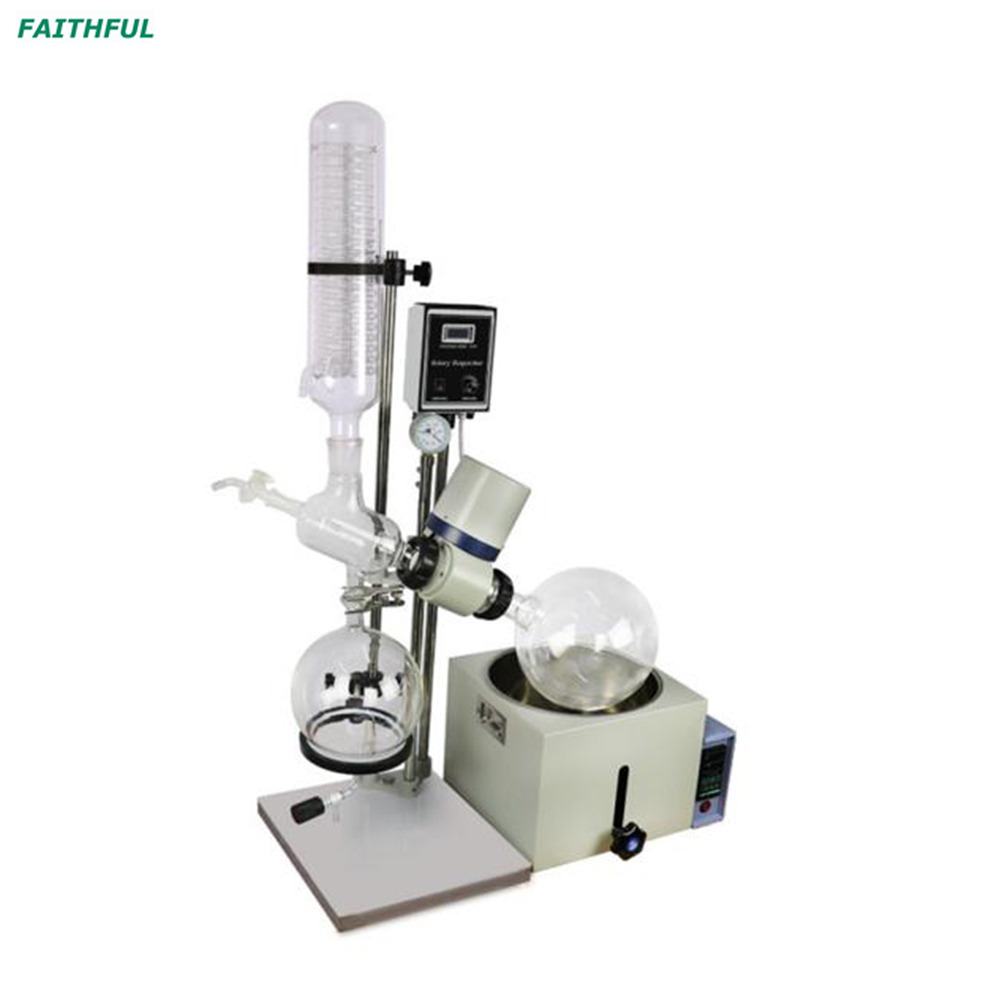

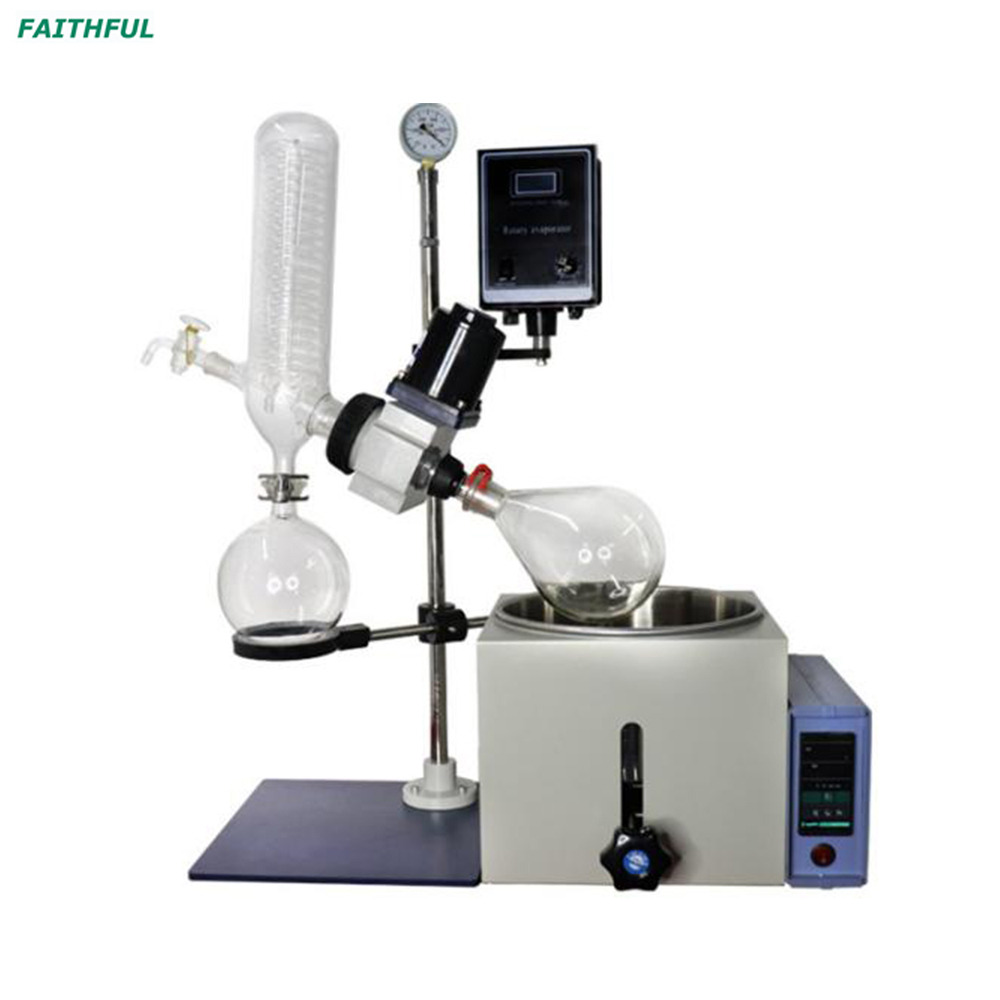

Rotary Evaporator FRE-201D/FRE-301/FRE-501

Water Bath Heating Power(W)

1200W

1500W

1500W

Water Bath Temperature Range(°C)

RT-399℃（Suggest RT- 250℃）

Temperature Precision(C)

±2℃

Lifting

Water Bath Manual Lifting

Sealing

PTFE gasket, fluoro rubber sealing

Evaporation Flask(ml)

1000ml

3000ml

5000ml

Receiving flask(ml)

1000ml

3000ml

3000ml

Condenser Cooling Surface(m?)

0.2 m²

0.25 m²

0.25 m²

Condenser Volume(L)

1.5 L

1.8 L

1.8 L

Vacuum Degree(MPa)

-0.098Mpa（Based on the vacuum degree of the connected vacuum pump）

Rotating Speed(rpm）

0-120 rmp

0-120 rmp

0-120 rpm

Motor Power(W)

40W

40W

40W

Voltage(V/Hz)

220V/50Hz  110V/60HZ

Machine Overall Dimension(mm)

750*350*760

750*390*1100

750*1100*390

Water Bath Dimension(mm)

360*300*230

410*350*260

410*350*260

Water bath volume

7.5 L

11.5

11.5 L
