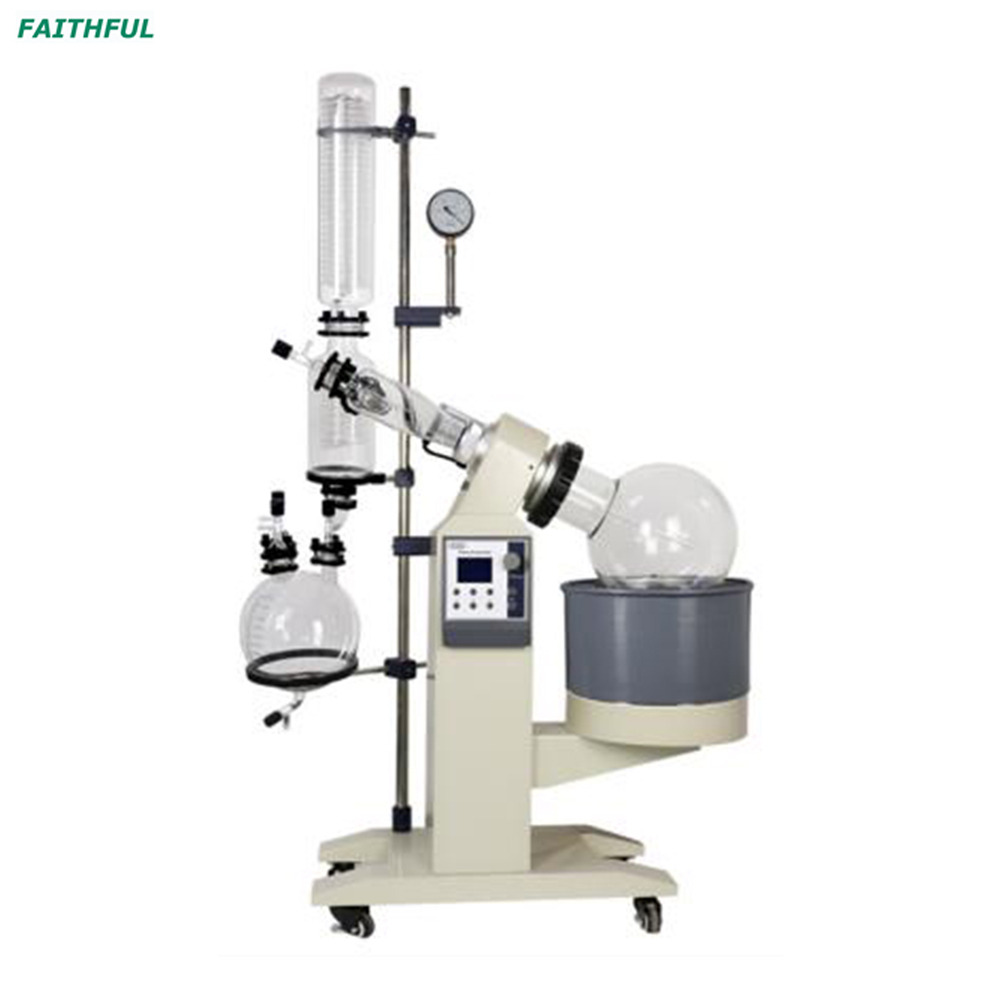

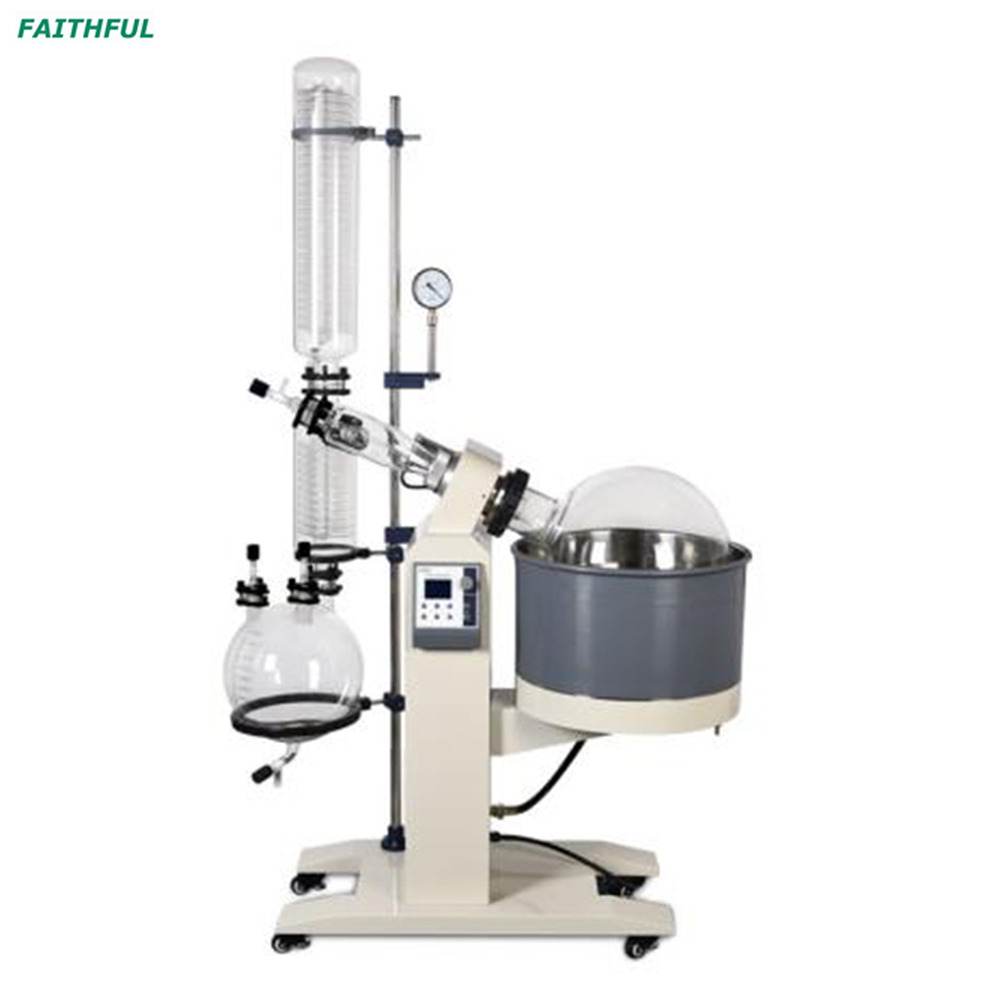

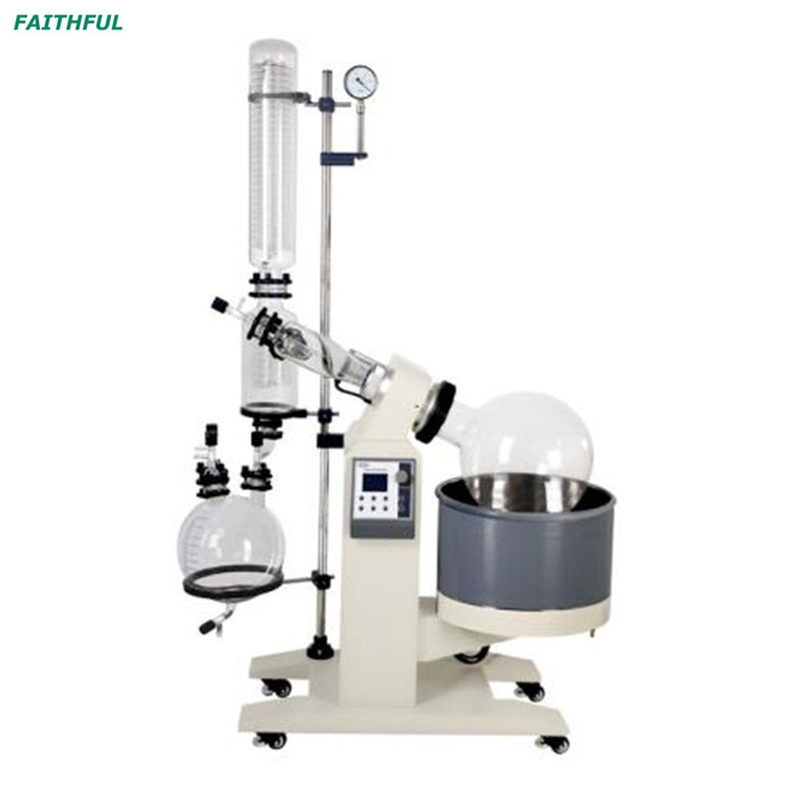

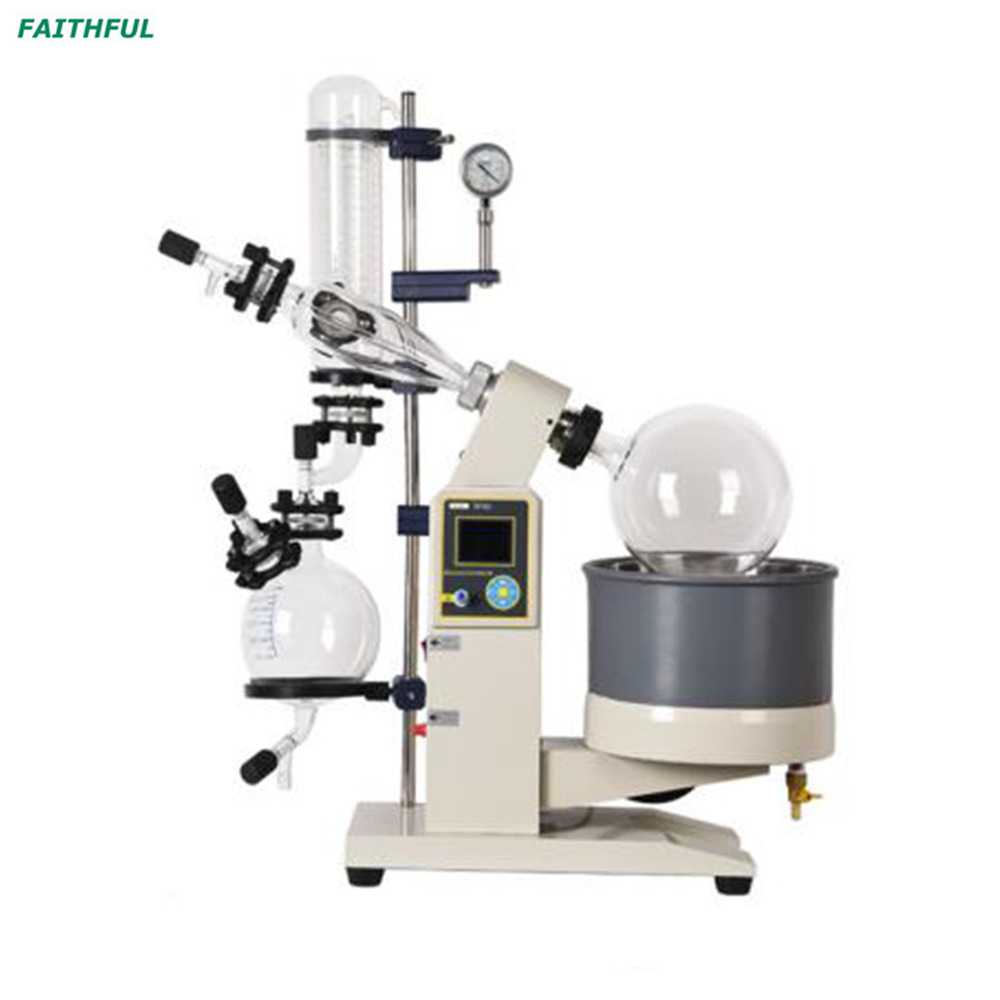

Rotary Evaporator

Main Engine Speed Control

Digital frequency conversion stepless speed regulation

Digital direct current stepless speed

Main Engine Speed (RPM)

10~140

20~130

20~110

Rotary Electric Machine (W)

40

Brushless 250

Temperature Control (℃)

Digital display temperature control,room temperature -99

Maximum Vacuum (Pa)

399.9(Below 3mmHg)

Rotating Bottle (L)

5

10

20

20

Flange Size

Flange 50

Flange 125

Flange 125

Flange 125

Recovery Bottle (L)

3

5

10

20

Condenser Tube

Vertical double coil

Vertical main cold+cold side, high effeciency reflux condenser

Evaporation Capacity (L/h)

Water more than 2
Alcohol more than 4

Water more than 3. 2
Alcohol more than 6.5

Water more than 5
Alcohol more than 11

Water more than 9
Alcohol more than 19

Water Bath Pot Material

Stainless steel

Water Bath Pot Size (mm)

Φ300×170

Φ350×220

Φ450×260

Φ550×320

Lifting Function

Electric lift

Electric + hand lift

Lift Stick (mm)

0~150

0~160

0~190

0~180

Whole Power (KW)

2.0

3.0

4.0

4.0(220-240V)

Outline Dimension (mm)

7650×400×1070

920×550×1700

1250×600×2100

1320×770×2340

Optimum Ambient Temperature

5℃~35℃

Power Supply

Single phase 220V/60HZ

Three phase 220-240V/380v/60Hz
