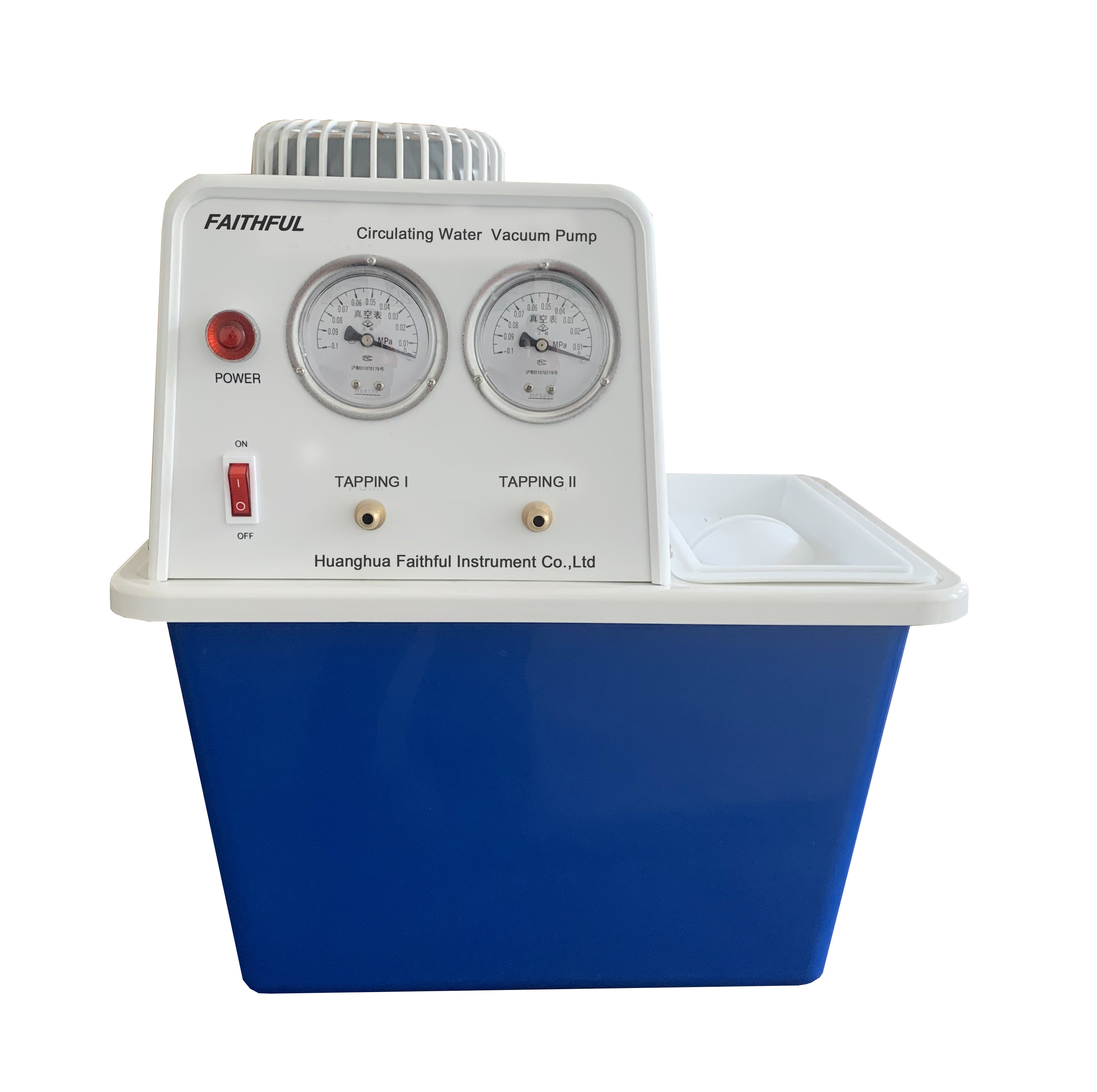

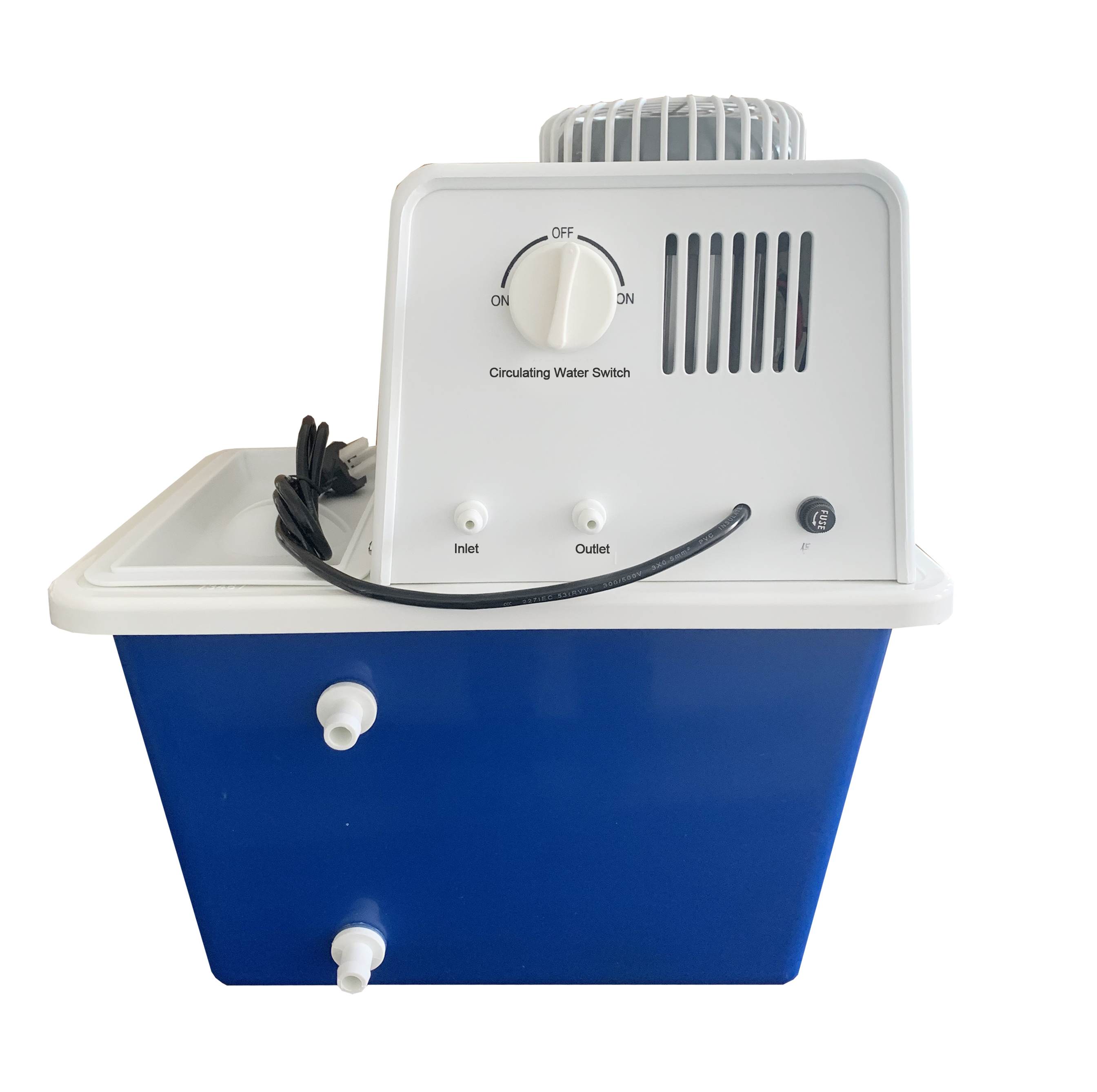

SHZ-D III Circulating Water Vacuum Pump

Availability:
Quantity:

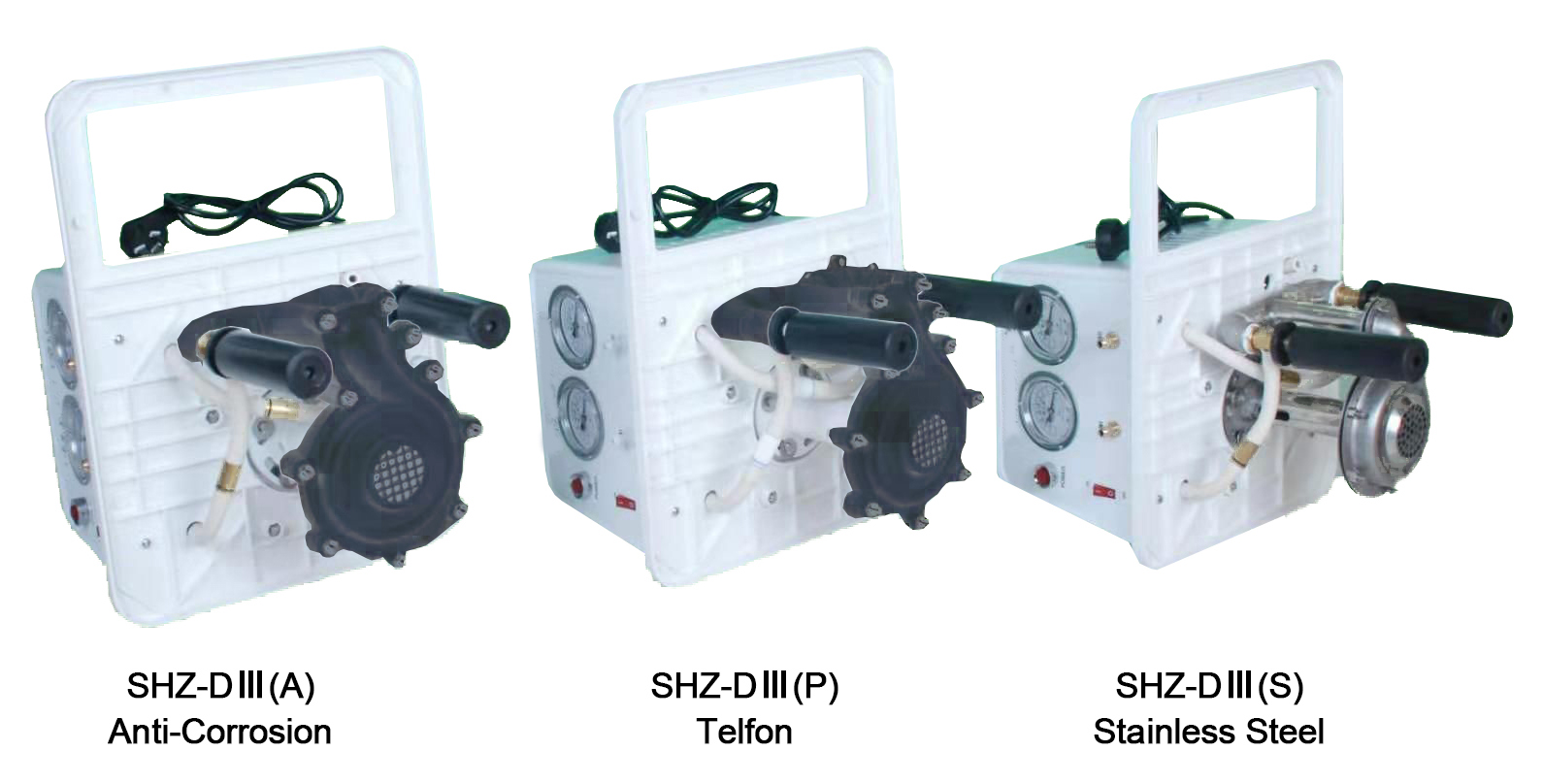

  • SHZ-DIII(A), SHZ-D(P), SHZ-D(S)

  • FAITHFUL

1. Many pumping holes, can be used alone or with two vacuum gauge
2. The material of centre of the body is stainless steel and special plastics. The material of the tank is special antisepsis plastics.
3. Equipped with special fluid muffle to reduce the friction noise of the gas and liguid in water. The vacuum will be higher and more stable.
4. Corrosion resisting, no pollution, low noise, convient to move and can add vacuum control valve if the customer needs.
5. The material of the water tank is special plastics, corrosion resisting to the things with acetone, aether, chloroform and some other chemiclas.






Model





Power





Voltage





Flow





Lift





Machine Material





Tapping

Single Tap Sucking

Rate



Max Vacuum Degree

Water Storage Tank

Volume





Dimension (L*W*H)





Weight

SHZ-D(A)

180W

220V

20L/MIN

8M

Anti-Corrosion

2 pcs

10L/MIN





0.098MPA

15L

400*290*440

15KG

SHZ-D(P)

180W

220V

20L/MIN

8M

Telfon

2 pcs

10L/MIN

15L

400*290*440

15KG

SHZ-D(S)



180W



220V



20L/MIN



8M

Stainless Steel



2 pcs



10L/MIN



15L



400*290*440



15KG

Vacuum pump doesn’t have function of vacuum adjusting for its own, if required, please equip vacuum control device.
