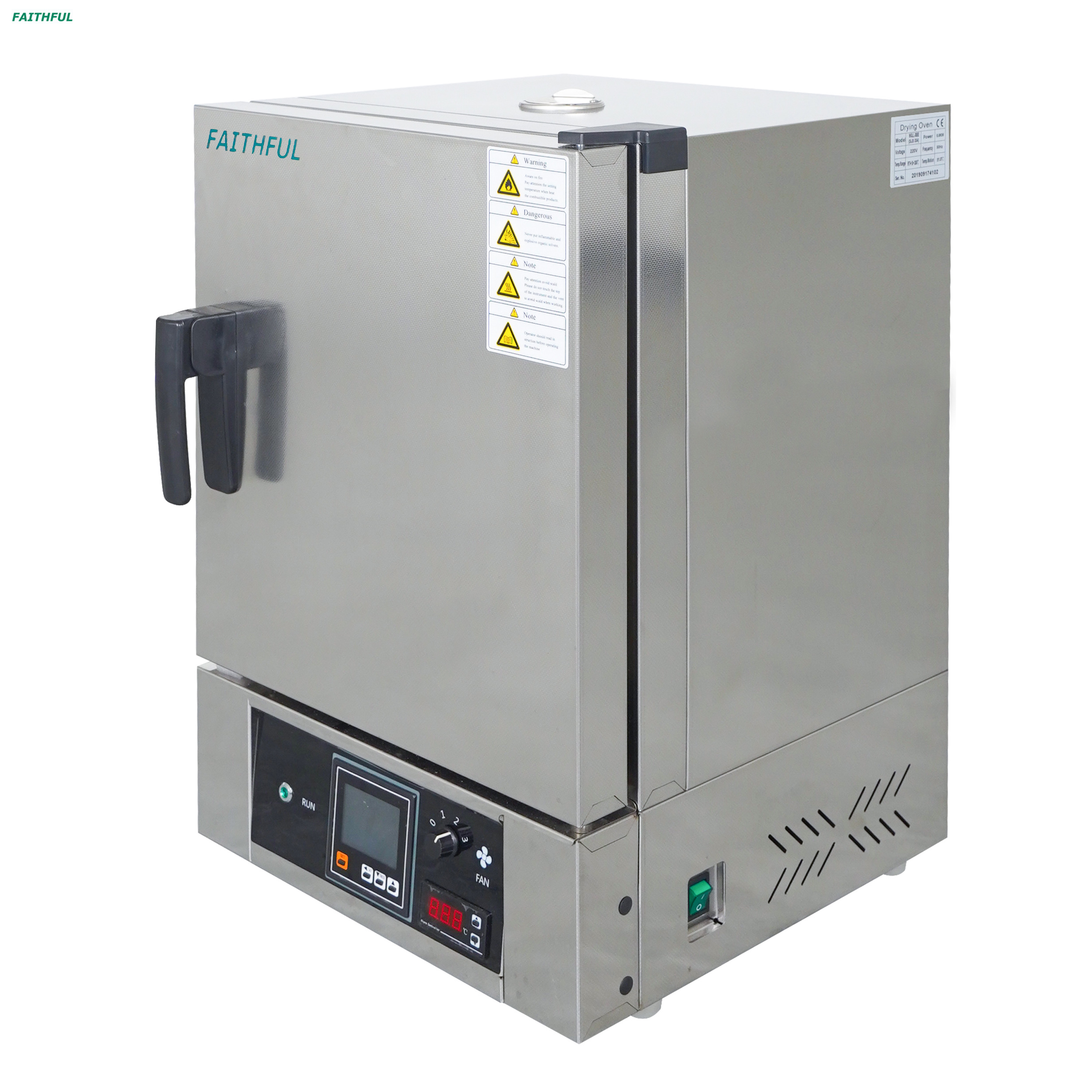

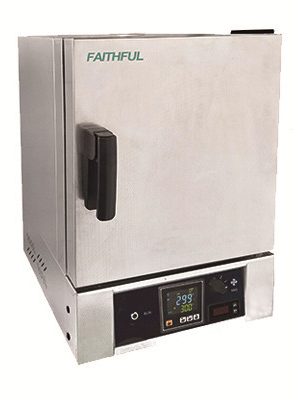

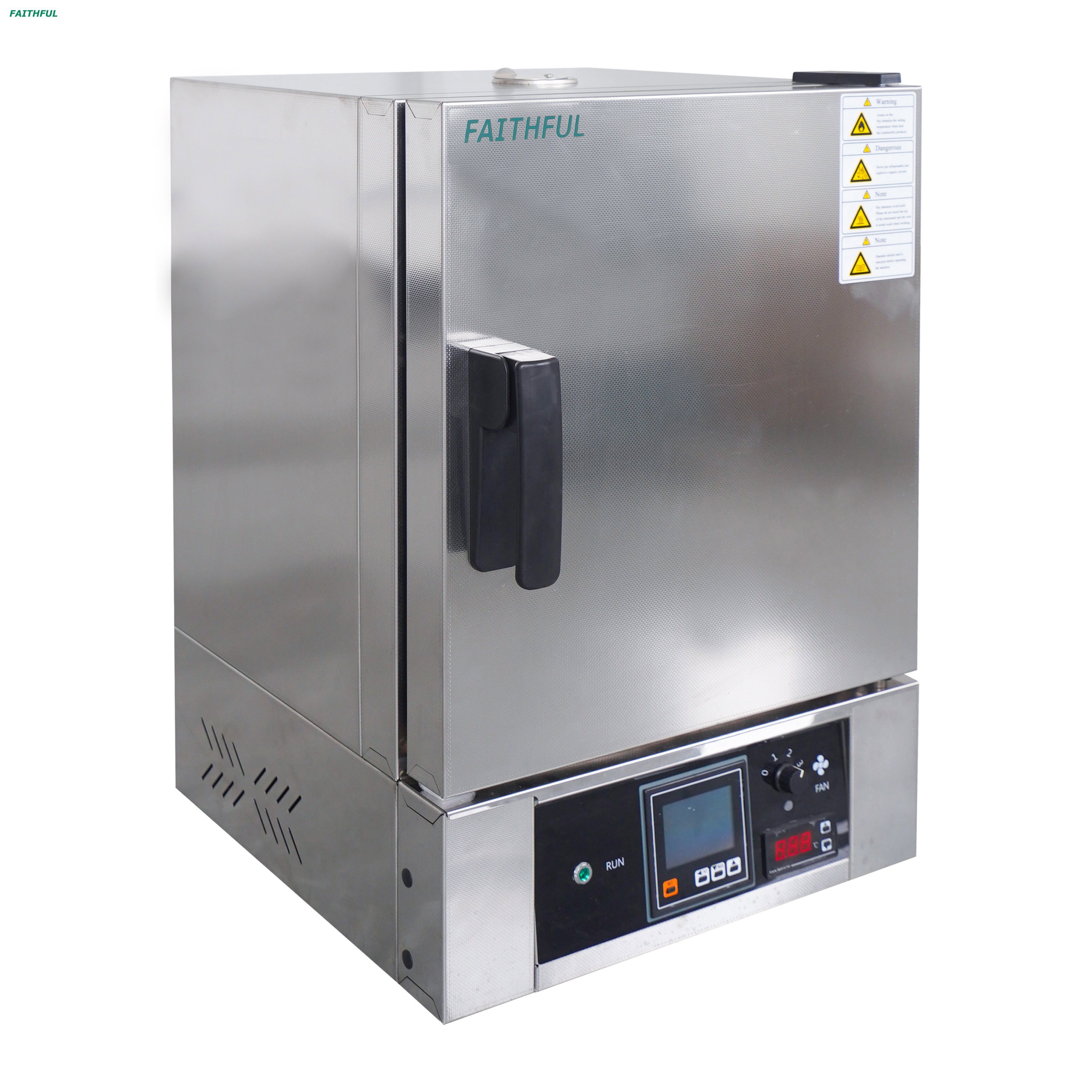

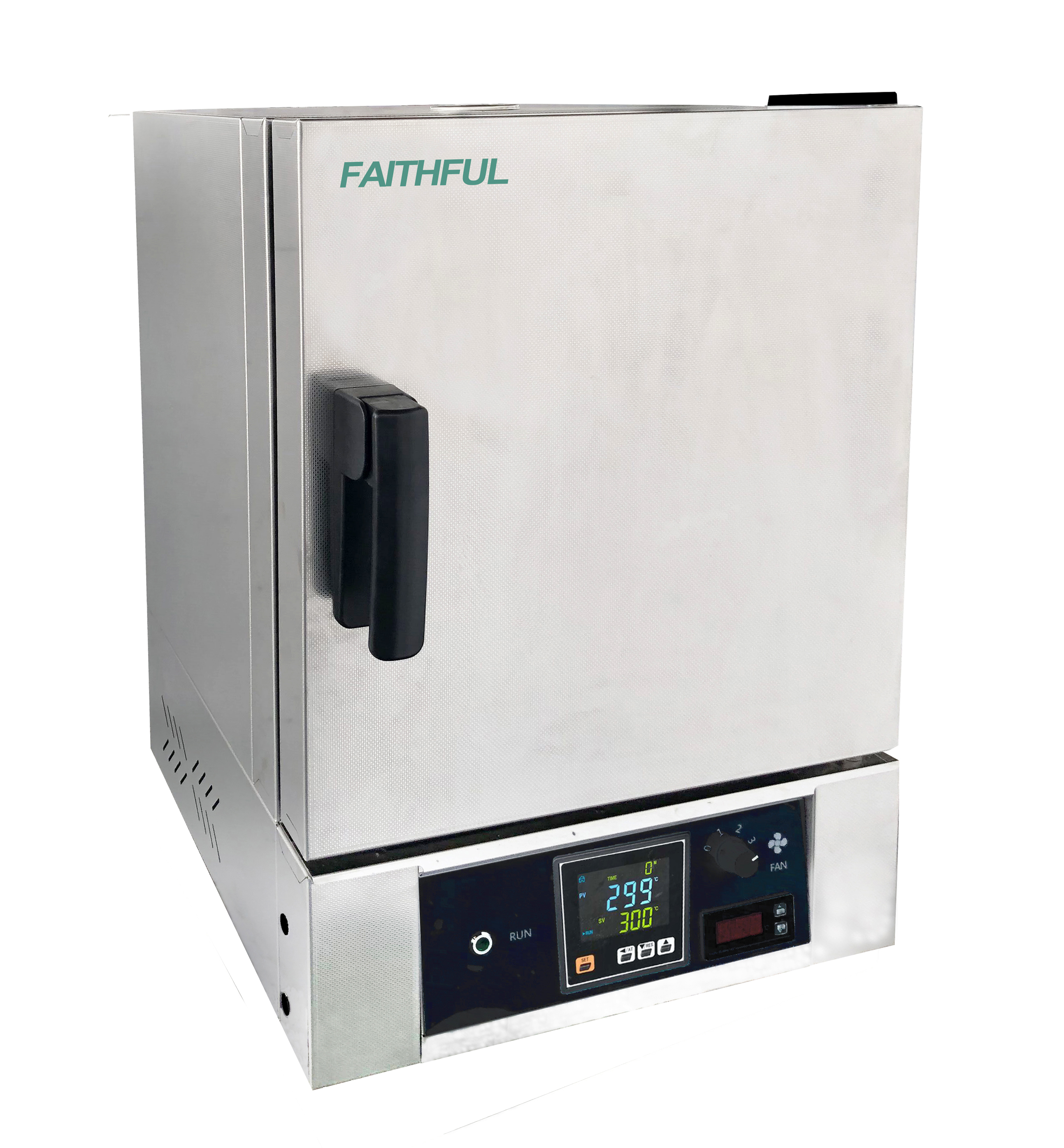

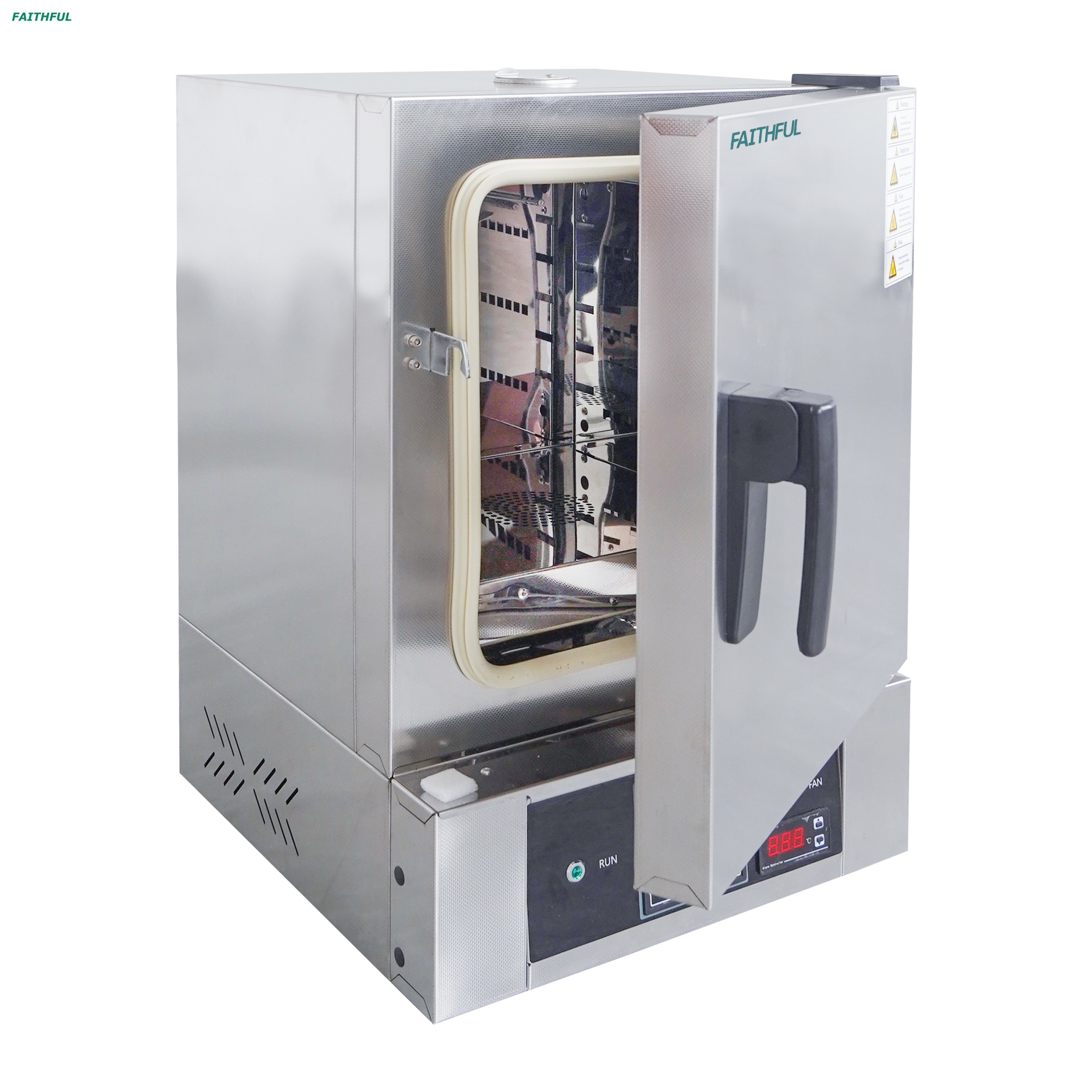

WGLL-30BE(304),WGLL-45BE(304),WGLL-65BE(304),WGLL-85BE(304),WGLL-125BE(304)
FAITHFUL
Characteristics:
WGLL-BE series have the folloeing characteristics other than the above functions.
1.LCD temperature controller.
2.Over-temperature protection system.
3.High precision digital independent temperature limiter.
Characteristics:
WGLL-BE series have the folloeing characteristics other than the above functions.
1.LCD temperature controller.
2.Over-temperature protection system.
3.High precision digital independent temperature limiter.
| Model | WGLL-30BE(SUS304) | WGLL-45BE(SUS304) | WGLL-65BE(SUS304) | WGLL-85BE(SUS304) | WGLL-125BE(SUS304) | |
| Cycle Mode | Forced convection | |||||
| Function | Temp. Range | RT+10-300℃ | ||||
| Temp. Resolution Ratio | 0.1℃ | |||||
| Temp. Motion | ±1℃ | |||||
| Temp. Uniformity | ±2.5% | |||||
| Structure | Inner Chamber | SUS304 | ||||
| Outer Shell | Embossed SUS304 | |||||
| Insulation layer | High quality rock wool board(with CE) | |||||
| Heater | Stainless steel heater | |||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | |
| Exhaust hole | φ35mmtop(with function of test hole) | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | Measuring temperature display on upper LCD screen, setting temperature display on the lower screen | |||||
| Timer | 0-9999min(with timing wait function) | |||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||
| Additional function | sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||
| Sensor | PT100 | |||||
| Safety Device | High precision digital independent temperature limiter, over temperature sound and light alarm | |||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 |
| Exterior size (W*L*H)(mm) | 450*500*690 | 490*540*730 | 540*550*830 | 590*610*830 | 640*640*930 | |
| Packing size (W*L*H)(mm) | 550*585*845 | 590*625*885 | 640*635*985 | 690*695*985 | 740*725*1085 | |
| Volume | 30L | 45L | 65L | 85L | 125L | |
| Max Shelf number | 5 | 6 | 8 | 8 | 11 | |
| Load per rack | 15kg | |||||
| Shelf space | 40mm | |||||
| Power rating (50/60HZ) | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | ||
| Accessory | Shelf | 2 | ||||
| Shelf frame | 4 | |||||
| optional accessories | 5.0-inch true color touch screen; USB data storage | |||||
| Model | WGLL-30BE(SUS304) | WGLL-45BE(SUS304) | WGLL-65BE(SUS304) | WGLL-85BE(SUS304) | WGLL-125BE(SUS304) | |
| Cycle Mode | Forced convection | |||||
| Function | Temp. Range | RT+10-300℃ | ||||
| Temp. Resolution Ratio | 0.1℃ | |||||
| Temp. Motion | ±1℃ | |||||
| Temp. Uniformity | ±2.5% | |||||
| Structure | Inner Chamber | SUS304 | ||||
| Outer Shell | Embossed SUS304 | |||||
| Insulation layer | High quality rock wool board(with CE) | |||||
| Heater | Stainless steel heater | |||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | |
| Exhaust hole | φ35mmtop(with function of test hole) | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | Measuring temperature display on upper LCD screen, setting temperature display on the lower screen | |||||
| Timer | 0-9999min(with timing wait function) | |||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||
| Additional function | sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||
| Sensor | PT100 | |||||
| Safety Device | High precision digital independent temperature limiter, over temperature sound and light alarm | |||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 |
| Exterior size (W*L*H)(mm) | 450*500*690 | 490*540*730 | 540*550*830 | 590*610*830 | 640*640*930 | |
| Packing size (W*L*H)(mm) | 550*585*845 | 590*625*885 | 640*635*985 | 690*695*985 | 740*725*1085 | |
| Volume | 30L | 45L | 65L | 85L | 125L | |
| Max Shelf number | 5 | 6 | 8 | 8 | 11 | |
| Load per rack | 15kg | |||||
| Shelf space | 40mm | |||||
| Power rating (50/60HZ) | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | ||
| Accessory | Shelf | 2 | ||||
| Shelf frame | 4 | |||||
| optional accessories | 5.0-inch true color touch screen; USB data storage | |||||
