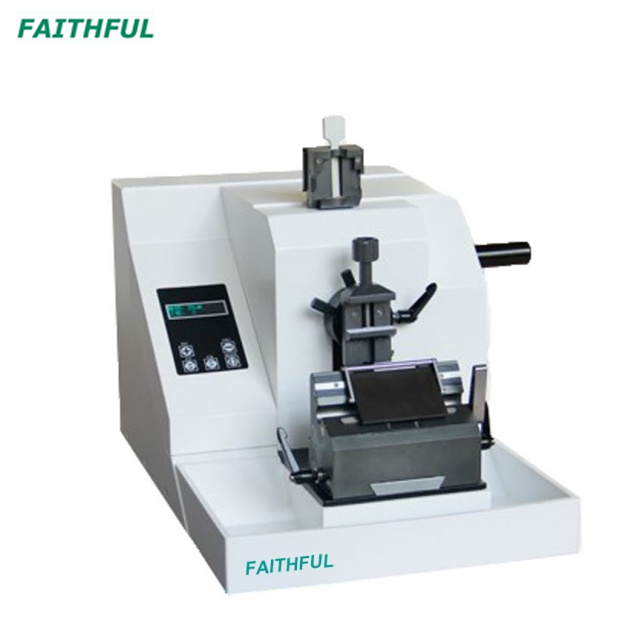

YD-335
FAITHFUL
Adopted Germany Stepper motor ensure slice more precisely ,more reliable and quiet.
Special Blade carrier can use both of High profile blade and Low profile blade
The LCD screen shows slice and trimming thickness ,section counter ,keyboard with controls for thickness, mode and speed
Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer .
The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
The waste tray can be disassembled easily
Sample orientation:8°along the X-Y-axis, rotate 360°
Protection guard
Safety alarm system , overload protection function, sleep mode protection
Universal cassette clamp and standard specimen clamp.
Adopted Germany Stepper motor ensure slice more precisely ,more reliable and quiet.
Special Blade carrier can use both of High profile blade and Low profile blade
The LCD screen shows slice and trimming thickness ,section counter ,keyboard with controls for thickness, mode and speed
Special function of specimen retraction which avoid the damage due to the attrition between sample and the back of knife so that the sectioning is more smooth and the life of the knife is more longer .
The hand wheel can be locked in any position to ensure the sectioning as safe and convenient as possible
The waste tray can be disassembled easily
Sample orientation:8°along the X-Y-axis, rotate 360°
Protection guard
Safety alarm system , overload protection function, sleep mode protection
Universal cassette clamp and standard specimen clamp.
Section thickness range | 0.5- 100μm |
Setting values | From 0.5-2μm in 0.5μm –increments |
From 2-10μm in 1μm –increments | |
Form 10-20μm in 2μm -increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm -increments | |
Trimming section thickness range | 5-500μm (600μm is optional ) |
From 5-10μm in 10μm –increments | |
From 10-100μm in 10μm –increments | |
Form 100-200μm in 20μm -increments | |
Form 200-500μm in 50μm -increments | |
Horizontal specimen stroke | 20 mm |
Vertical specimen stroke | 60mm |
Specimen retraction | 12μm |
Precision error | ± 5% |
Maximum section size | 50 × 45mm/55x55mm optional |
Dimension | 32 x 50 x 30cm |
Net weight | 30kg |
Specimen feed speed 1250/s (click) , 2000μm/s(keep pressing) |
Section thickness range | 0.5- 100μm |
Setting values | From 0.5-2μm in 0.5μm –increments |
From 2-10μm in 1μm –increments | |
Form 10-20μm in 2μm -increments | |
Form 20-50μm in 5μm -increments | |
Form 50-100μm in 10μm -increments | |
Trimming section thickness range | 5-500μm (600μm is optional ) |
From 5-10μm in 10μm –increments | |
From 10-100μm in 10μm –increments | |
Form 100-200μm in 20μm -increments | |
Form 200-500μm in 50μm -increments | |
Horizontal specimen stroke | 20 mm |
Vertical specimen stroke | 60mm |
Specimen retraction | 12μm |
Precision error | ± 5% |
Maximum section size | 50 × 45mm/55x55mm optional |
Dimension | 32 x 50 x 30cm |
Net weight | 30kg |
Specimen feed speed 1250/s (click) , 2000μm/s(keep pressing) |
