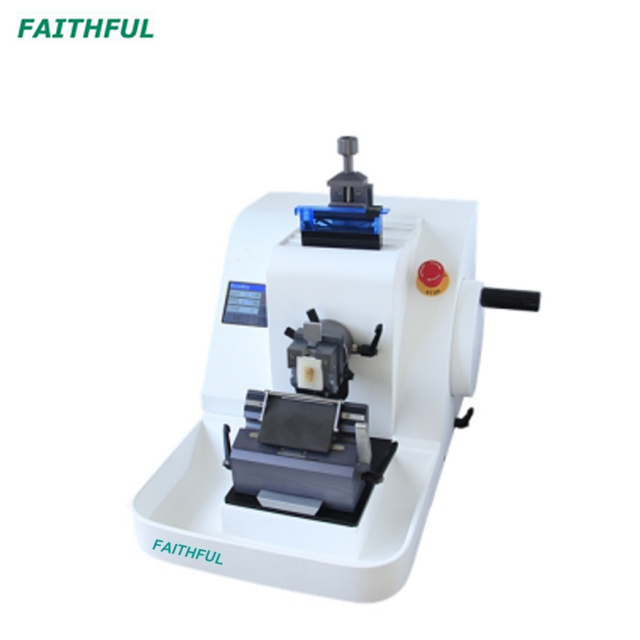

Semi Automatic Rotary Microtome YD-335A(Touch Screen Panel)

Availability:
Quantity:
  • YD-335A

  • FAITHFUL

Touch Screen Panel ;Adopted Germany stepper motor .

Special function of specimen retraction .

The hand wheel can be locked in any position.

Optional Blade carrier which can use Steel Knife or Blade Holder

Universal cassette clamp and standard specimen clamp

Sample orientation:8°along the X-Y-axis, rotate 360°

Safety alarm system, overload protection function, sleep mode protection

The special blade carrier can use high profile blade or low profile blade

Blade carrier have angle adjustment

Protection guard

System of balance of hand wheel force.


Section thickness range0.5- 100μm
Setting valuesFrom 0.5-2μm in 0.5μm –increments
From 2-10μm in 1μm –increments
Form 10-20μm in 2μm -increments
Form 20-50μm in 5μm -increments
Form 50-100μm in 10μm -increments
Trimming section thickness range5-500μm (600μm is optional )
From 5-10μm in 10μm –increments
From 10-100μm in 10μm –increments
Form 100-200μm in 20μm -increments
Form 200-500μm in 50μm -increments
Horizontal specimen stroke20 mm
Vertical specimen stroke60mm
Specimen retraction12μm
Precision error± 5%
Maximum section size50 × 45mm
Dimension520 x 450 x 300mm
Net weight30kg
Power SupplyAC110V-220V 50Hz/60Hz
