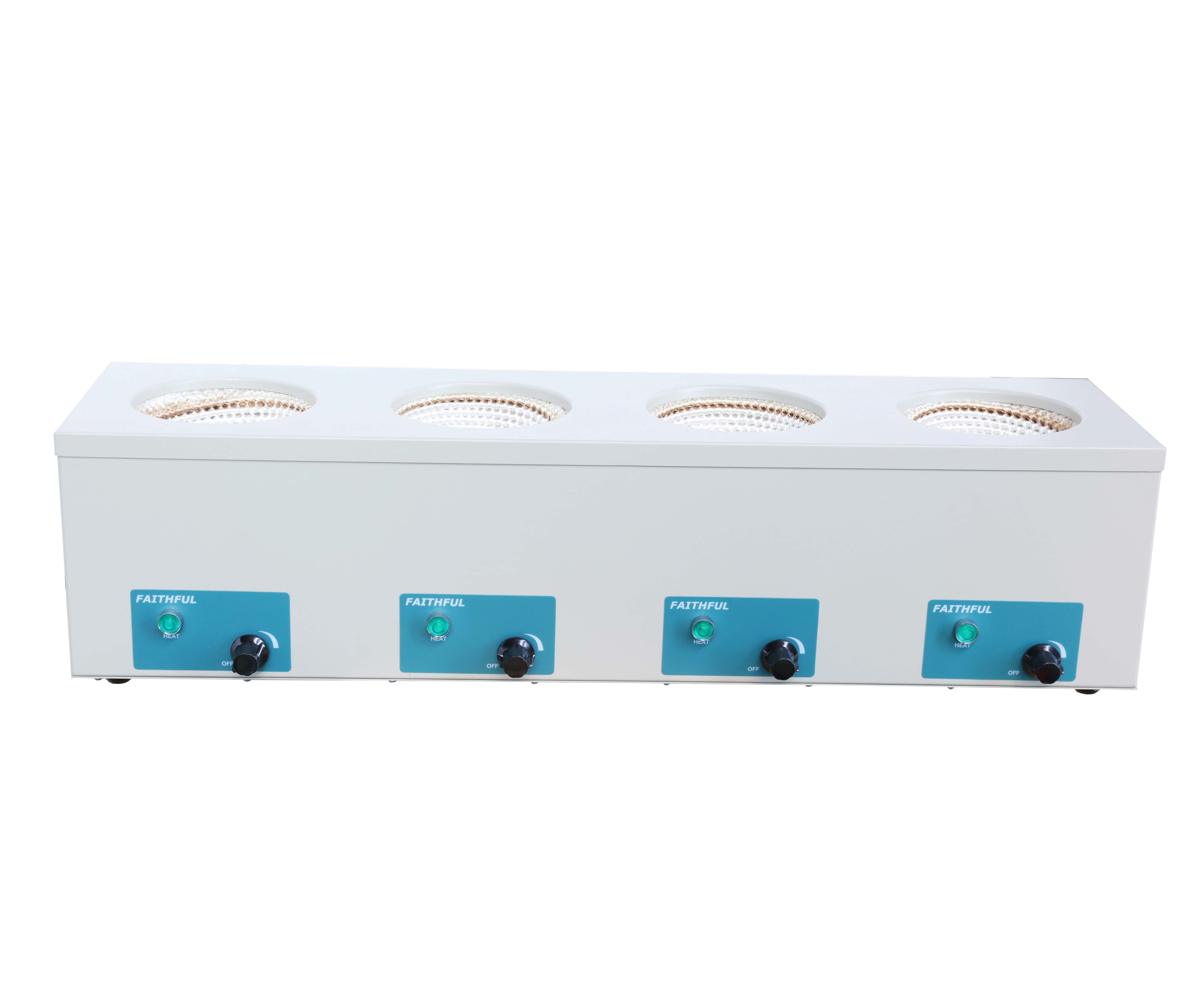

98-IV-B,98-V-B
FAITHFUL
Product Description
1. 98-IV-B： Electronic temperature regulation heating mode.
2. 98-V-B: Electronic temperature regulation heating mode .Heating and stirring can proceed simultaneously; stepless speed adjustment.
3.98-V-B model without 100ml
Product Description
1. 98-IV-B： Electronic temperature regulation heating mode.
2. 98-V-B: Electronic temperature regulation heating mode .Heating and stirring can proceed simultaneously; stepless speed adjustment.
3.98-V-B model without 100ml
| Model | 98-IV-B/98-V-B | ||||||||||||
| Function | Specific ation (ml) | 2 × | 2 × | 2 × | 2 × | 4 × | 4 × | 4 × 500 | 4 × 1000 | 6 × 100 | 6 × 250 | 6 × 500 | 6 × 1000 |
| Heating mode | Surface heat conduction | ||||||||||||
| Surface Max. temperature | 450℃ | ||||||||||||
| Temp. range | Rt+vfc20～250℃ | ||||||||||||
| Speed range | 98-IV-B :no/98-V-B：0～1400rpm | ||||||||||||
| Structure | Heating element | Nickel chromium alloy wire | |||||||||||
Stir bar | 98-IV-B :no /98-V-B：PTEF | ||||||||||||
Outer shell | Cold rolled steel plate, surface spraying | ||||||||||||
| Motor power | 98-IV-B :no/98-V-B：0.01kW | ||||||||||||
| Heating ower （kW） | 2× 0.1 | 2× 0.15 | 2× 0.25 | 2× 0.35 | 4× 0.1 | 4× 0.15 | 4× 0.25 | 4× 0.35 | 6× 0.1 | 6× 0.15 | 6× 0.25 | 6× 0.35 | |
| Controller | Work model | Continuous | |||||||||||
| Specification | Exterior Size (mm) | 280 *140 *106 | 320 *160 *170 | 360 *180 *180 | 420 *210 *200 | 530 *140 *160 | 610 *160 *170 | 690 *180 *180 | 810 *210 *200 | 820 *140 *160 | 940 *160 *170 | 1060 *180 *180 | 1240 *210 *200 |
| Packing size(mm) | 320 *180 *190 | 360 *190 *200 | 400 *220 *210 | 570 *180 *190 | 570 *180 *190 | 650 *190 *200 | 730 *220 *210 | 850 *250 *230 | 860 *180 *190 | 980 *190 *200 | 1100 *220 *210 | 1280 *250 *230 | |
| Voltage | 100～120V or 200～240V | 200～240V | |||||||||||
| N.W.(Kg) | 4 | 4 | 4 | 7 | 8 | 8 | 8 | 14 | 12 | 12 | 12 | 21 | |
| G.W.(Kg) | 5 | 5 | 5 | 8 | 10 | 10 | 10 | 16 | 15 | 15 | 15 | 24 | |
| Model | 98-IV-B/98-V-B | ||||||||||||
| Function | Specific ation (ml) | 2 × | 2 × | 2 × | 2 × | 4 × | 4 × | 4 × 500 | 4 × 1000 | 6 × 100 | 6 × 250 | 6 × 500 | 6 × 1000 |
| Heating mode | Surface heat conduction | ||||||||||||
| Surface Max. temperature | 450℃ | ||||||||||||
| Temp. range | Rt+vfc20～250℃ | ||||||||||||
| Speed range | 98-IV-B :no/98-V-B：0～1400rpm | ||||||||||||
| Structure | Heating element | Nickel chromium alloy wire | |||||||||||
Stir bar | 98-IV-B :no /98-V-B：PTEF | ||||||||||||
Outer shell | Cold rolled steel plate, surface spraying | ||||||||||||
| Motor power | 98-IV-B :no/98-V-B：0.01kW | ||||||||||||
| Heating ower （kW） | 2× 0.1 | 2× 0.15 | 2× 0.25 | 2× 0.35 | 4× 0.1 | 4× 0.15 | 4× 0.25 | 4× 0.35 | 6× 0.1 | 6× 0.15 | 6× 0.25 | 6× 0.35 | |
| Controller | Work model | Continuous | |||||||||||
| Specification | Exterior Size (mm) | 280 *140 *106 | 320 *160 *170 | 360 *180 *180 | 420 *210 *200 | 530 *140 *160 | 610 *160 *170 | 690 *180 *180 | 810 *210 *200 | 820 *140 *160 | 940 *160 *170 | 1060 *180 *180 | 1240 *210 *200 |
| Packing size(mm) | 320 *180 *190 | 360 *190 *200 | 400 *220 *210 | 570 *180 *190 | 570 *180 *190 | 650 *190 *200 | 730 *220 *210 | 850 *250 *230 | 860 *180 *190 | 980 *190 *200 | 1100 *220 *210 | 1280 *250 *230 | |
| Voltage | 100～120V or 200～240V | 200～240V | |||||||||||
| N.W.(Kg) | 4 | 4 | 4 | 7 | 8 | 8 | 8 | 14 | 12 | 12 | 12 | 21 | |
| G.W.(Kg) | 5 | 5 | 5 | 8 | 10 | 10 | 10 | 16 | 15 | 15 | 15 | 24 | |
