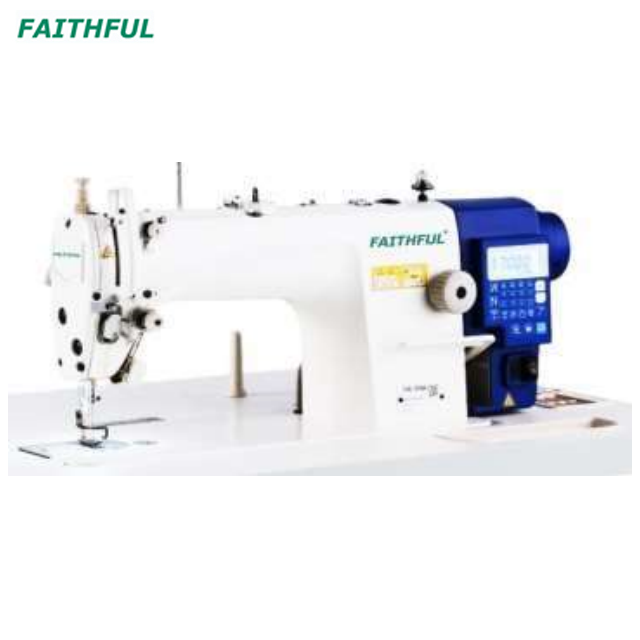

Single Needle Direct-Drive Lock Stitch Sewing Machine

Availability:
Quantity:
  • DDL-7000AS-7

  • FAITHFUL

Direct-drive, 1-needle, Lockstitch Machine with Automatic Thread Trimmer.

Energy-saving servomotor is installed in the direct-drive style.

The direct drive system has been adopted.

Both the control box and the operation panel areintegrated with the machine head.

Dramatically advanced availability for material.

The operation panel is equipped box with ease with many different functions.

The power switch is built into the control box, making it easy to install the machine.

Connection to the external output terminal is also very easy.

The USB port is located below the control panel.

The thread take-up lever which provides a wider sewing range is adopted.

Needle bar stroke is 35 mm, with this feature, the sewing machine is able to sew many different types of materials ranging from light-weight ones to medium-weight denim.


Application: Light to medium weight/ Heavy weight

Sewing speed: 4500sti/min*

Stitch length: 5mm

Presser foot: By hand: 5.5mm, By knee: 13mm

Lubricating oil: Machine Oil 7 or equivalent to ISO VG7

Needle: DB × 1 (#14) #14~#18

Power consumption: 210VA-240VA

Weight of machine head: 34-36kg

Dimensions (mm): 830 × 278 × 455

Complete with stand & Table, Standard Accessories
