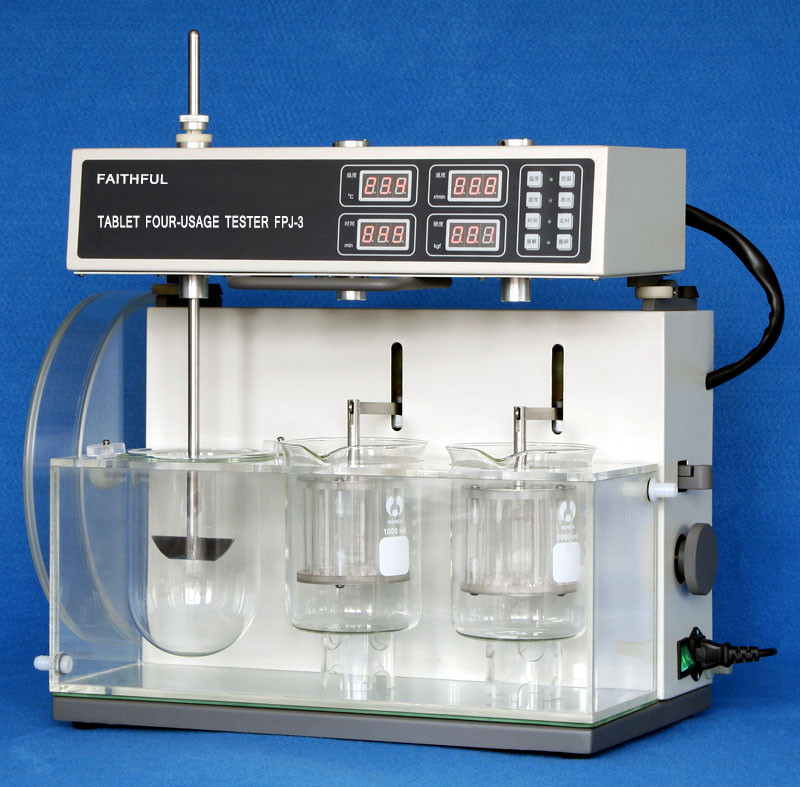

Features
●Intellectualized,auto-control,
auto-test, auto-diagnose, auto-alarm.
●The circular water current pumped by
magnetism pump can heat the system
equally, and the bath liquid can achieve an even temperature.
●Temperature is high accurately auto-controlled.
●Auto stop at timing point.
●Parameters can be preset at any time, the preset and real data are displayed alternately in time.
●It has three vessels and three poles arranged on one line. The head part of the instrument can be
artificially turned over smoothly and flexibly.
●Two disintegrations run synchronously. Auto stop at timing point.
●High accuracy is achieved in testing rotary speed and counting friability.
●The hardness has high accuracy press sensor and hardness data is displayed in Newton.
●It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
●Auto-display, auto-memorize, auto-reset, auto-retest.
Features
●Intellectualized,auto-control,
auto-test, auto-diagnose, auto-alarm.
●The circular water current pumped by
magnetism pump can heat the system
equally, and the bath liquid can achieve an even temperature.
●Temperature is high accurately auto-controlled.
●Auto stop at timing point.
●Parameters can be preset at any time, the preset and real data are displayed alternately in time.
●It has three vessels and three poles arranged on one line. The head part of the instrument can be
artificially turned over smoothly and flexibly.
●Two disintegrations run synchronously. Auto stop at timing point.
●High accuracy is achieved in testing rotary speed and counting friability.
●The hardness has high accuracy press sensor and hardness data is displayed in Newton.
●It tests tablet hardness continuously. The tablet is loaded and pressed artificially.
●Auto-display, auto-memorize, auto-reset, auto-retest.
Specifications
Model | PJ-3 |
Stations of dissolution | 3 |
Temperature range | (20~45) ℃ ± 0.3 ℃ |
Speed range | (20~200 )rpm ± 2 rpm |
Automatic time range | (1~900) min ± 0.5 min |
Paddle radial run-out | ± 0.5 mm |
Basket radial run-out | ± 1.0 mm |
Basket assemblies | 2 |
Nacelle back and forth frequency | (30~32) / min |
Nacelle back and forth range | (55±2) mm |
Cylinder number | 1 |
Drum’s size radius | Φ286mm depth: 39mm |
Tablet fall height | 156 mm |
Rotation speed | 25 rpm ± 1 rpm |
Rotation count | 100 r ± 1 r |
Hardness range | (2~200) N |
Probe procession range | (3~20) mm |
Dimension | (59×30×48) cm |
Power | 220V/50Hz/600W or 110V/60Hz/600W |
Specifications
Model | PJ-3 |
Stations of dissolution | 3 |
Temperature range | (20~45) ℃ ± 0.3 ℃ |
Speed range | (20~200 )rpm ± 2 rpm |
Automatic time range | (1~900) min ± 0.5 min |
Paddle radial run-out | ± 0.5 mm |
Basket radial run-out | ± 1.0 mm |
Basket assemblies | 2 |
Nacelle back and forth frequency | (30~32) / min |
Nacelle back and forth range | (55±2) mm |
Cylinder number | 1 |
Drum’s size radius | Φ286mm depth: 39mm |
Tablet fall height | 156 mm |
Rotation speed | 25 rpm ± 1 rpm |
Rotation count | 100 r ± 1 r |
Hardness range | (2~200) N |
Probe procession range | (3~20) mm |
Dimension | (59×30×48) cm |
Power | 220V/50Hz/600W or 110V/60Hz/600W |
