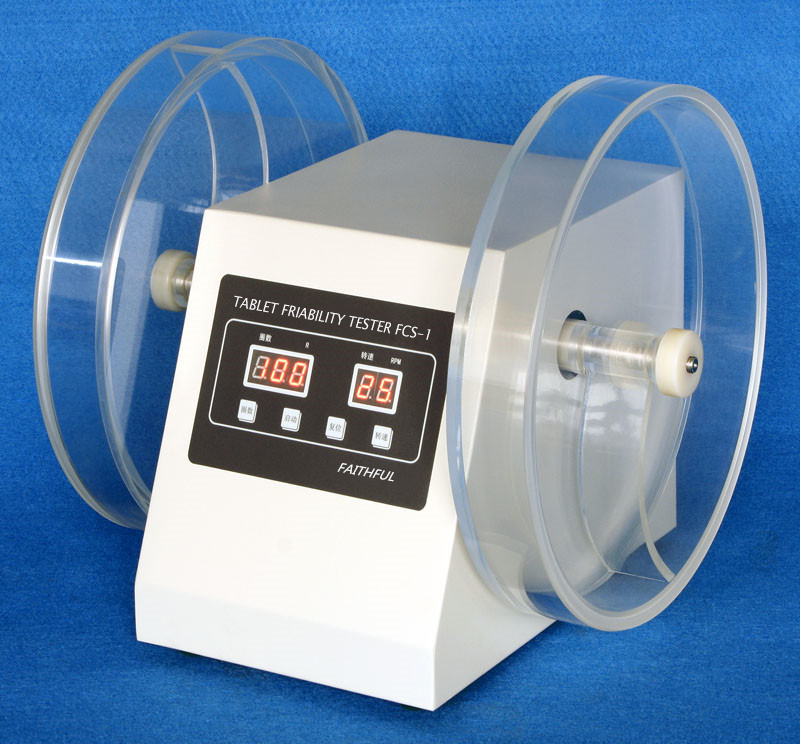

CS-1 Features
●Two drums run synchronously. Auto stop at timing point.
●The drum is made of high quality hyaline acryl.
●The speed and revolution of the drum can be preset at any time,
either preset or real data is displayed on the LED.
●A MPU is used to control all operations, high accuracy is
achieved in testing rotary speed and circle number.
●Automation: auto-test, auto-diagnose, auto-alarm.

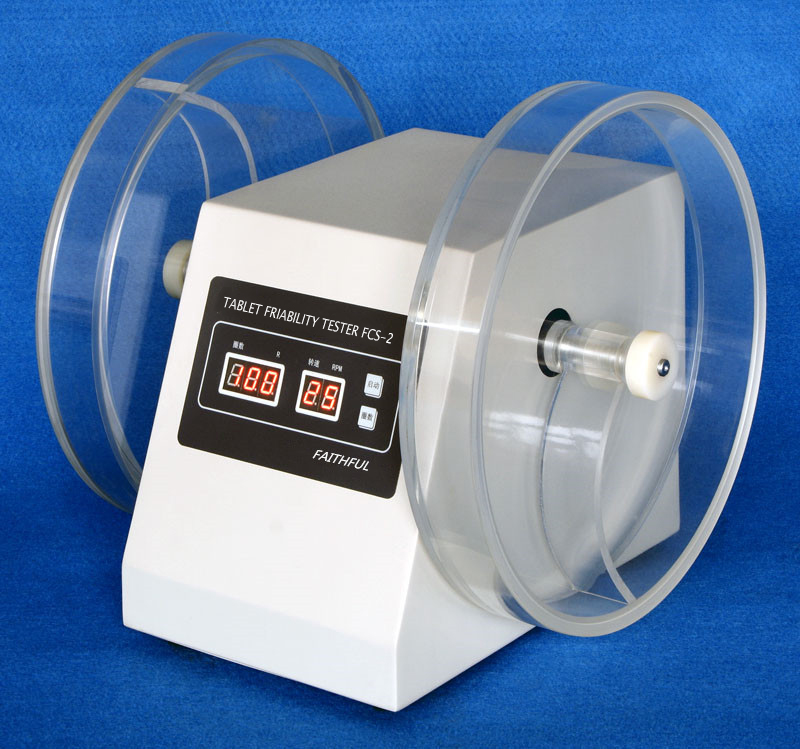

CS-2 Features
●Two drums run synchronously. Auto stop at timing point.
●The drum is made of high quality hyaline acryl.
●The speed and revolution of the drum is constant,
either preset or real data is displayed on the LED.
●A MPU is used to control all operations, high accuracy is
achieved in testing rotary speed and circle number.
●Automation: auto-test, auto-diagnose, auto-alarm.
CS-1 Features
●Two drums run synchronously. Auto stop at timing point.
●The drum is made of high quality hyaline acryl.
●The speed and revolution of the drum can be preset at any time,
either preset or real data is displayed on the LED.
●A MPU is used to control all operations, high accuracy is
achieved in testing rotary speed and circle number.
●Automation: auto-test, auto-diagnose, auto-alarm.
CS-2 Features
●Two drums run synchronously. Auto stop at timing point.
●The drum is made of high quality hyaline acryl.
●The speed and revolution of the drum is constant,
either preset or real data is displayed on the LED.
●A MPU is used to control all operations, high accuracy is
achieved in testing rotary speed and circle number.
●Automation: auto-test, auto-diagnose, auto-alarm.
Specifications
Model | CS-1 | CS-2 |
Cylinder number | 2 | 2 |
Cylinder radius | Φ286mm | Φ286mm |
Cylinder depth | 39mm | 39mm |
Tablet fall height | 156mm | 156mm |
Rotation speed | 20-90rpm | 25rpm |
Rotation Speed accuracy | ±1rpm | ±1rpm |
Rotation count | (10~900) r | 100 r |
Rotation count accuracy | ±1r | ±1r |
Power | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W |
Dimension | (370×300×340)mm³ | (370×300×340)mm³ |
Specifications
Model | CS-1 | CS-2 |
Cylinder number | 2 | 2 |
Cylinder radius | Φ286mm | Φ286mm |
Cylinder depth | 39mm | 39mm |
Tablet fall height | 156mm | 156mm |
Rotation speed | 20-90rpm | 25rpm |
Rotation Speed accuracy | ±1rpm | ±1rpm |
Rotation count | (10~900) r | 100 r |
Rotation count accuracy | ±1r | ±1r |
Power | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W | 220V/ 50Hz/ 50W or 110V/ 60Hz/ 50W |
Dimension | (370×300×340)mm³ | (370×300×340)mm³ |
