Product Description
1. SHHW21.420AII model cover for the two holes water bath, can be used as a digital two holes water bath.

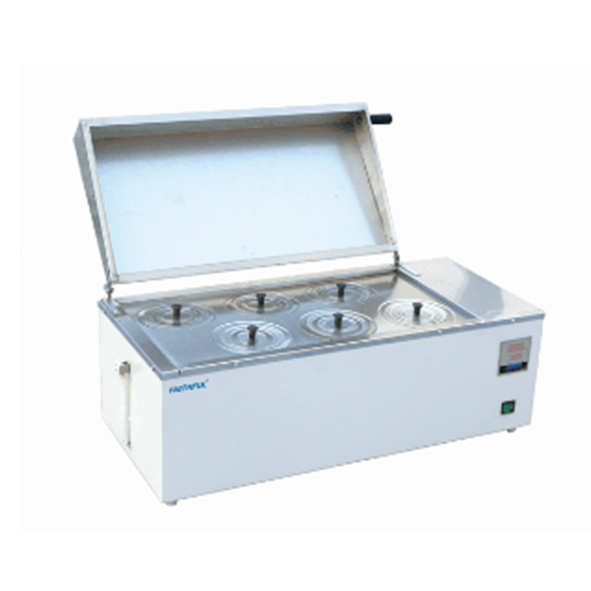

2.SHHW21.600AII model cover for the six holes water bath, can be used as a digital six holes water bath.
Product Description
1. SHHW21.420AII model cover for the two holes water bath, can be used as a digital two holes water bath.
2.SHHW21.600AII model cover for the six holes water bath, can be used as a digital six holes water bath.

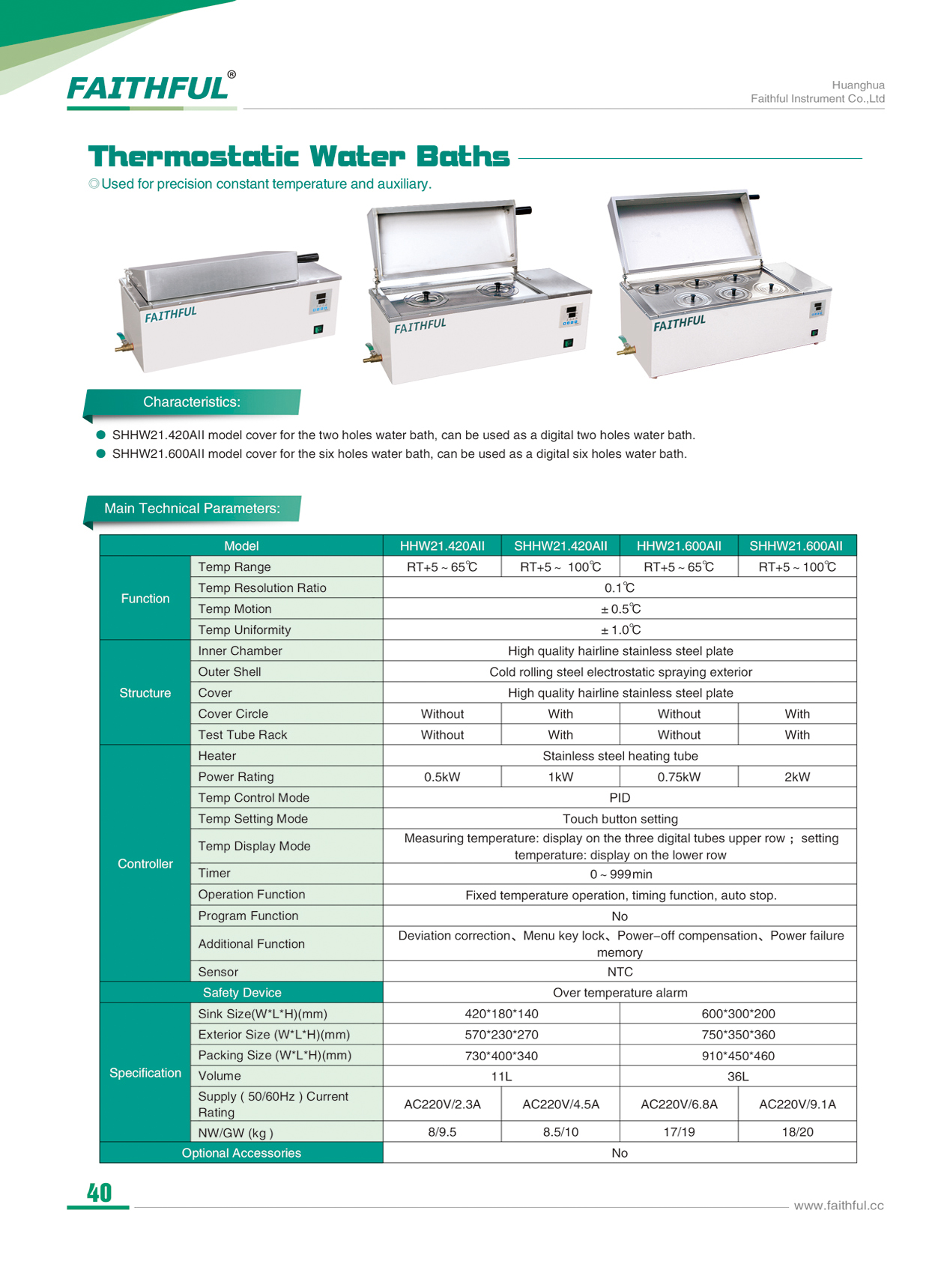

| Model | HHW
21.420AII | SHHW
21.420AII | HHW
21.600AII | SHHW
21.600AII |
| Function | Tem. Range | RT+
5～65℃ | RT+
5～ 100℃ | RT+
5～65℃ | RT+
5～100℃ |
Tem. Resolution
Ratio | 0.1℃ |
| Tem. Motion | ±0.5℃ |
| Tem. Uniformity | ±1.0℃ |
| Structure | Inner Chamber | High quality hairline stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Cover | High quality hairline stainless steel plate |
| Cover circle | Without | With | Without | With |
| Test tube rack | Without | With | Without | With |
| Controller | Heater | Stainless steel heating tube |
| Power Rating | 0.5kW | 1kW | 0.75kW | 2kW |
Tem. control
mode | PID |
Tem. setting
mode | Touch button setting |
Tem. display
mode | Measuring temperature: display on the three
digital tubes upper row ；setting
temperature: display on the lower row |
| Timer | 0～999min（with timing wait function） |
| Operation function | Fixed temperature operation,
timing function, auto stop. |
| Program function | No |
| Additional function | Deviation correction、Menu key lock、
Power-off compensation、Power failure memory |
| Sensor | CU50 |
| Safety device | Over temperature alarm |
| Specification | Sink size
(W*L*H)
(mm) | 420*180*140 | 600*300*200 |
Exterior size
(W*L*H)
(mm) | 570*230*270 | 750*350*360 |
Packing size
(W*L*H)
(mm) | 720*320*380 | 900*440*440 |
| Volume | 11L | 36L |
Supply
（50/60Hz)
Current rating | AC220V/
2.3A | AC220V/
4.5A | AC220V/
6.8A | AC220V/
9.1A |
| NW/GW (kg） | 8/9.5 | 8.5/10 | 17/19 | 18/20 |
| Optional accessories | Different sizes can be customized, can add power off protection function when water shortage. |
