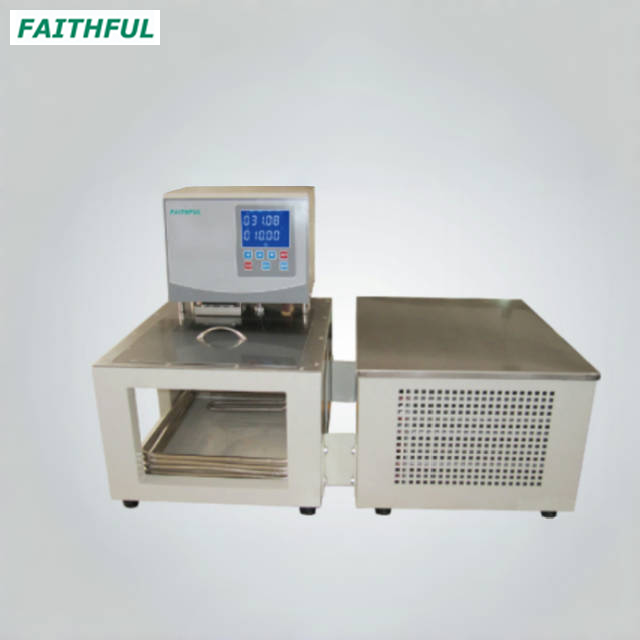

Transparent on three sides;
LCD display, PlD automatic control;
Imported acrylic glass
Transparent on three sides;
LCD display, PlD automatic control;
Imported acrylic glass
Model Temperature Range(℃) Digital display resolution(℃) Temperature fluctuation（±℃） Working Tank Volume (mm³) Working slot opening（mm²） Slot depth（mm） Cyclic mode PX-010TD-I 0-80 0.1 0.1 250*200*200 198*140 200 Internal circulation PX-010TD-II 0-80 0.01 0.05 250*200*200 198*140 200 Internal circulation PX-010TD-III 0-80 0.001 0.01-0.02 250*200*200 198*140 200 Internal circulation PX-015TD-I 0-80 0.1 0.1 300*250*200 248*160 200 Internal circulation PX-015TD-II 0-80 0.01 0.05 300*250*200 248*160 200 Internal circulation PX-015TD-III 0-80 0.001 0.01-0.02 300*250*200 248*160 200 Internal circulation PX-018TD-I 0-80 0.1 0.1 250*200*350 198*140 350 Internal circulation PX-018TD-II 0-80 0.01 0.05 250*200*350 198*140 350 Internal circulation PX-018TD-III 0-80 0.001 0.01-0.02 250*200*350 198*140 350 Internal circulation PX-030TD-I 0-80 0.1 0.1 420*300*250 300*298 250 Internal circulation PX-030TD-II 0-80 0.01 0.05 420*300*250 300*298 250 Internal circulation PX-030TD-III 0-80 0.001 0.01-0.02 420*300*250 300*298 250 Internal circulation
PXCK Series Programmable Transparent Low-Temperature Thermostat Bath & High-Temperature Thermostat Bath Model Temperature Range(℃) Digital display resolution(℃) Temperature fluctuation（±℃） Working Tank Volume (mm³) Working slot opening（mm²） Slot depth（mm） Cyclic mode Cooling Temperature Heating Rate PXCK-1 -1.0-81.0 0.1 0.1 250*200*200 198*140 200 Internal circulation 0-1.0 0-1.0 PXCK-2 -1.0-81.0 0.1 0.1 300*250*200 248*160 200 Internal circulation 0-1.0 0-1.0 PXCK-3 -1.0-81.0 0.1 0.1 250*200*350 198*140 350 Internal circulation 0-1.0 0-1.0 PXCK-4 -1.0-81.0 0.1 0.1 420*300*250 300*298 250 Internal circulation 0-1.0 0-1.0 PXCK-1g -1.000-81.000 0.001 0.005-0.02 250*200*200 198*140 200 Internal circulation 0-1.0 0-1.0 PXCK-2g -1.000-81.000 0.001 0.005-0.02 300*250*200 248*160 200 Internal circulation 0-1.0 0-1.0 PXCK-3g -1.000-81.000 0.001 0.005-0.02 250*200*350 198*140 350 Internal circulation 0-1.0 0-1.0 PXCK-4g -1.000-81.000 0.001 0.005-0.02 420*300*250 300*298 250 Internal circulation 0-1.0 0-1.0 PXCK-5 Room temperature-200 0.1 0.1 φ300*200 φ170 200 Internal circulation 0-2.5 PXCK-6 Room temperature-200 0.1 0.1 φ300*300 φ170 300 Internal circulation 0-2.5 PXCK-7 Room temperature-200 0.1 0.1 φ300*400 φ170 400 Internal circulation 0-2.5 PXCK-5g Room temperature-200.000 0.001 0.005-0.02 φ300*200 φ170 200 Internal circulation 0-2.5 PXCK-6g Room temperature-200.000 0.001 0.005-0.02 φ300*300 φ170 300 Internal circulation 0-2.5 PXCK-7g Room temperature-200.000 0.001 0.005-0.02 φ300*400 φ170 400 Internal circulation 0-2.5
Model Temperature Range(℃) Digital display resolution(℃) Temperature fluctuation（±℃） Working Tank Volume (mm³) Working slot opening（mm²） Slot depth（mm） Cyclic mode PX-010TD-I 0-80 0.1 0.1 250*200*200 198*140 200 Internal circulation PX-010TD-II 0-80 0.01 0.05 250*200*200 198*140 200 Internal circulation PX-010TD-III 0-80 0.001 0.01-0.02 250*200*200 198*140 200 Internal circulation PX-015TD-I 0-80 0.1 0.1 300*250*200 248*160 200 Internal circulation PX-015TD-II 0-80 0.01 0.05 300*250*200 248*160 200 Internal circulation PX-015TD-III 0-80 0.001 0.01-0.02 300*250*200 248*160 200 Internal circulation PX-018TD-I 0-80 0.1 0.1 250*200*350 198*140 350 Internal circulation PX-018TD-II 0-80 0.01 0.05 250*200*350 198*140 350 Internal circulation PX-018TD-III 0-80 0.001 0.01-0.02 250*200*350 198*140 350 Internal circulation PX-030TD-I 0-80 0.1 0.1 420*300*250 300*298 250 Internal circulation PX-030TD-II 0-80 0.01 0.05 420*300*250 300*298 250 Internal circulation PX-030TD-III 0-80 0.001 0.01-0.02 420*300*250 300*298 250 Internal circulation
PXCK Series Programmable Transparent Low-Temperature Thermostat Bath & High-Temperature Thermostat Bath Model Temperature Range(℃) Digital display resolution(℃) Temperature fluctuation（±℃） Working Tank Volume (mm³) Working slot opening（mm²） Slot depth（mm） Cyclic mode Cooling Temperature Heating Rate PXCK-1 -1.0-81.0 0.1 0.1 250*200*200 198*140 200 Internal circulation 0-1.0 0-1.0 PXCK-2 -1.0-81.0 0.1 0.1 300*250*200 248*160 200 Internal circulation 0-1.0 0-1.0 PXCK-3 -1.0-81.0 0.1 0.1 250*200*350 198*140 350 Internal circulation 0-1.0 0-1.0 PXCK-4 -1.0-81.0 0.1 0.1 420*300*250 300*298 250 Internal circulation 0-1.0 0-1.0 PXCK-1g -1.000-81.000 0.001 0.005-0.02 250*200*200 198*140 200 Internal circulation 0-1.0 0-1.0 PXCK-2g -1.000-81.000 0.001 0.005-0.02 300*250*200 248*160 200 Internal circulation 0-1.0 0-1.0 PXCK-3g -1.000-81.000 0.001 0.005-0.02 250*200*350 198*140 350 Internal circulation 0-1.0 0-1.0 PXCK-4g -1.000-81.000 0.001 0.005-0.02 420*300*250 300*298 250 Internal circulation 0-1.0 0-1.0 PXCK-5 Room temperature-200 0.1 0.1 φ300*200 φ170 200 Internal circulation 0-2.5 PXCK-6 Room temperature-200 0.1 0.1 φ300*300 φ170 300 Internal circulation 0-2.5 PXCK-7 Room temperature-200 0.1 0.1 φ300*400 φ170 400 Internal circulation 0-2.5 PXCK-5g Room temperature-200.000 0.001 0.005-0.02 φ300*200 φ170 200 Internal circulation 0-2.5 PXCK-6g Room temperature-200.000 0.001 0.005-0.02 φ300*300 φ170 300 Internal circulation 0-2.5 PXCK-7g Room temperature-200.000 0.001 0.005-0.02 φ300*400 φ170 400 Internal circulation 0-2.5
