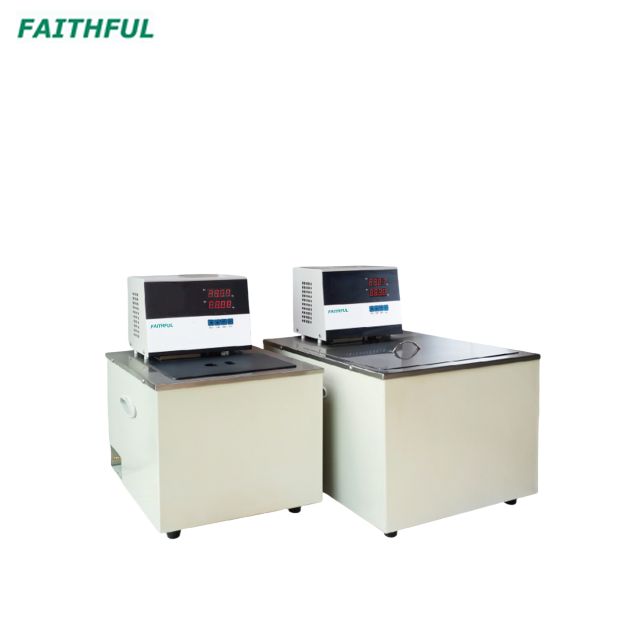

CH-1006 CH-1506 CH-2006 CH-1015 CH-2015 CH-1020 CH-2020 CH-1025 CH-2025 CH-1025A CH-2025B CH-1030 CH-2030 CH-1035 CH-2035 CH-1040 CH-2040 CH-1050 CH-2050 CH-1070 CH-2070 CH-1090 CH-2090 CH-165 CH-165A
FAITHFUL
High temperature control accuracy, temperature correction resolution up to 0.01 ℃
Over-temperature protection, over-temperature alarm function.
Intelligent software has strong temperature stability, PlD can automatically adjust thebest parameters according to different media.
Use software to digitally lock the control system settings.
After shutting down, the natural temperature rise and fall process in the tank can stilbe observed.
Internal circulation makes the temperature uniform and stable, and the flow constanttemperature liquid output by the external circulation pump is used to establish asecond constant temperature field outside the machine.
Optional RS232 or RS485 communication interface.
High temperature control accuracy, temperature correction resolution up to 0.01 ℃
Over-temperature protection, over-temperature alarm function.
Intelligent software has strong temperature stability, PlD can automatically adjust thebest parameters according to different media.
Use software to digitally lock the control system settings.
After shutting down, the natural temperature rise and fall process in the tank can stilbe observed.
Internal circulation makes the temperature uniform and stable, and the flow constanttemperature liquid output by the external circulation pump is used to establish asecond constant temperature field outside the machine.
Optional RS232 or RS485 communication interface.
Model | Temperature Range(℃) | Temperature Resolution(℃) | Temperature volatility (±℃) | Working tank volume(mm³) | Working slot opening(mm²) | Slot depth(mm) | Pump flow(L/min) | External dimensions (mm)(LXWXH) |
CH-1006 | Room temperature~99.99 | 0.01 | 0.03 | 240*195*150 | 180*140 | 150 | 6 | 240*370*400 |
CH-1506 | Room temperature~150.0 | 0.1 | 0.1 | 240*195*150 | 180*140 | 150 | Internal circulation | 240*370*410 |
CH-2006 | Room temperature~200.0 | 0.01 | 0.03 | 240*195*150 | 180*140 | 150 | 6 | 240*370*410 |
CH-1015 | Room temperature~99.99 | 0.01 | 0.03 | 280*250*200 | 235*160 | 200 | 6 | 320*370*450 |
CH-2015 | Room temperature~200.0 | 0.1 | 0.1 | 300*240*200 | 235*160 | 200 | Internal circulation | 320*370*450 |
CH-1020 | Room temperature~99.99 | 0.01 | 0.03 | 400*330*150 | 310*280 | 150 | 6 | 390*490*400 |
CH-2020 | Room temperature~200.0 | 0.1 | 0.1 | 400*330*150 | 310*280 | 150 | Internal circulation | 390*490*410 |
CH-1025 | Room temperature~99.99 | 0.01 | 0.03 | 580*250*300 | 235*160 | 300 | 6 | 320*370*540 |
CH-2025 | Room temperature~200.0 | 0.1 | 0.1 | 580*250*300 | 235*160 | 300 | Internal circulation | 320*370*550 |
CH-1025A | Room temperature~99.99 | 0.01 | 0.03 | 280*250*350 | 235*180 | 350 | Internal circulation | 320*370*600 |
CH-2025B | Room temperature~200.0 | 0.1 | 0.1 | 280*250*350 | 235*180 | 350 | Internal circulation | 320*370*610 |
CH-1030 | Room temperature~99.99 | 0.01 | 0.03 | 400*330*230 | 310*280 | 230 | 6 | 390*490*480 |
CH-2030 | Room temperature~200.0 | 0.1 | 0.1 | 400*330*230 | 310*280 | 230 | Internal circulation | 390*490*490 |
CH-1035 | Room temperature~100.00 | 0.01 | 0.03 | 400*330*260 | 310*300 | 260 | Internal circulation | 390*490*550 |
CH-2035 | Room temperature~200.0 | 0.1 | 0.3 | 400*330*260 | 310*300 | 260 | Internal circulation | 390*490*550 |
CH-1040 | Room temperature~100.00 | 0.01 | 0.05 | 490*420*200 | 400*380 | 200 | Internal circulation | 510*620*510 |
CH-2040 | Room temperature~200.0 | 0.1 | 0.1 | 490*420*200 | 400*380 | 200 | Internal circulation | 510*620*510 |
CH-1050 | Room temperature~100.00 | 0.01 | 0.05 | 520*320*300 | 350*300 | 300 | Internal circulation | 405*605*600 |
CH-2050 | Room temperature~200.0 | 0.1 | 0.1 | 520*320*300 | 350*300 | 300 | Internal circulation | 405*605*600 |
CH-1070 | Room temperature~100.00 | 0.01 | 0.05 | 780*300*300 | 600*300 | 300 | Internal circulation | 400*1100*650 |
CH-2070 | Room temperature~200.0 | 0.1 | 0.1 | 780*300*300 | 600*300 | 300 | Internal circulation | 400*1100*650 |
CH-1090 | Room temperature~100.00 | 0.01 | 0.05 | 980*300*300 | 800*300 | 300 | Internal circulation | 400*1300*650 |
CH-2090 | Room temperature~200.0 | 0.1 | 0.1 | 980*300*300 | 800*300 | 300 | Internal circulation | 400*1300*650 |
CH-165 | Room temperature~100.00 | 0.01 | 0.05 | 650*500*500 | 500*500 | 500 | Internal circulation | |
CH-165A | Room temperature~200.0 | 0.1 | 0.1 | 650*500*500 | 500*500 | 500 | Internal circulation | |
ZC-22Q | Room temperature~100.00 | 0.01 | 0.05 | 495*295*150 | 395*285 | 150 | Internal circulation | 350*620*400 |
Model | Temperature Range(℃) | Temperature volatility (±℃) | Working slot opening(mm²) | Slot depth(mm) | Circulation Pump Capacity(L/min) | Working Tank Volume(L) | External dimensions (mm)(LXWXH) |
CH-3006 | 50-300 | 0.1 | 150*180 | 150 | Internal circulation | 5 | 240*370*400 |
CH-3010 | 50-300 | 0.1 | 240*180 | 150 | Internal circulation | 10 | 320*370*450 |
CH-3015 | 50-300 | 0.1 | 240*180 | 200 | Internal circulation | 15 | 320*370*480 |
CH-3020 | 50-300 | 0.1 | 240*180 | 300 | Internal circulation | 20 | 320*370*580 |
CH-3030 | 50-300 | 0.1 | 310*280 | 230 | Internal circulation | 30 | 390*490*450 |
CH-3040 | 50-300 | 0.1 | 380*400 | 200 | Internal circulation | 40 | 500*620*470 |
CH-3050 | 50-300 | 0.1 | 380*400 | 250 | Internal circulation | 50 | 500*620*540 |
