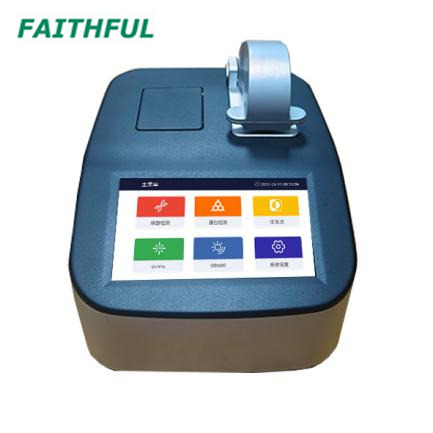

Ultramicro Nucleic Acid Protein Analyzer-ND600

Home » Product » Analyzer » Ultramicro Nucleic Acid Protein Analyzer-ND600

Product Classification

Features:

1.Color touch screen design.

2.A sample volume of 0.5-2uL is sufficient for purity and concentration testing.

3.OD 600 detection module.

4.Quick measurement,completed within 5 seconds.

5.Built in printer, directly print test reports.

6.Data can be exported throughUSB flash drive and SD drive.

7.Optional fluorescence quantificationmodule for fluorescence testing.

Model	ND600
Display	Touch Screen
Wavelength Range	185-910nm
Sample Volume	0.5-2.0ul
Lightpath	1mm.0.5mm.0.1mm.0.05mm.0.02mm
Light Source	Xenon flash lamp
Detector	3648 CCD
Wavelength Accuracy	1nm
Spectral Resolution	3nm(FWHM at Hg 546nm)
Absorbance Accuracy	0.002Abs
Photometric Accuracy	1% (7.332 Abs at 260nm)
Absorbance Range (10mm)	0-550A
OD600 Abs Range	0-4A
Measurement Time	≤5S
Concentration Range	2-38880ng/ul(dsDNA)
Concentration Range	0.06-820mg/ml (BSA)
Out port	USB.SD-RAM
Material	Quartz optical fiber/High hard aluminum
Printer	Built-in thermal printer
External Power Supply	6800mAh Optional
Fluorescence Detection	EX 460nm EM 525nm Optional
Power Voltage	AC220V,50/60HZ
Dimension（mm）	270×210x196
Weight （kg）	3.5
