Product Introduction

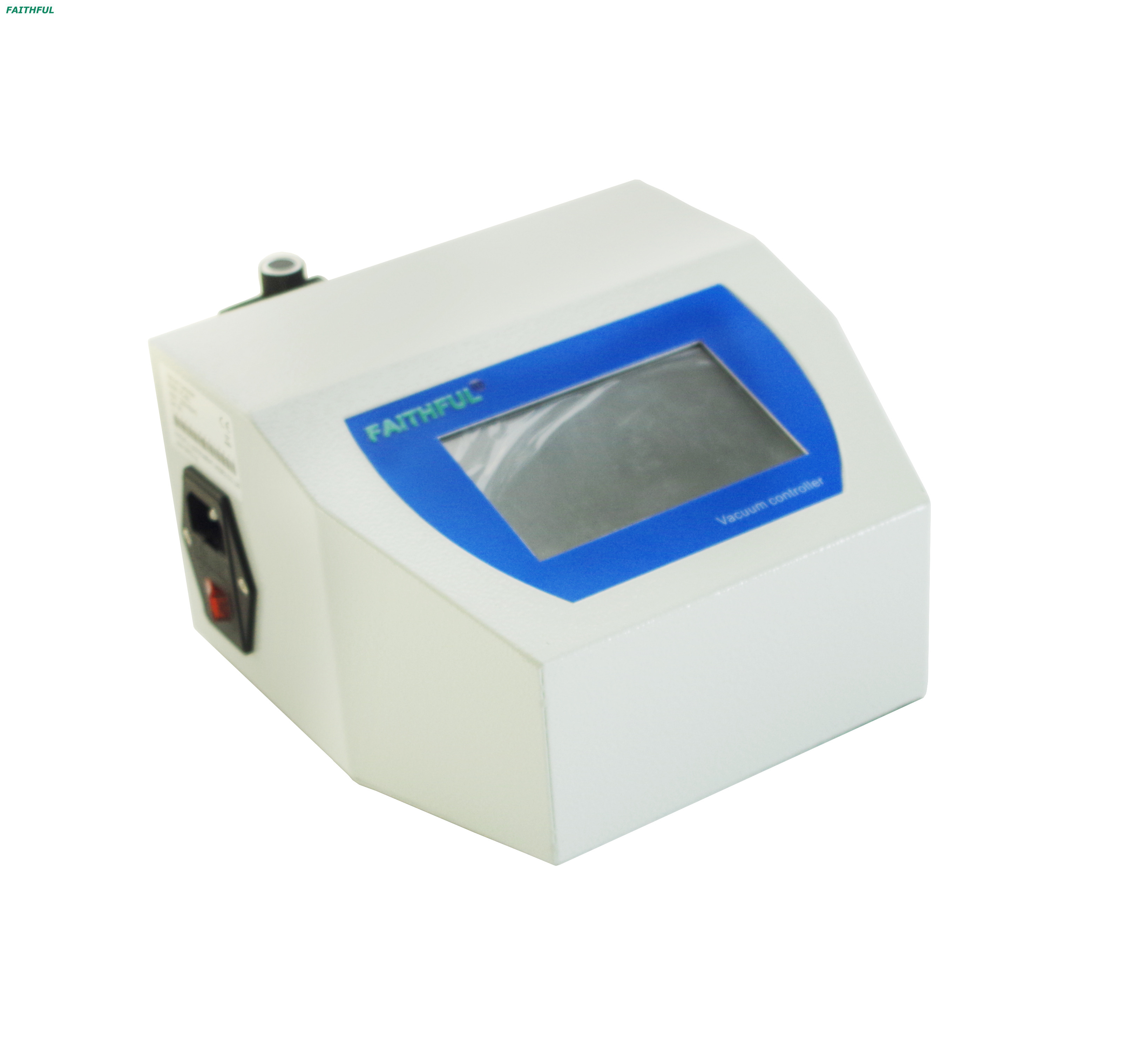

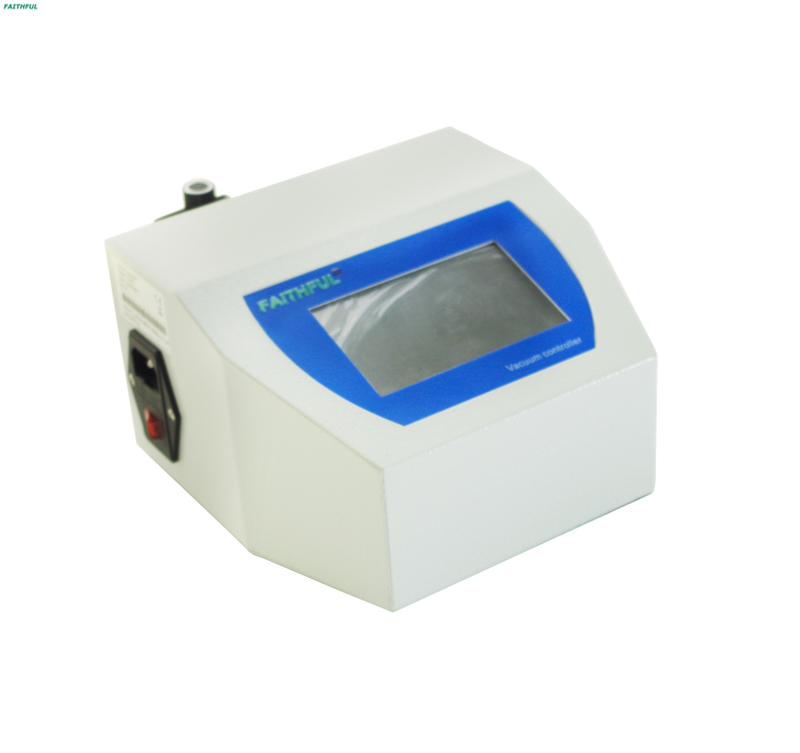

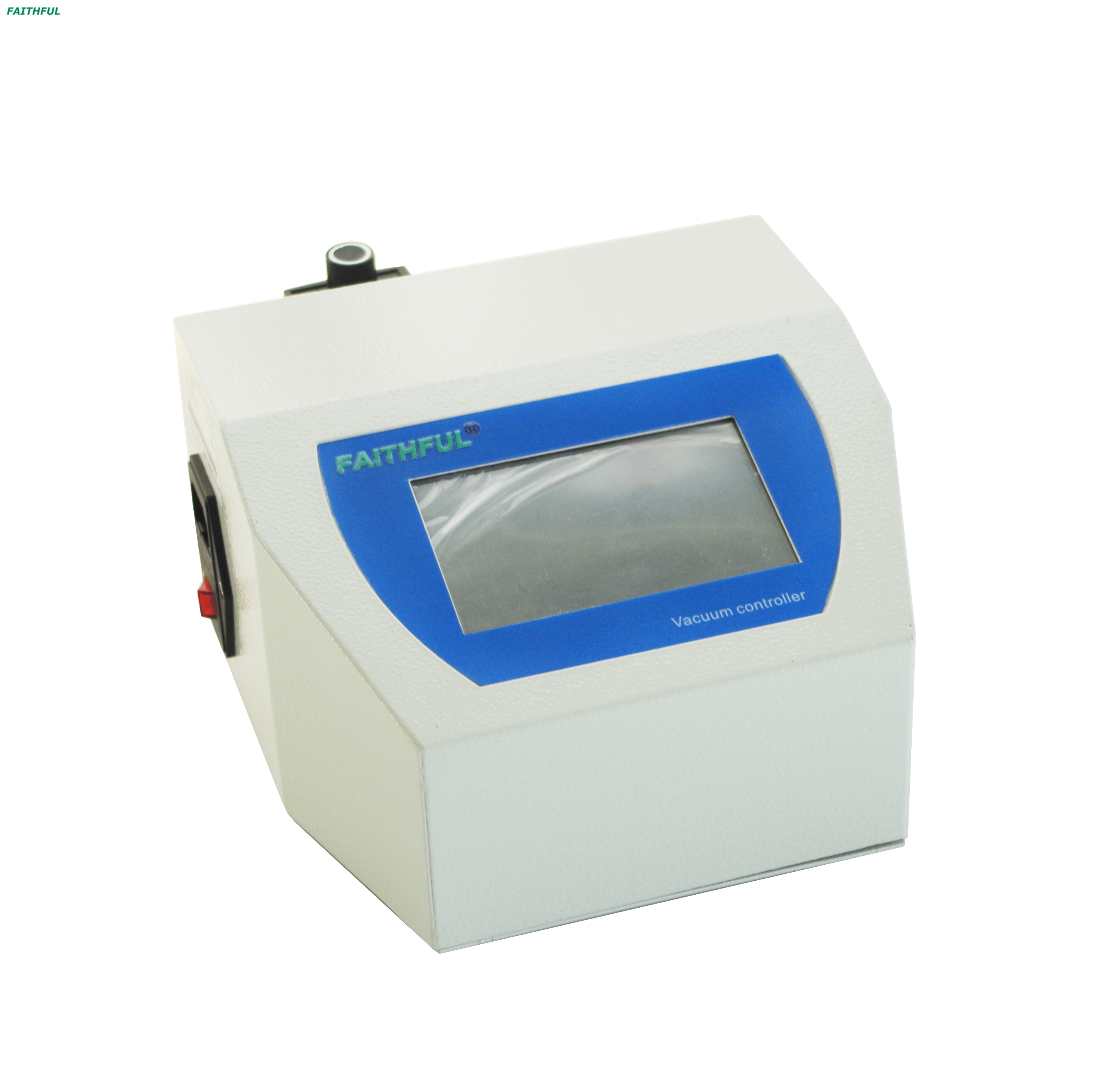

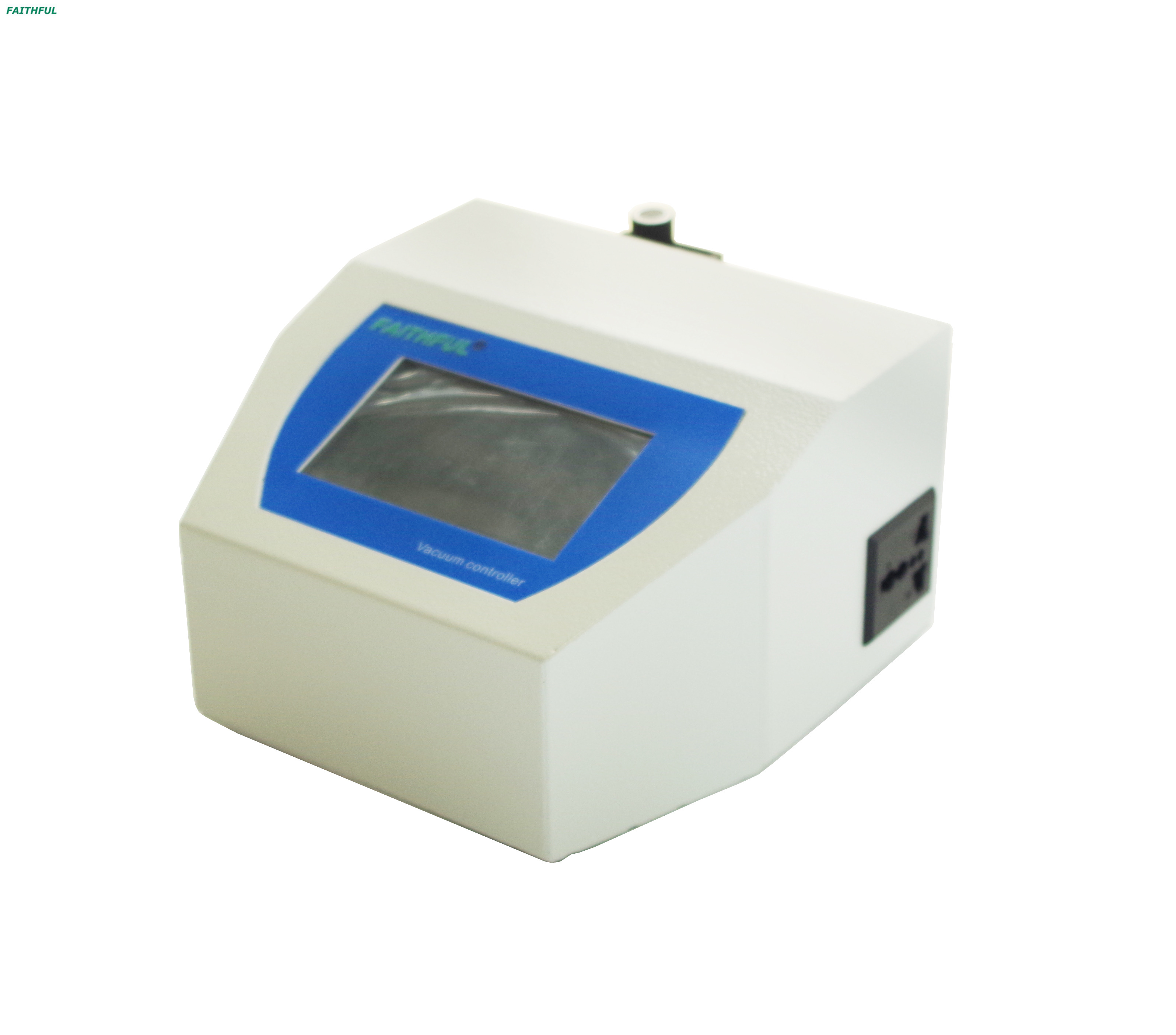

VC-5000 vacuum degree controller is a high precision vacuum controller developed by our company.
The instrument uses an imported anti-corrosion pressure sensor and a high-sensitivity solenoid valve for high precision control of the vacuum.
It can be equipped with rotary evaporator, rectification,reaction kettle, etc. of various manufacturers for the concentration of vacuum and equipment for vacuum control.
When the vacuum is not suitable, the re-agent will suddenly boil and bump.
By using this fully automatic vacuum controller, it can be connected in series with the rotary evaporator to obtain the ideal vacuum inside the rotary evaporator.
Especially for the concentration of volatile reagents, the most optimal recovery rate can be obtained.
Product Introduction
VC-5000 vacuum degree controller is a high precision vacuum controller developed by our company.
The instrument uses an imported anti-corrosion pressure sensor and a high-sensitivity solenoid valve for high precision control of the vacuum.
It can be equipped with rotary evaporator, rectification,reaction kettle, etc. of various manufacturers for the concentration of vacuum and equipment for vacuum control.
When the vacuum is not suitable, the re-agent will suddenly boil and bump.
By using this fully automatic vacuum controller, it can be connected in series with the rotary evaporator to obtain the ideal vacuum inside the rotary evaporator.
Especially for the concentration of volatile reagents, the most optimal recovery rate can be obtained.
Model | VC5000 | |
Performance | Standard Control | 5-1000hPa/mbar (Fixed value control) |
Control Mode | Control vacuum automatically | |
Control Precision | 1-30mbar (Freely adjustable) | |
Display Item | LCD touch screen; Display pressure measurement value, Pressure setting value | |
Function | Release The Vacuum | One button release vacuum |
Pressure Sensor | European and American imports compressive and corrosion resistant semiconductor pressure probe | |
Structure | Electromagnetic Value | Imports from Japan |
Interface Caliber | Φ10mm Add and alkali resistant | |
Application | 10-50L Vacuum distillation equipment | |
Voltage | 220V, 110V | |
Machine Dimension (mm) | 140*160*60 |
Model | VC5000 | |
Performance | Standard Control | 5-1000hPa/mbar (Fixed value control) |
Control Mode | Control vacuum automatically | |
Control Precision | 1-30mbar (Freely adjustable) | |
Display Item | LCD touch screen; Display pressure measurement value, Pressure setting value | |
Function | Release The Vacuum | One button release vacuum |
Pressure Sensor | European and American imports compressive and corrosion resistant semiconductor pressure probe | |
Structure | Electromagnetic Value | Imports from Japan |
Interface Caliber | Φ10mm Add and alkali resistant | |
Application | 10-50L Vacuum distillation equipment | |
Voltage | 220V, 110V | |
Machine Dimension (mm) | 140*160*60 |
