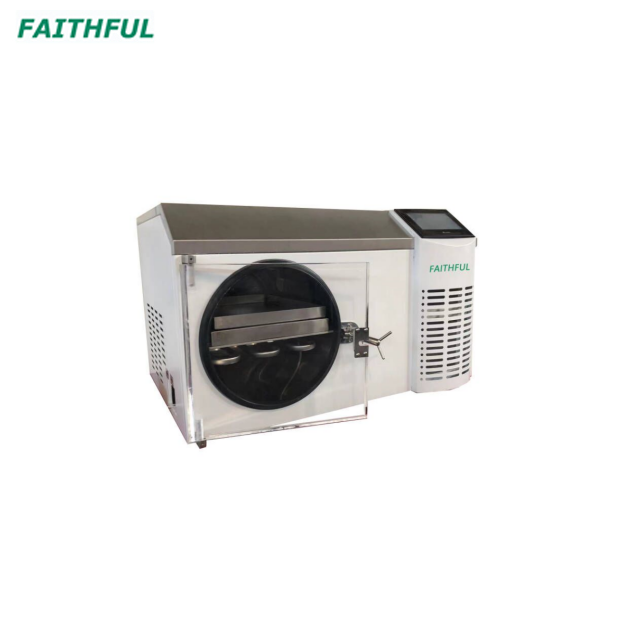

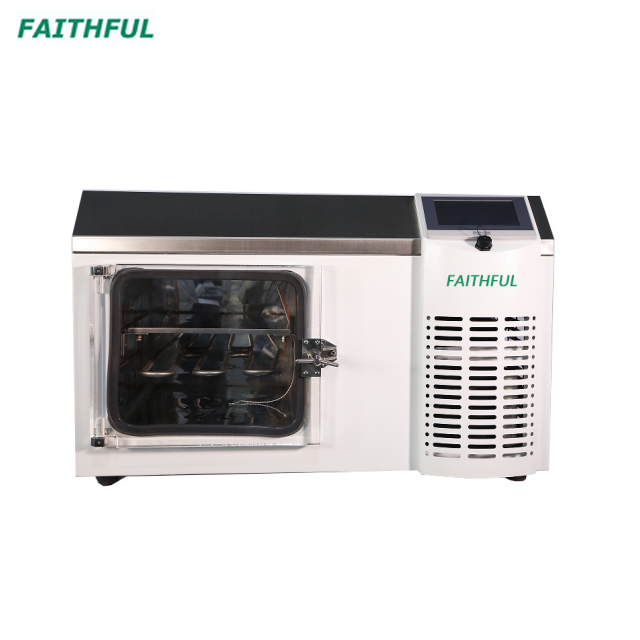

FSF-5F,FSF-5FE
FAITHFUL
1.Pre-freeze dried in situ, high transmittance plexiglass viewing window;
2.LCD display, PID control, the drying curve;
3.Square tray is not easily deformed, easy to operate, easy to clean;
4.Can be configured inflation valve, disposable dry inert gas;
5.With vacuum seal; the LCD: display shelf temperature and cold trap curve
6.PLC controller, 20 programs, each program can be divided into 40 sections of program
7.Freeze dryer program parameters can be modified during operation,and record the final drying curves;
8.USB on line function, export curve data to U disk (Optional)
9.Computer remote on line function (Optional)
1.Pre-freeze dried in situ, high transmittance plexiglass viewing window;
2.LCD display, PID control, the drying curve;
3.Square tray is not easily deformed, easy to operate, easy to clean;
4.Can be configured inflation valve, disposable dry inert gas;
5.With vacuum seal; the LCD: display shelf temperature and cold trap curve
6.PLC controller, 20 programs, each program can be divided into 40 sections of program
7.Freeze dryer program parameters can be modified during operation,and record the final drying curves;
8.USB on line function, export curve data to U disk (Optional)
9.Computer remote on line function (Optional)
Model
| FSF-5FE | FSF-5F |
Electric heating function | Silicone heating function | |
Drying Area(㎡) | 0.1 | |
shelf layers | 1 | |
shelf temperature range | -50℃ to 60℃ | -40℃ to 50℃ |
shelf size(mm) | 280*400mm | |
cold trap temperature | ≤ -50 °C | |
water-capture capability | 2kg/24h | |
panel mounted liquid | 1.5L | |
Ultimate vacuum | ≤ 10Pa | |
Top-press (optional) | NO | Top-press optional |
Cooling | Air cooling,room temperature<25℃ | |
Dimensions(mm) | 880*660* 550 | |
Machine weight | 100kg | |
Voltage | 220V 50hz /110V 60hz |
Model
| FSF-5FE | FSF-5F |
Electric heating function | Silicone heating function | |
Drying Area(㎡) | 0.1 | |
shelf layers | 1 | |
shelf temperature range | -50℃ to 60℃ | -40℃ to 50℃ |
shelf size(mm) | 280*400mm | |
cold trap temperature | ≤ -50 °C | |
water-capture capability | 2kg/24h | |
panel mounted liquid | 1.5L | |
Ultimate vacuum | ≤ 10Pa | |
Top-press (optional) | NO | Top-press optional |
Cooling | Air cooling,room temperature<25℃ | |
Dimensions(mm) | 880*660* 550 | |
Machine weight | 100kg | |
Voltage | 220V 50hz /110V 60hz |
