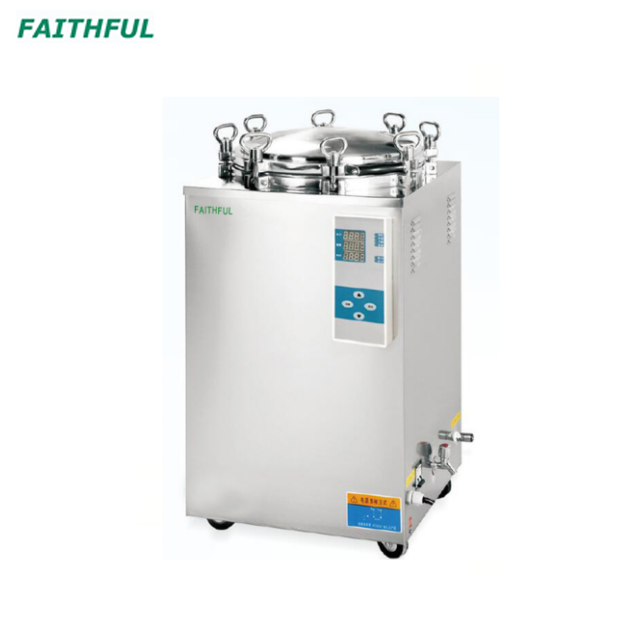

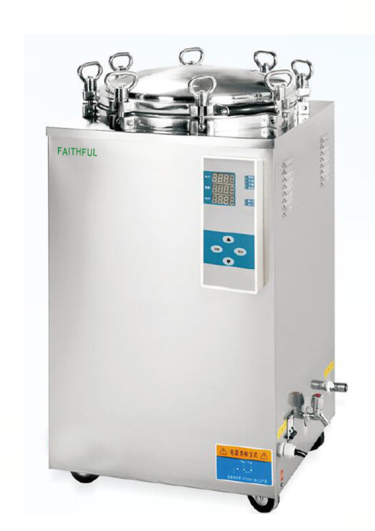

FSF-35LD,FSF-50LD,FSF-75LD,FSF-100LD,FSF-120LD,FSF-150LD
FAITHFUL
Characteristics:
1. Fully stainless high-alloy steel structure.
2. Digital display of working status, touch of key.
3. Manual or semi-automatic control.
4. Auto discharge tie cool air, and steam discharging automatically after sterilization.
5. Automatically shut off with beep reminding after sterilization.
6. The accident protection system.
7. Automatic off of heating elements at reducing of a water level.
8. Blocking top cover at working.
9. Blockage of starting at opening.
10. Heater protection sensor.
11. pressure and water level control,
12. With two stainless steel sterilizing baskets.
13. Easy to operate, safe and reliable.
14. The drying system is optional, which can be equipped according to the customers request.
Characteristics:
1. Fully stainless high-alloy steel structure.
2. Digital display of working status, touch of key.
3. Manual or semi-automatic control.
4. Auto discharge tie cool air, and steam discharging automatically after sterilization.
5. Automatically shut off with beep reminding after sterilization.
6. The accident protection system.
7. Automatic off of heating elements at reducing of a water level.
8. Blocking top cover at working.
9. Blockage of starting at opening.
10. Heater protection sensor.
11. pressure and water level control,
12. With two stainless steel sterilizing baskets.
13. Easy to operate, safe and reliable.
14. The drying system is optional, which can be equipped according to the customers request.
Model | FSF-35LD | FSF-50LD | FSF-75LD | FSF-100LD | FSF-120LD | FSF-150LD |
Chamber Volume (mm) | 35L Φ318*450 | 50L Φ340*550 | 75L Φ400*600 | 100L Φ440*650 | 120L Φ480*660 | 150L Φ510*740 |
Design Pressure | 0.3MPa | |||||
Design Temperature | 150℃ | |||||
Max.Working Temperature | 138℃ | |||||
Max.Working Pressure | 0.25MPa | |||||
Heat Average | ≤±1℃ | |||||
Timer Range | 0-99 min or 0-99 hour 59 min | |||||
Power | 1*2.5kw/ AC220V.50HZ | 2*1.5kw/ AC220V.50HZ | 3*1.5KW/AC220V.50HZ | 3*2.0KW/AC220V.50HZ | ||
Overall Dimension (mm) | 470*450*840 | 520*500*970 | 550*530*990 | 580*560*1060 | 630*610*1130 | 660*640*1130 |
Transport Dimension(mm) | 540*540*1000 | 580*580*1130 | 610*610*1160 | 640*640*1220 | 690*690*1290 | 730*730*1290 |
G.W/N.W(kg) | 64/47 | 77/56 | 90/70 | 98/76 | 125/103 | 138/111 |
Model | FSF-35LD | FSF-50LD | FSF-75LD | FSF-100LD | FSF-120LD | FSF-150LD |
Chamber Volume (mm) | 35L Φ318*450 | 50L Φ340*550 | 75L Φ400*600 | 100L Φ440*650 | 120L Φ480*660 | 150L Φ510*740 |
Design Pressure | 0.3MPa | |||||
Design Temperature | 150℃ | |||||
Max.Working Temperature | 138℃ | |||||
Max.Working Pressure | 0.25MPa | |||||
Heat Average | ≤±1℃ | |||||
Timer Range | 0-99 min or 0-99 hour 59 min | |||||
Power | 1*2.5kw/ AC220V.50HZ | 2*1.5kw/ AC220V.50HZ | 3*1.5KW/AC220V.50HZ | 3*2.0KW/AC220V.50HZ | ||
Overall Dimension (mm) | 470*450*840 | 520*500*970 | 550*530*990 | 580*560*1060 | 630*610*1130 | 660*640*1130 |
Transport Dimension(mm) | 540*540*1000 | 580*580*1130 | 610*610*1160 | 640*640*1220 | 690*690*1290 | 730*730*1290 |
G.W/N.W(kg) | 64/47 | 77/56 | 90/70 | 98/76 | 125/103 | 138/111 |
