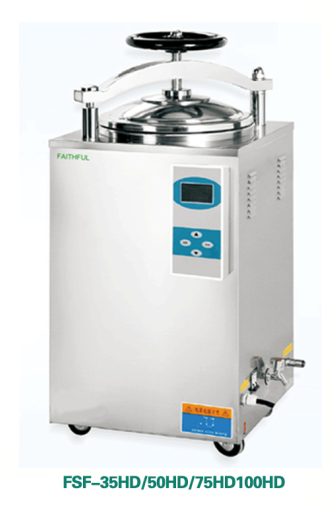

FSF-35HD FSF-50HD FSF-75HD FSF-100HD
FAITHFUL
Characteristics
1.Fully stainless steel structure.
2.Hand wheel type of quick-open door structure.
3.Door safety lock system.

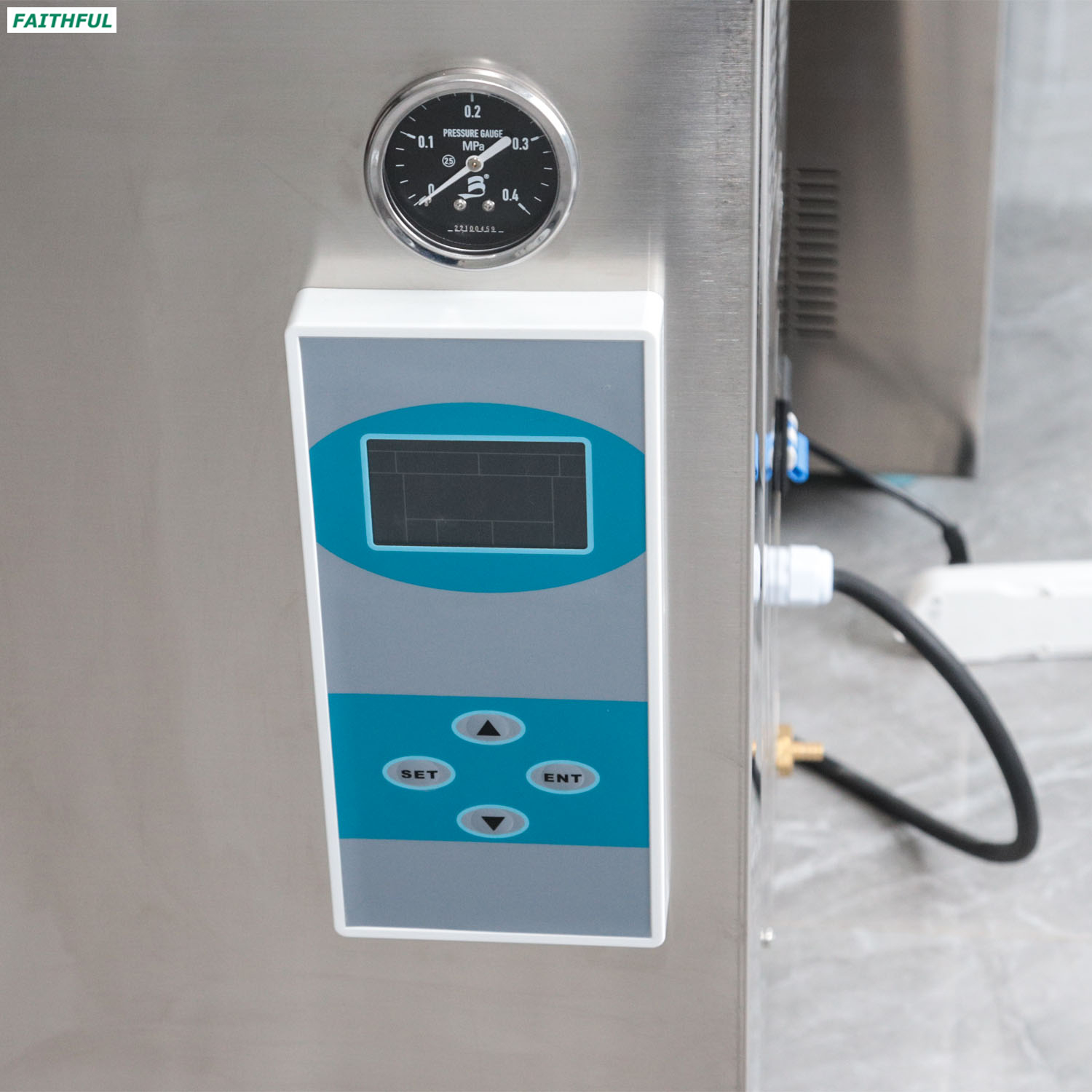

4.Digital display of working status,touch of key.
5. Self-inflating type seal.
6.Over temperature&over pressure auto-protection.
7.Safe protection of water lacking.
8.Automatically shut off with beep reminding after sterilization.
9.Auto discharge the cool air,and steam discharging auto matically after sterilization.
10.Used for sterilization of medical instruments, medical cotton products.
11.FulIy stainless steel SUS304/AlSl 304 -3mm.
12.Possible to install drying system according request.
Characteristics
1.Fully stainless steel structure.
2.Hand wheel type of quick-open door structure.
3.Door safety lock system.
4.Digital display of working status,touch of key.
5. Self-inflating type seal.
6.Over temperature&over pressure auto-protection.
7.Safe protection of water lacking.
8.Automatically shut off with beep reminding after sterilization.
9.Auto discharge the cool air,and steam discharging auto matically after sterilization.
10.Used for sterilization of medical instruments, medical cotton products.
11.FulIy stainless steel SUS304/AlSl 304 -3mm.
12.Possible to install drying system according request.
Model | FSF-35HD | FSF-50HD | FSF-75HD | FSF-100HD |
Chamber Volume | 35L Φ318*415mm | 50L Φ340*550mm | 75L Φ400*600mm | 100L Φ440*650mm |
Design Pressure | 0.3Mpa | |||
Design Temperature | 150℃ | |||
Max.Working Temperature | 138℃ | |||
Max.Working Pressure | 0.25MPa | |||
Timer Range | 0-99min or 0-99h 59 min | |||
Power | 1*2.5KW/AC 220V.50HZ | 2*1.5KW/AC 220V.50HZ | 3*1.5KW/AC 220V.50HZ | |
Overall Dimension(mm) | 470*450*1020 | 520*490*1150 | 550*530*1180 | 580*560*1290 |
Transport Dimension(mm) | 540*540*1160 | 580*580*1280 | 610*610*1320 | 640*640*1400 |
G.W/N.W(kg) | 84/65 | 97/78 | 115/97 | 135/109 |
Model | FSF-35HD | FSF-50HD | FSF-75HD | FSF-100HD |
Chamber Volume | 35L Φ318*415mm | 50L Φ340*550mm | 75L Φ400*600mm | 100L Φ440*650mm |
Design Pressure | 0.3Mpa | |||
Design Temperature | 150℃ | |||
Max.Working Temperature | 138℃ | |||
Max.Working Pressure | 0.25MPa | |||
Timer Range | 0-99min or 0-99h 59 min | |||
Power | 1*2.5KW/AC 220V.50HZ | 2*1.5KW/AC 220V.50HZ | 3*1.5KW/AC 220V.50HZ | |
Overall Dimension(mm) | 470*450*1020 | 520*490*1150 | 550*530*1180 | 580*560*1290 |
Transport Dimension(mm) | 540*540*1160 | 580*580*1280 | 610*610*1320 | 640*640*1400 |
G.W/N.W(kg) | 84/65 | 97/78 | 115/97 | 135/109 |
