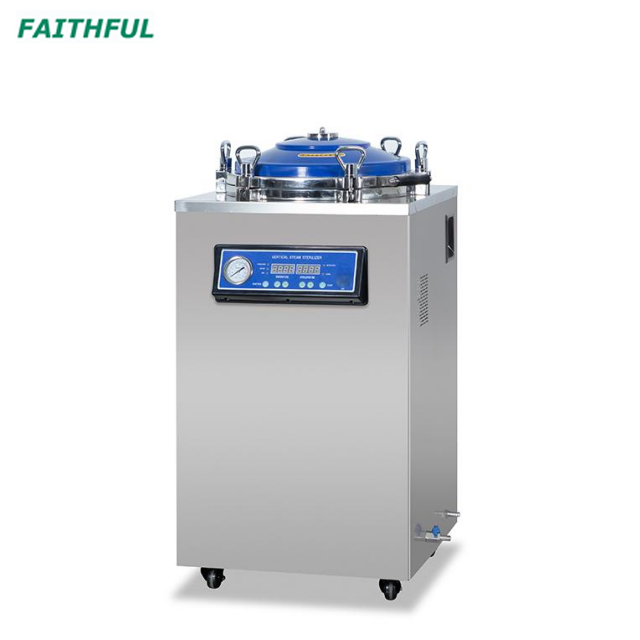

FSF-35AB, FSF-50AB, FSF-75AB, FSF-100AB,FSF-120AB,FSF-150AB
FAITHFUL
Features:
1. Bolt structure;
2. High quality stainless steel material;
3. Microcomputer automatic control, arbitrary set of sterilization parameters;
4. Digital display and touch buttons Standard test interface;
5. The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning;
6. With stainless steel bucket or basket;
7. Buzzer reminder after sterilization, automatic stop;
8. Automatic cooling air, sterilization end automatic exhaust steam.
Features:
1. Bolt structure;
2. High quality stainless steel material;
3. Microcomputer automatic control, arbitrary set of sterilization parameters;
4. Digital display and touch buttons Standard test interface;
5. The container with automatic protection function: over temperature protection; over pressure protection self discharge; low water level protection, anti dry burning;
6. With stainless steel bucket or basket;
7. Buzzer reminder after sterilization, automatic stop;
8. Automatic cooling air, sterilization end automatic exhaust steam.
Model | FSF-35AB | FSF-50AB | FSF-75AB | FSF-100AB | FSF-120AB | FSF-150AB |
Volume | 35L | 50L | 75L | 100L | 120L | 150L |
Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW | 4.5KW | 6.0KW |
Voltage | AC220V/50HZ | |||||
Design Pressure | 0.25MPa | |||||
Design Temperature | 139℃ | |||||
Rated Working Pressure | 0.22MPa | |||||
Rated Working Temperature | 134℃ | |||||
Sterilization Temperature Setting Range | 116℃~134℃ | |||||
Sterilization Time Setting Range | 4~120 min | |||||
Chamber Volume | Φ300x500 | Φ350x525 | Φ400x625 | Φ450x650 | Φ450x760 | Φ500x780 |
Bucket Dimension | Φ280x400 | Φ330x460 | Φ380x560 | Φ420x540 | Φ420x660 | Φ470x720 |
Outer Dimension | 400x400x860 | 480x480x960 | 525x525x1060 | 555x555x1080 | 555x599x1200 | 605x649x1210 |
Packing size (L x W x H) | 550x500x1030 | 580x630x1100 | 630x680x1190 | 690x650x1230 | 690x650x1330 | 750x700x1370 |
Gross/net Weight | 49/36kg | 70/55kg | 82/66kg | 94/76kg | 96/77kg | 111/90kg |
Basket Dimension (Option) | Φ320x240x2 | Φ360x280x2 | Φ410x300x2 | Φ410x350x2 | Φ460x350x2 |
Model | FSF-35AB | FSF-50AB | FSF-75AB | FSF-100AB | FSF-120AB | FSF-150AB |
Volume | 35L | 50L | 75L | 100L | 120L | 150L |
Power | 2.5KW | 3.5KW | 4.5KW | 4.5KW | 4.5KW | 6.0KW |
Voltage | AC220V/50HZ | |||||
Design Pressure | 0.25MPa | |||||
Design Temperature | 139℃ | |||||
Rated Working Pressure | 0.22MPa | |||||
Rated Working Temperature | 134℃ | |||||
Sterilization Temperature Setting Range | 116℃~134℃ | |||||
Sterilization Time Setting Range | 4~120 min | |||||
Chamber Volume | Φ300x500 | Φ350x525 | Φ400x625 | Φ450x650 | Φ450x760 | Φ500x780 |
Bucket Dimension | Φ280x400 | Φ330x460 | Φ380x560 | Φ420x540 | Φ420x660 | Φ470x720 |
Outer Dimension | 400x400x860 | 480x480x960 | 525x525x1060 | 555x555x1080 | 555x599x1200 | 605x649x1210 |
Packing size (L x W x H) | 550x500x1030 | 580x630x1100 | 630x680x1190 | 690x650x1230 | 690x650x1330 | 750x700x1370 |
Gross/net Weight | 49/36kg | 70/55kg | 82/66kg | 94/76kg | 96/77kg | 111/90kg |
Basket Dimension (Option) | Φ320x240x2 | Φ360x280x2 | Φ410x300x2 | Φ410x350x2 | Φ460x350x2 |
