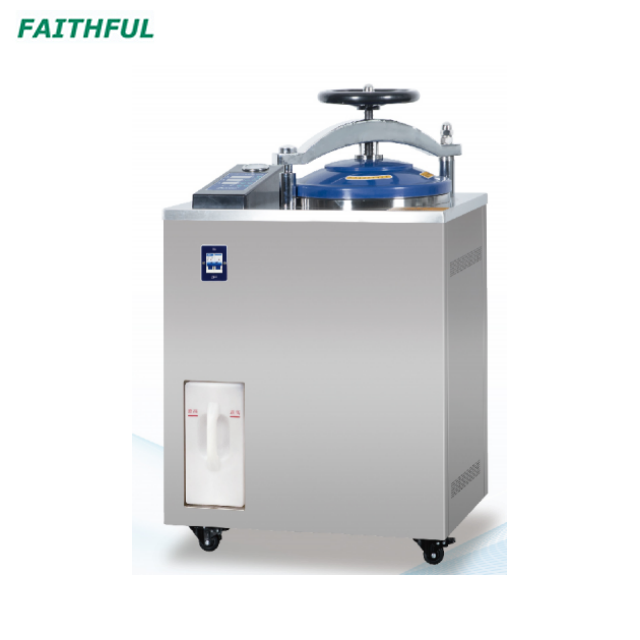

Vertical Steam Sterilizer - Multi-functional Laboratory Customized Model

Availability:
Quantity:
  • FSF-35XL;FSF-50XL;FSF-75XL;FSF-100XL

  • FAITHFUL

 Sterilization chamber material: high-quality stainless steel.

Melting time: 1-999 minutes, holding time: 1-999 minutes.

Melting temperature: 60-100°C, holding temperature: 45-60℃.

Memory storage system: capable of memorizing and storing the operating parameters of the sterilization cycle.

Multi-stage exhaust mode: After sterilization, the exhaust valve can exhaust at the set multi-stage exhaust speed, which shortens the entire sterilization process time, improves work efficiency, and is superior to traditional exhaust modes such as full exhaust and no exhaust.

Inspection interface: Provides temperature and pressure calibration interfaces for easy calibration, and can be matched with 3Q verification adapters.

Equipped with 3 or more sterilization modes, including sterilization for liquids, solids, etc.

Self-inductive safety interlock device.

Adopts a new type of intelligent microcomputer system, with fully automatic control of the sterilization process.

 Automatic protection functions: over-temperature protection, over-pressure protection, low water level protection, and anti-dry heating protection.

Built-in printer .

Steam internal circulation system, no steam emission to the outside, ensuring a dean and dry environment.

Option: Automatic Water Intake.


Model

FSF-35XL

FSF-50XL

FSF-75XL

FSF-100XL

Volume

35L

50L

75L

100L

Power

2.5kW

3.5kW

4.5kW

4.5kW

Voltage

AC110V/60HZ or AC220V/50HZ

Design Pressure

-0.1-0.25MPa

Design Temperature

139℃

Rated Working Pressure

0.22MPa

Rated Working Temperature

116-134℃

Sterilization Temperature Range

106℃-134℃

Sterilization Time Setting Range

1-9999min

Drying Time Setting Range

0-240min

Chamber Size (mm)

Φ300x450

Φ350x515

Φ400x585

Φ450x615

Bucket Dimension(mm)

Φ275x395

Φ325x235x2

Φ375x265x2

Φ425x275x2

Basket Dimension(mm)(Option)

Φ270x380

Φ320x220x2

Φ370x250x2

Φ420x265x2

Outer Dimension(mm)

430x610x1030

500x675x1100

540x716x1165

575x748x1255

Packing Size (LxWxH)(mm)

670x520x1160

590x740x1230

790x610x1310

820x650x1380

Gross/Net Weight

90/74kg

125/97kg

145/114kg

161/129kg
