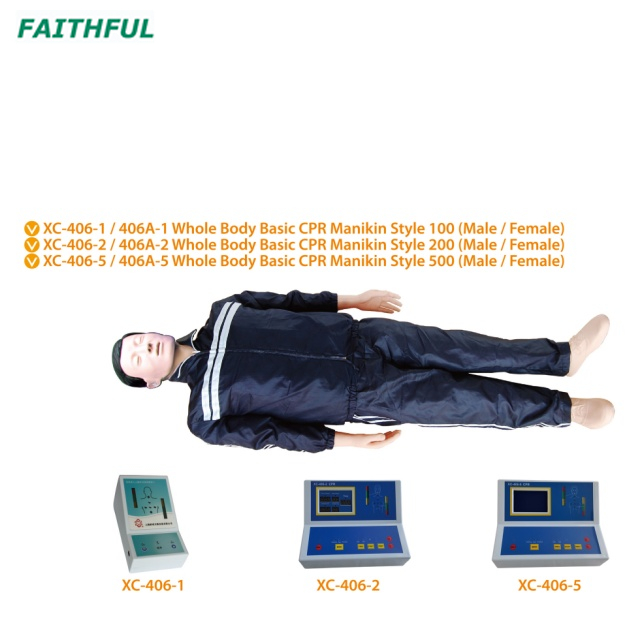

Features and advantages: lmplement standard:AHA (American Heart Association) guideline for CPR
CPR manikin features:
1) Clearly anatomic characteristic, realistic touch feeling and lifelike skin color, vivid appearance.
CPR manikin features:
2) Simulate vital signs.
(a) Initial state: manikin no carotid artery pulse, XC-406-2 / XC-406-5 pupils are dilated.
(b) During the compression operation,
XC-406-2/ XC-406-5 there is passive carotid artery pulse, and the pulse rate is in line with compression rate.
(c) XC-406-2 / XC-406-5, after successful rescue, the manikin pupils return to normal and get spontaneous carotic
artery pulse.
XC-406-1 please squeeze the handball to simulate carotid artery pulse.
3) Open airway.
4) Can perform artificial breathing and external chest compression.
CPR instrument features:
1) Available CPRtraining
2) Indicators show airway opening, artificial breathing and external chest compression position correct or not.
3) Indicators show inflation volume, correct inflation volume:500/600-1000ml.
(a) Insufficient inflation volume, yellow indicator.
(b) Proper inflation volume, green indicator.
(c) Excessive inflation volume, red indicator
4) Indicators show compression depth: correct compression depth: 5-6cm.
(a) Insufficient compression depth, yellow indicator.
(b) Proper compression depth, green indicator.
(c) Excessive compression depth, red indicator.
5)Voice Prompt.
6) Operation rate:
XC-406-1 100 times/min XC-406-2/XC-406-5 100 times/min or 120 times/min.
7) Operation cycle: compression and inflation ratio: 30:2, 5 cycles.
8) Operation time can be set in second.
9) Result Printing:XC-406-2/XC-406-5.
Packing: 1pcs/carton, 95x34x58cm,21kgs
