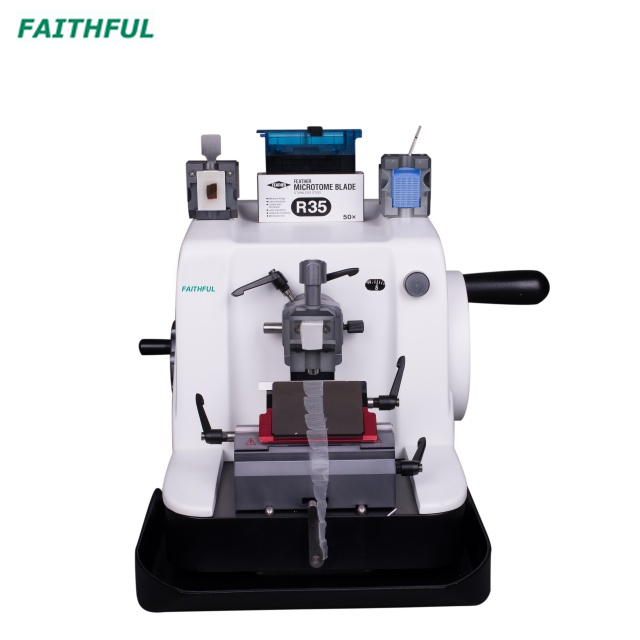

YD-315
FAITHFUL
Japan Vertical cross roller bearing mechanism for maintenance free operation.
High precision specimen feed.
The dual fail-safe control system is safe and reliable.
Adopt the special blade carrier , use the disposable blade directly .
Finger protection guard.
The microtome can be used optionally with either clockwise rotation or counter clockwise rotation for the coarse feed wheel .
Slot cover to protect the interior of the instrument from sectioning debris.
Coarse feed wheel turn with clockwise rotation or counter clockwise direction.
Japan Vertical cross roller bearing mechanism for maintenance free operation.
High precision specimen feed.
The dual fail-safe control system is safe and reliable.
Adopt the special blade carrier , use the disposable blade directly .
Finger protection guard.
The microtome can be used optionally with either clockwise rotation or counter clockwise rotation for the coarse feed wheel .
Slot cover to protect the interior of the instrument from sectioning debris.
Coarse feed wheel turn with clockwise rotation or counter clockwise direction.
Section thickness range | 0- 60μm |
Setting values | From 0-2μm in 0.5μm –increments |
From 2-10μm in 1μm-increments | |
From 10-20 μm in 2μm-increments | |
From 20-60μm in 5μm-increments | |
Horizontal specimen stroke | 28mm |
Vertical specimen strok | 60mm |
Precision error | ± 5% |
Sample orientation | 8°along the X-Y-axis, rotable 360° |
Maximum section size | 50 × 45mm |
Dimensions incl. tray (L/W/H) | 30cmX46cmX29cm |
Net weight | 30kg |
Section thickness range | 0- 60μm |
Setting values | From 0-2μm in 0.5μm –increments |
From 2-10μm in 1μm-increments | |
From 10-20 μm in 2μm-increments | |
From 20-60μm in 5μm-increments | |
Horizontal specimen stroke | 28mm |
Vertical specimen strok | 60mm |
Precision error | ± 5% |
Sample orientation | 8°along the X-Y-axis, rotable 360° |
Maximum section size | 50 × 45mm |
Dimensions incl. tray (L/W/H) | 30cmX46cmX29cm |
Net weight | 30kg |
