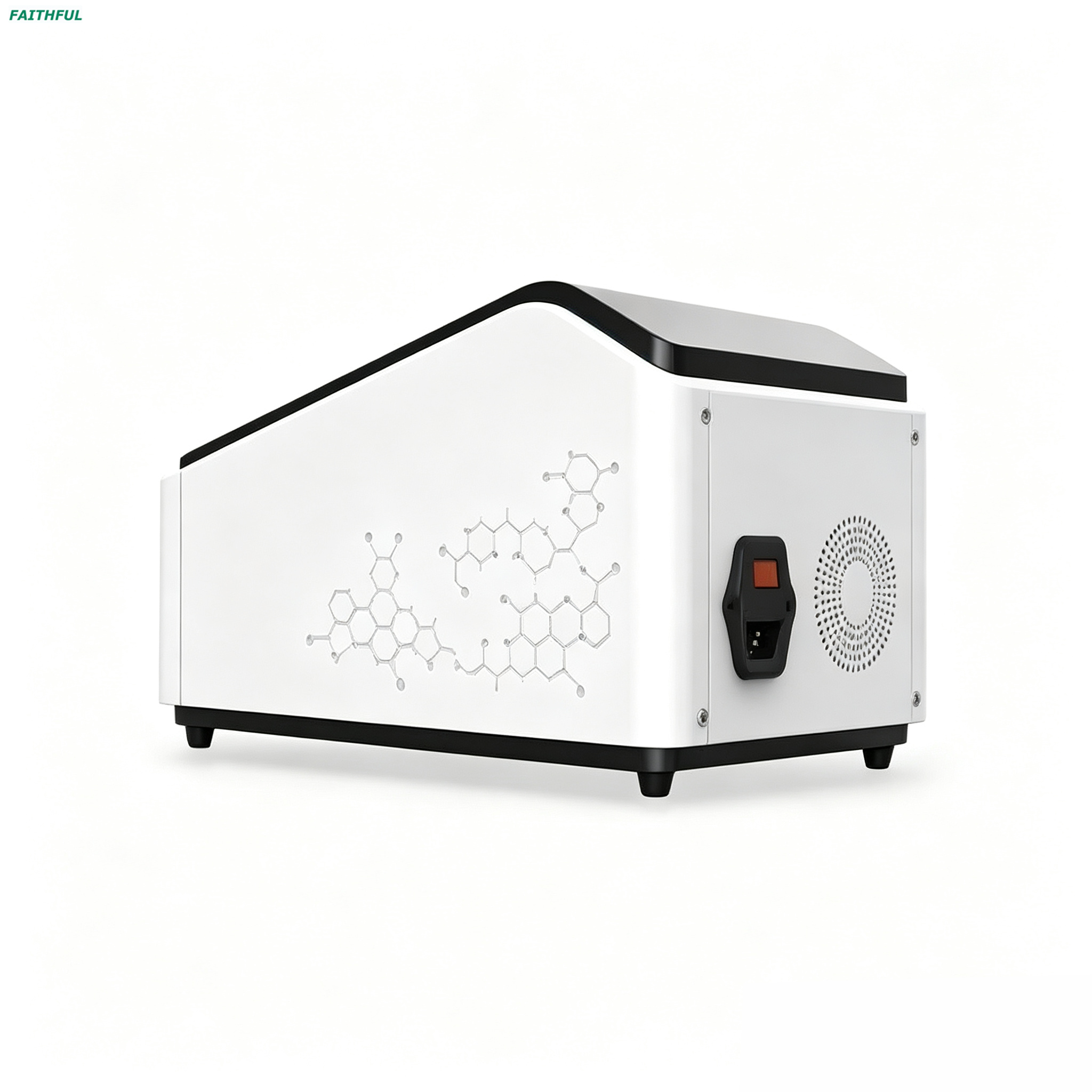

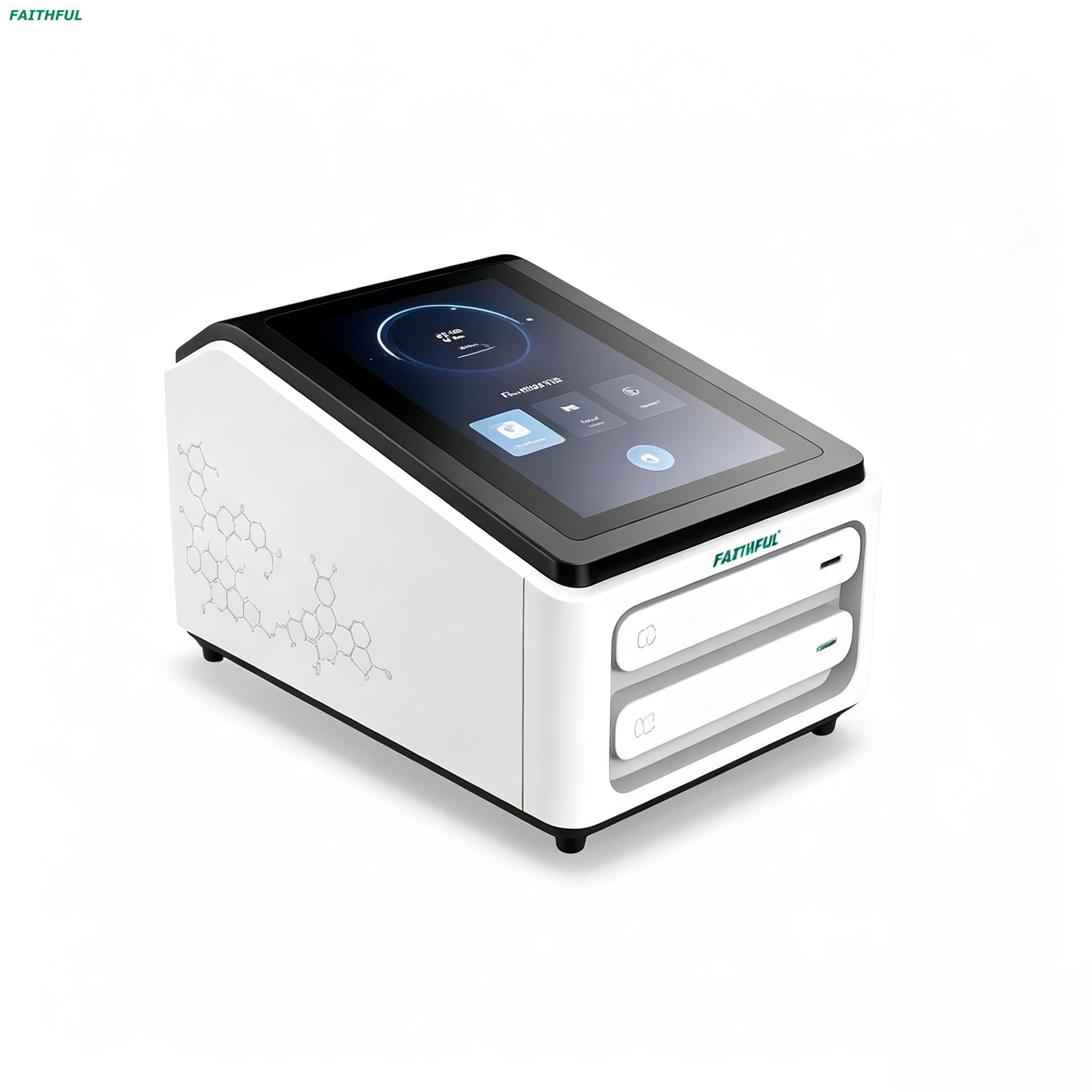

All-in-One Semi-Dry Transfer System

Availability:
Quantity:
  • FL-1000FTB

  • FAITHFUL

Features

1. The FL-1000FTB semi-dry transfer system enables rapid transfer of proteins from gels to membranes.

2. The system integrates a high-current power supply and features a dual transfer tray design, allowing two independent transfer programs to run simultaneously.

3. Each run can accommodate 1-4 mini gels or 1-2 midi gels for transfer.

4.Spring-loaded plate electrodes and a locking mechanism ensure uniform pressure and electric field distribution.

5. A 10-inch touchscreen LCD display with touch-sensitive buttons facilitates convenient setup and operation.

6. It can store 25 transfer programs for quick recall, and also allows manual input of transfer parameters.

7. It supports the configuration of constant voltage with current limit or constant current with voltage limit.

8. Equipped with high-efficiency rapid buffer and filter papers (membranes), it can complete membrane transfer within 3-7 minutes.

9. It is also compatible with traditional semi-dry consumables, enabling 30-minute semi-dry transfer runs.


Model

FL-1000FTB

Max. Output Voltage

0–25 V (1 V increments)

Max. Output Current

0–2.5 A (0.1 A increments)

Dimensions

25*28*575px

Transfer Tray Size

18*362.5px

Weight

3.5kg


Standard Configuration


NameUnitQuantity
Main UnitSET1
Transfer TrayPC2
Bubble RollerPC1
5X Semi-Dry Transfer BufferML500
Filter ClothPC20
